Hypertherm Powermax 85 Service Manual

Parts
powermax 65/85 Service Manual 7-21
Item Part number Description
228649 Kit: Powermax65 labels, CSA
228650 Kit: Powermax65 labels, CE
228651 Kit: Powermax85 labels, CE
228652 Kit: Powermax85 labels, CSA

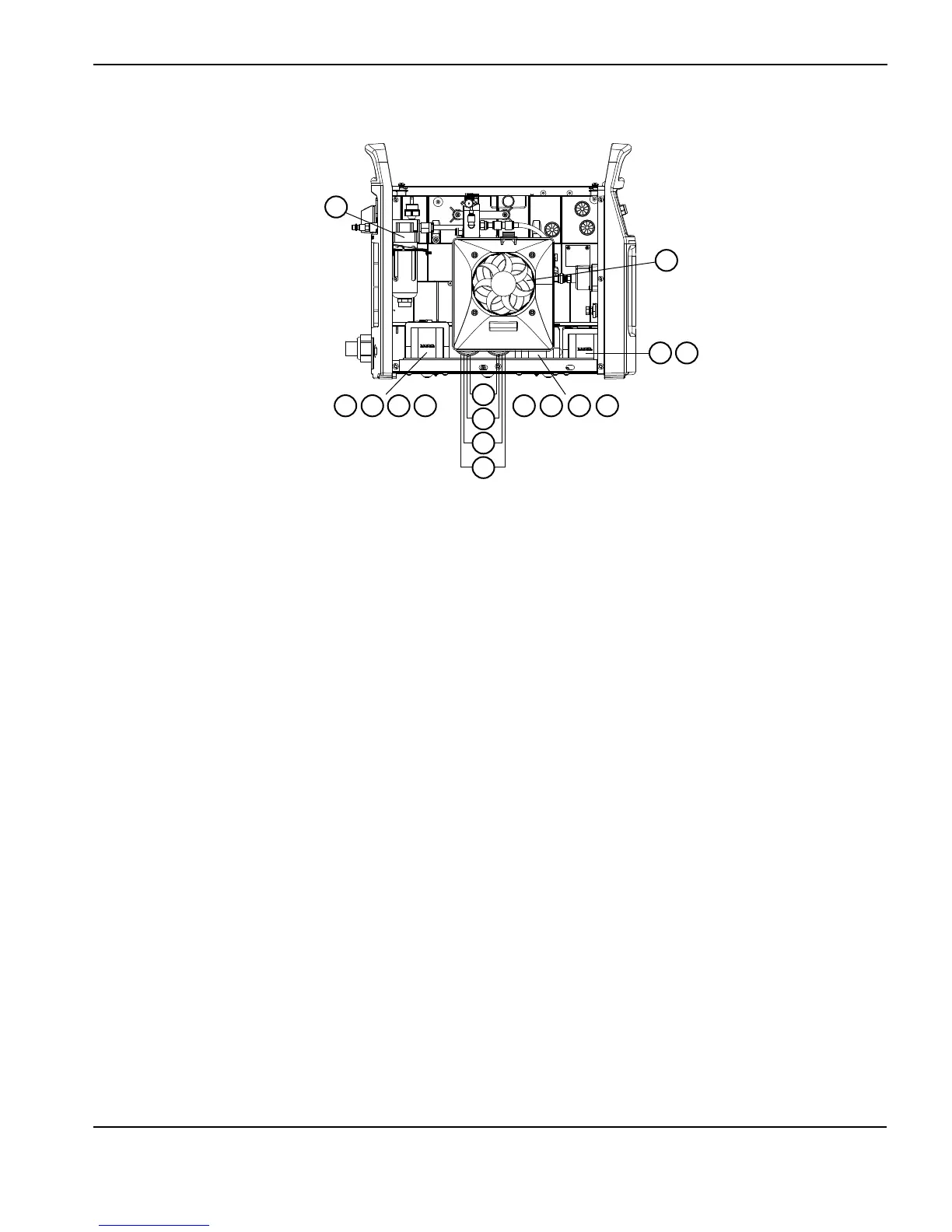

Powermax65 and Powermax85 labels
The label kits include the consumable label, appropriate safety labels, display panel label, power switch label, and side
decals.

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
