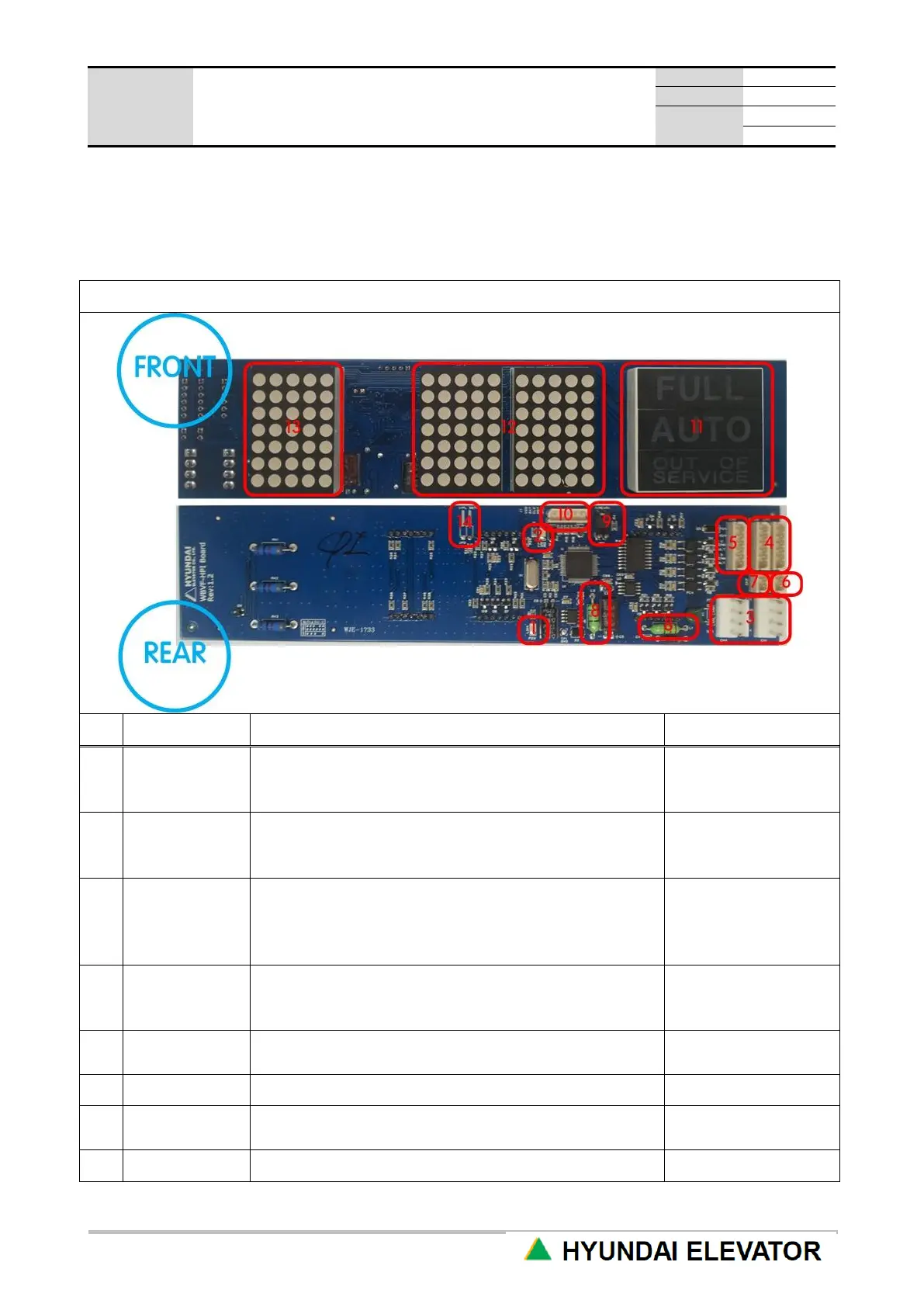

2.4 HPI / CPI Indicator
It is attached to the boarding floor (HPI) and upper part (CPI) of the Car to display elevator floor and
status.
HPI / CPI Board
No.
Name
Description
Remark
1
24V POW LED
When 24VDC is applied to the board power side,
it is turned ON.
It is OFF
when there is a
problem.
2
LIVE LED
It blinks when there is no problem with CAN COMM
It does not blink
when there is a
problem.
3
Power /
communication
connecting
part
Connect for 24VDC and CAN communication.
CH1, CH4
4
Button
connecting
part
Connect the button for Car call
of the corresponding floor.
CH2, CH2B
5
Hall chime /
hall lantern
Connect when hall chime / hall lantern is used.
CH3
10
Program input
Connect and apply for program UPDATE.
J1
6
PARKING
input part
Connect cable at parking floor.
CH6
7
FMR input part
Connect to firefighter call (=FMR) switch.
CH7
