Hyundai Elevator WBVF - Page 88

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
88 / 98

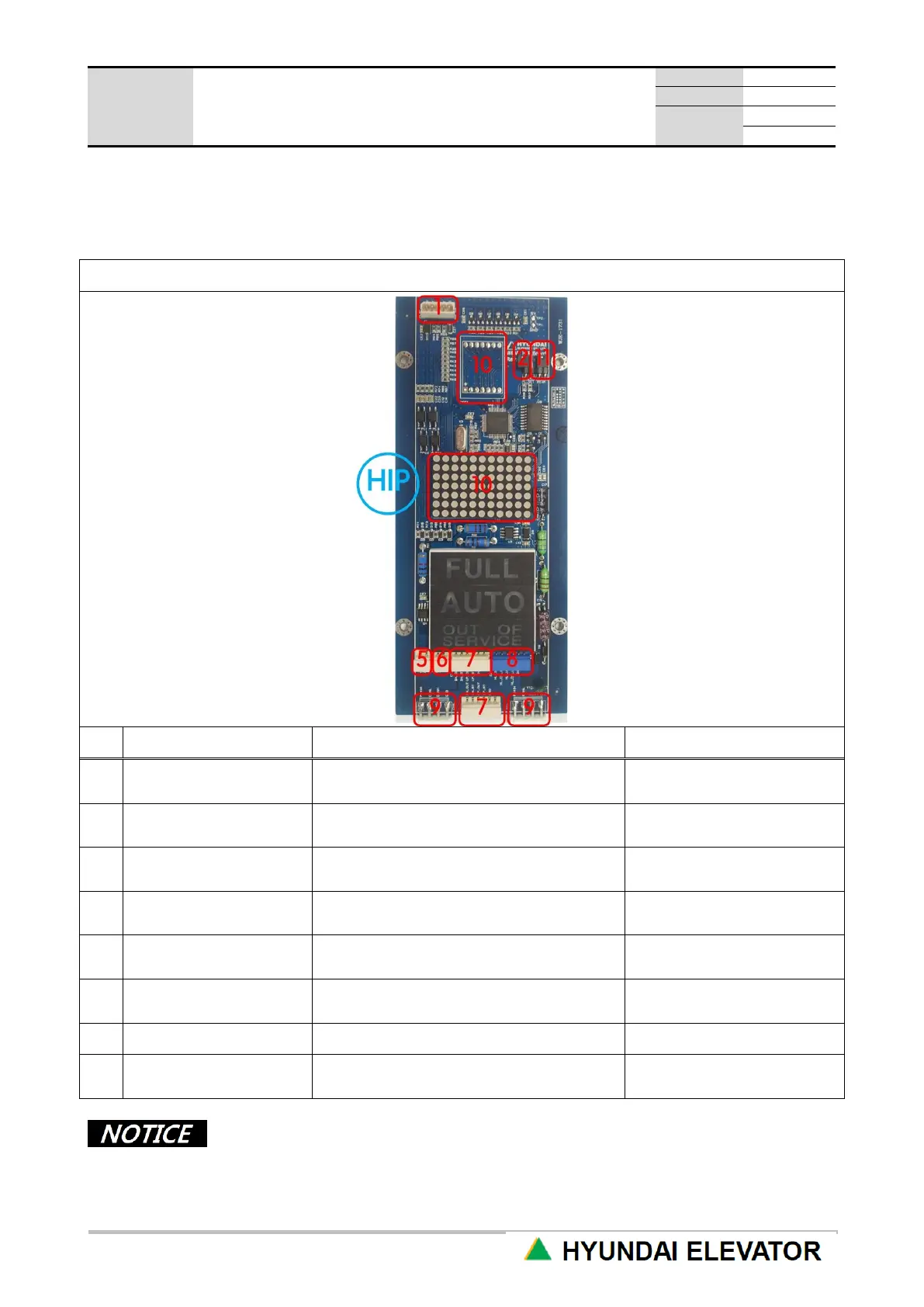

3. Boarding Hall Indicator PC Board
3.1 HIP PC Board
Indicator Board
No.
Name
Description
Remark
2
FL_SET JUMPER
JUMP during the setting of the
corresponding floor.
The currently set floor is
displayed at JUMP.
11
REAR JUMPER
When JUMP is reset, it operates as
REAR (=handicap) HIP.
In normal times, JUMP is
set.
7
Button connection part
It connects the button for the CAR call of
the corresponding floor.
CH2, CH2B
9
Power / communication
connection part
It connects for 24VDC and CAN
communication.
CH1, CH4
8
Hall chime / Hall lantern
It is connected when hall chime / hall
lantern is used.
CH5 or CH3
1
Program input
It is connected and applied during the
program UPDATE.
J1
5
PARKING input part
It connects the cable at the parking floor.
CH6
6
FMR input part
It connects to the firefighter call (=FMR)
switch.
CH7
Floor setting has the corresponding floor input at ship-out before delivering to the
site.
