Hyundai Elevator WBVF - Page 90

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
90 / 98

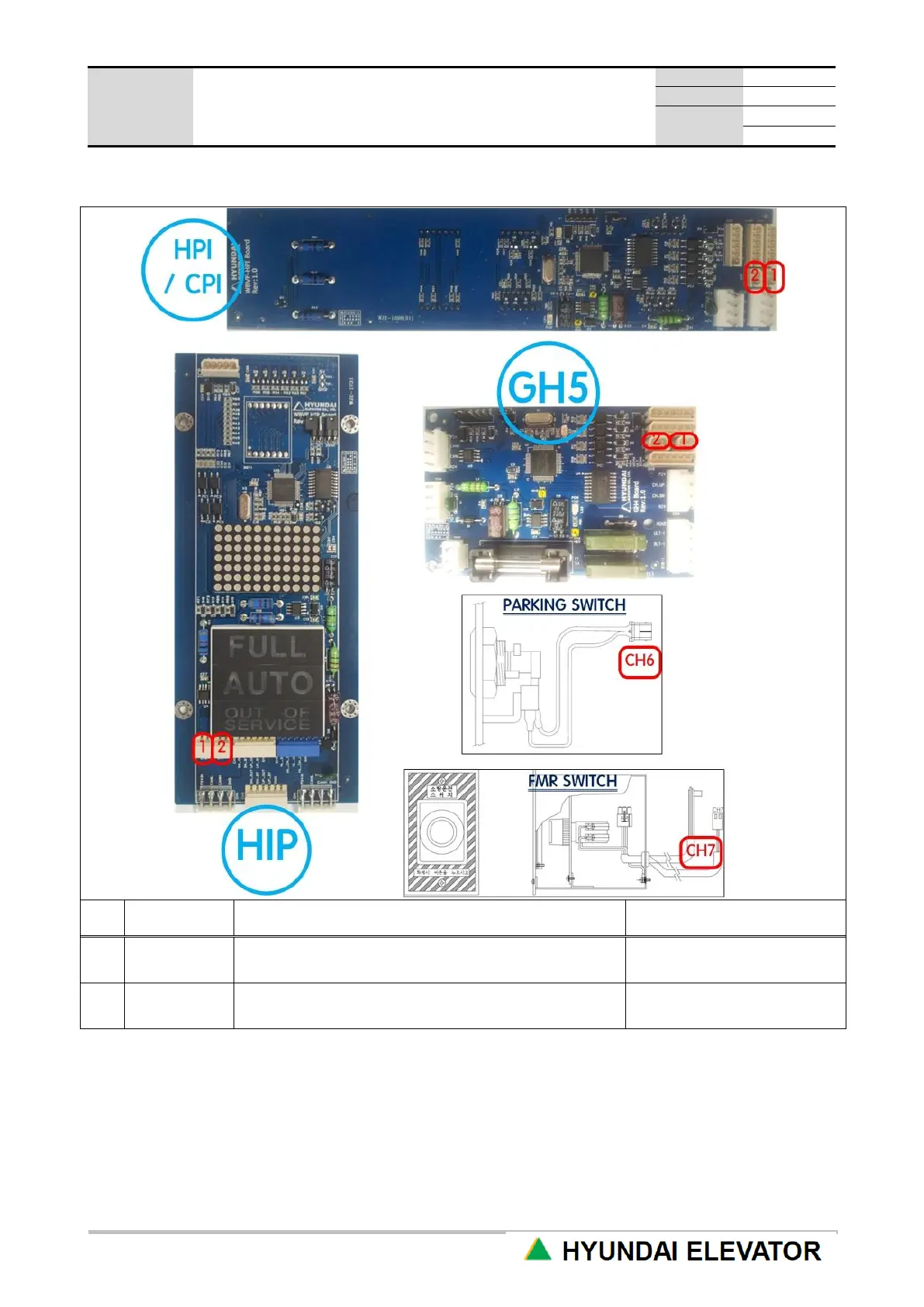

3.3 HIP/HPI/GH5 FIRE/PARKING SW Wiring
No.
Name
Description
Remark
1
CH6
PARKING SWITCH connecting part
Connect to Parking switch
connector
2
CH7
FMR(=FIRE MAN RETURN) SWITCH connecting part
Connect to FMR switch
connector
