5.1 External Dimensions
5-9
5. External Dimensions

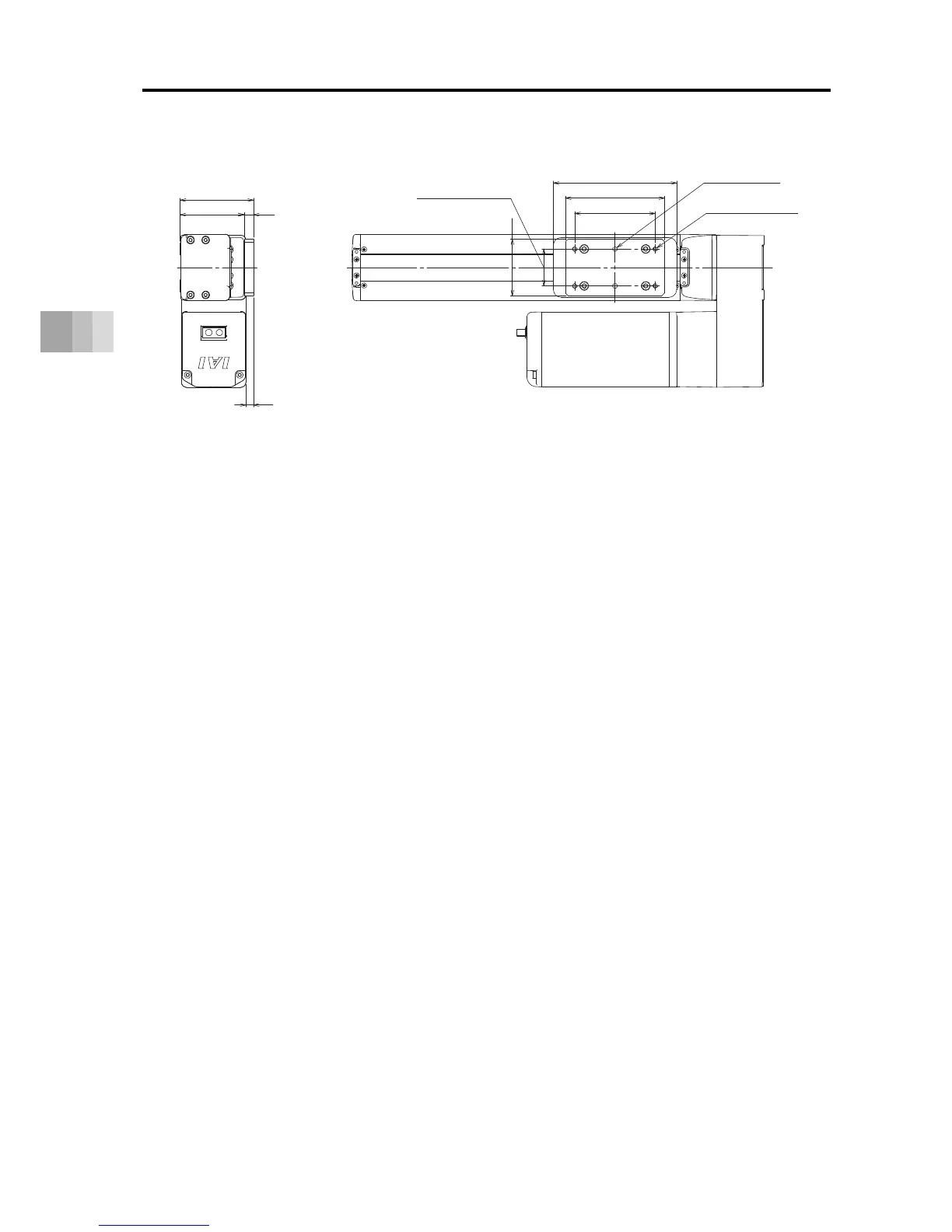

Slider Spacer (Optional Model: SS)
(77.5)
67.5 10
(8)
60
85
105
130
39 (±0.02 between of φ5H7)
(Slider Cover length)
2-φ5 H7 0 Depth 8
+0.012
Through 4-M5
(Bolt screwing Depth 9mm)
