4.5 Greasing method
4-10
4. Maintenance and Inspection

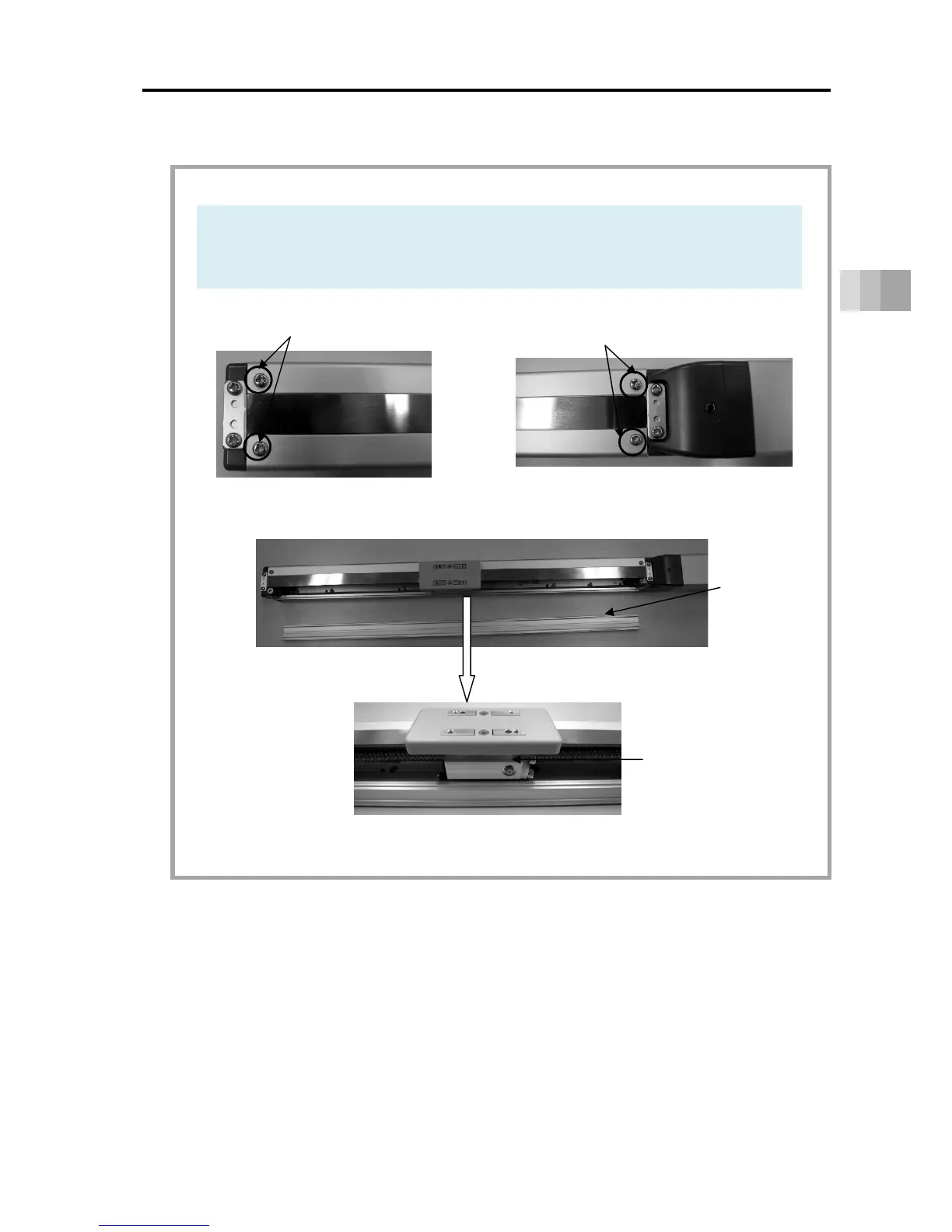

[2] Greasing method: Ball screw/guide (supply to both through grease fitting)
Greasing method
1) Remove the screw and detach the side cover on either side, right or left.
The grease nipple will appear.
(Note) When the side cover on the other side has been detached, the other grease
nipple also appears.
Motor Side
Opposite Side
Side Cover
Attachment Screws
Grease Nipple
There is one
on the other side.
After removal of the side cover on either side
Side Cover
Side Cover
Attachment Screws
To Next Page
