1.3 Options
1-31
1. Specifications
1.3 Options
With brake (Model Code: B)
This is used to prevent the slider from moving during power outages or when the servo is OFF.
It can also be used to prevent the slider from falling when mounted vertically.
Cable Exit Direction Changed (Model Code: CJT, CJR, CJL, CJB and CJO)
The orientation of the motor / encoder cable to be installed on the actuator unit can be changed to
top/bottom/right/left.
High Precision Specifications (Model Code: HPR)
Standard positioning repeatability is ± 0.01mm. When this option is specified, positioning
repeatability will become ± 0.005mm. It should be available to order only for lead length 20mm or
less.
Motor Reversed Direction (Model Code: ML, MR)
It is the code to indicate the direction of motor reversed when selecting the motor reversed type.
ML shows reversed to left and MR to right.
Reversed-home Specification (Model Code: NM)
The standard home position is on the motor side.
However, the opposite side specification is selected if the home position direction is reversed in
accordance with equipment layout or assembly direction.

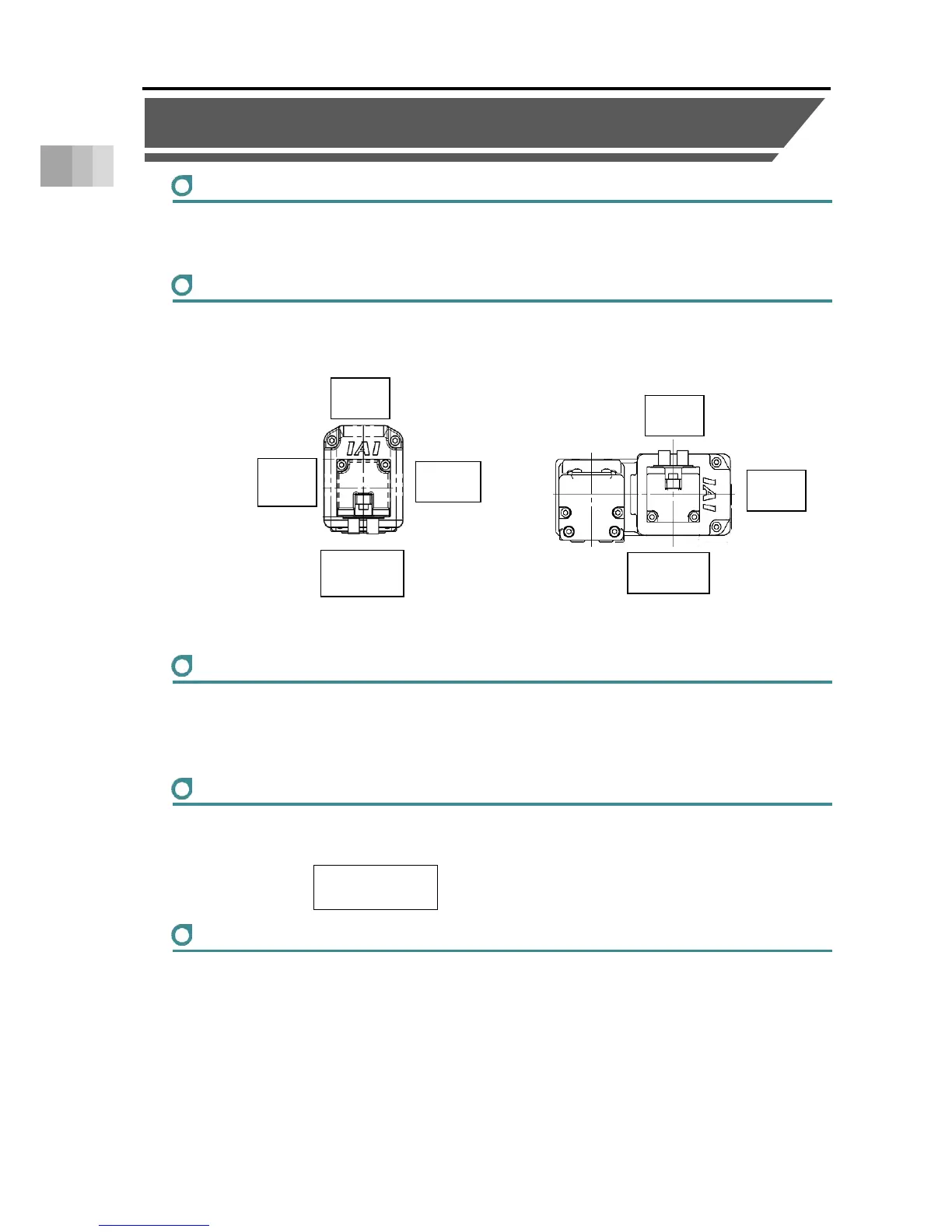

CJT
Top Side
Figure viewed
from motor side
CJB
Bottom Side
CJL
Left Side
CJR
Right Side
Motor Straight Type
Motor Reversing Type
CJT
Top Side
CJB
Bottom Side
CJO
Out Side
R
(RIGHT)
L
(LEFT)
Actuator
To Next Page
