2.3 How to Install
2-7
2. Installation
Installation surface
● The body mounting surface should be a machined surface or a plane with similar accuracy,
with flatness within 0.05mm/m.
● The mounting frame should have a structure rigid enough to prevent the generation
of vibration, etc.
● Also consider enough space necessary for maintenance work such as actuator replacement
and inspection.
● The bottom surface and both side surfaces of the body base serve as the reference surfaces
for slider running accuracy.
Use these surfaces as the reference surfaces for mounting when running accuracy is required.

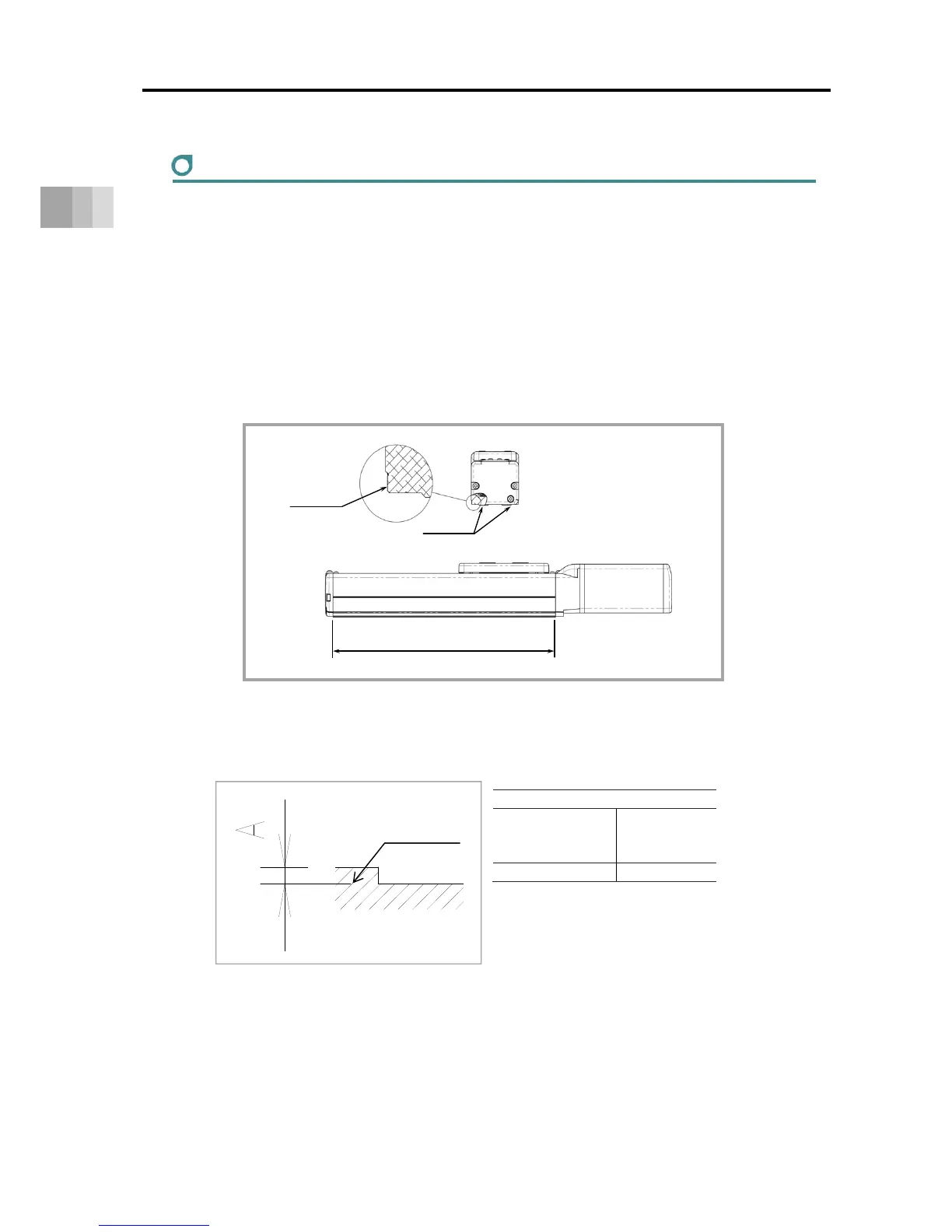

When mounting using the side reference surface, machine the installation surface according to
the figure below.
A dimension
SA4
SA6
SA7
2 to 4mm
SA8 3 to 5mm
R0.3 or less
基準⾯
基準⾯
基準⾯有効範囲
Reference
surfaces
Reference
surfaces
Reference surfaces effective range
