2.3 How to Install
2-5
2. Installation
2.3 How to Install

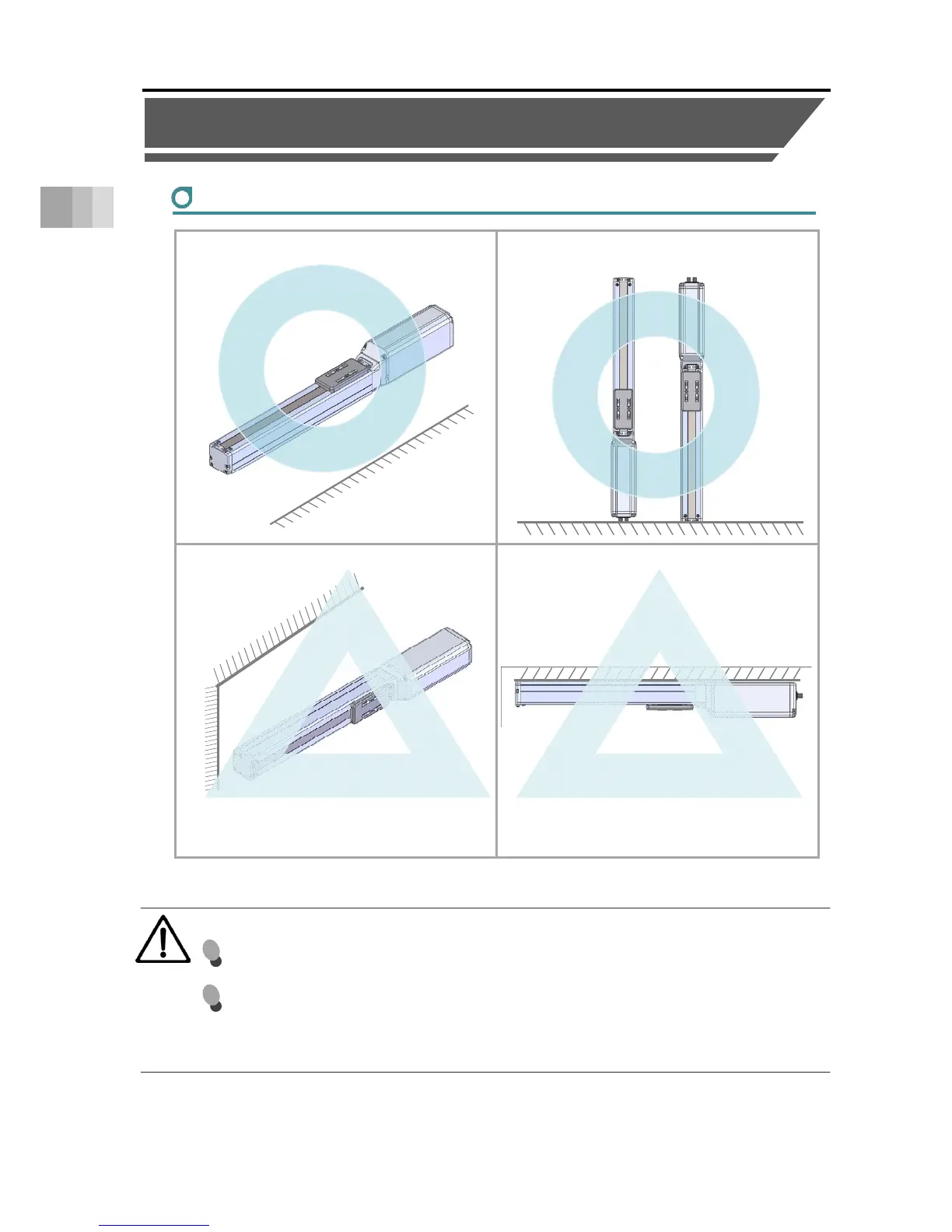

Installation Orientation
Type: RCS4 –SA4/SA6/SA7/SA8
Horizontal installation Vertical installation
Sideway installation Ceiling mount installation
Caution
When installing the unit vertically, keep the motor on top to the greatest extent
possible.
If the motor is installed on the bottom, the grease may separate due to long-term disuse,
causing the base oil to flow into the motor part. The controller and motor/encoder may
break down due to the entry of the base oil.
