2.3 How to Install
2-16
2. Installation

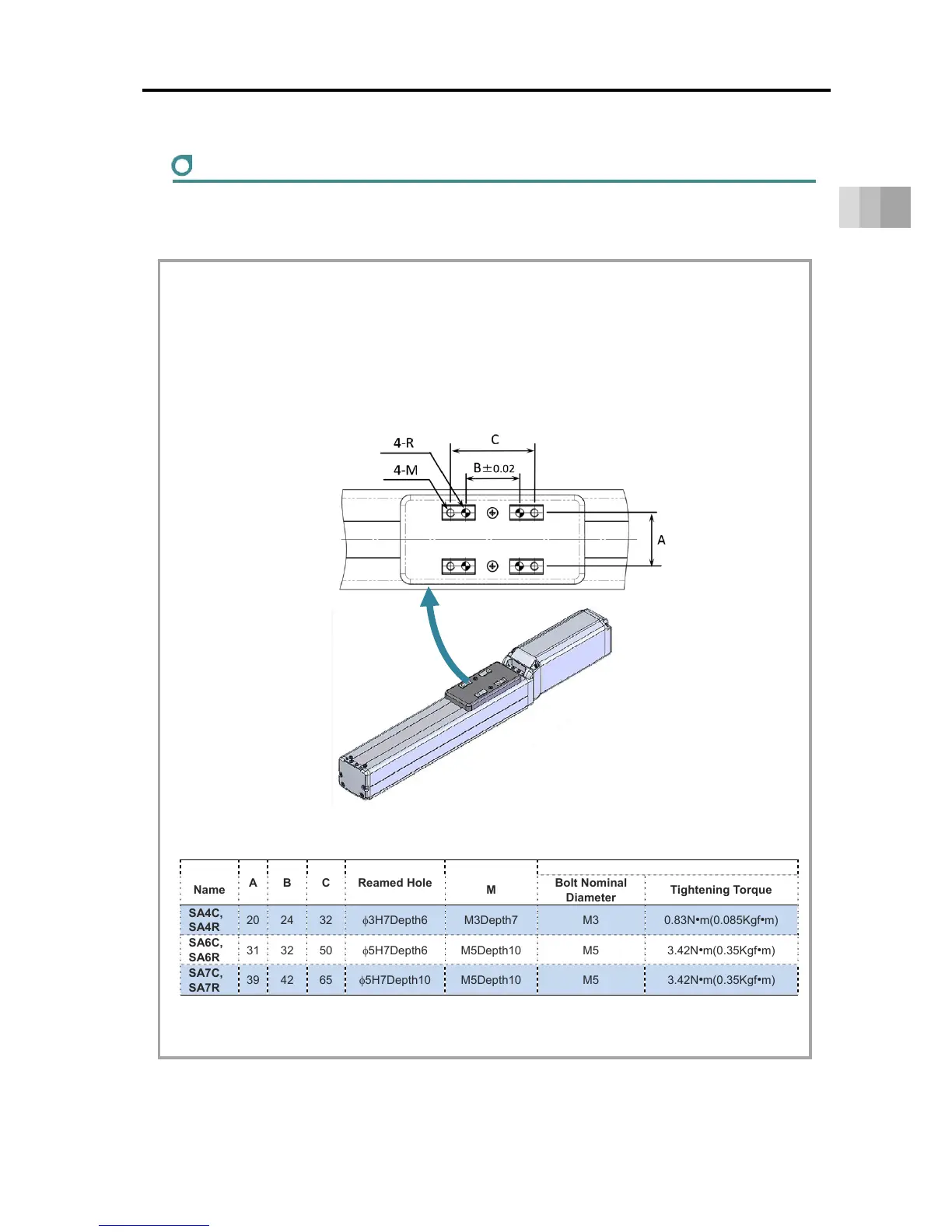

Mounting transported objects
[For SA4C/R, SA6C/R, SA7C/R]
● Use the tapped mounting holes on the top surface of the slider to fix transported objects.
● There are 4 reamed holes on the top surface of the slider.
Use these reamed holes if repeated attaching and detaching is required.
● If fine-tuning of perpendicularity, etc. is required, use one of the reamed holes
for this adjustment.
● Refer to the figure below for the screw-in depth and reamed hole depth.
Model
Name
A B C Reamed Hole
Tapped Hole
M
Mounting Bolt
Bolt Nominal
Diameter
Tightening Torque
SA4C,
SA4R
20 24 32 φ3H7Depth6 M3Depth7 M3 0.83N•m(0.085Kgf•m)
SA6C,
SA6R
31 32 50 φ5H7Depth6 M5Depth10 M5 3.42N
•m(0.35Kgf•m)
SA7C,
SA7R
39 42 65 φ5H7Depth10 M5Depth10 M5 3.42N•m(0.35Kgf•m)
Pitch tolerance from reamer ± 0.02
