4.6 How to replace components
4-24
4. Maintenance and Inspection
Motor Replacement
[Motor Straight Type]

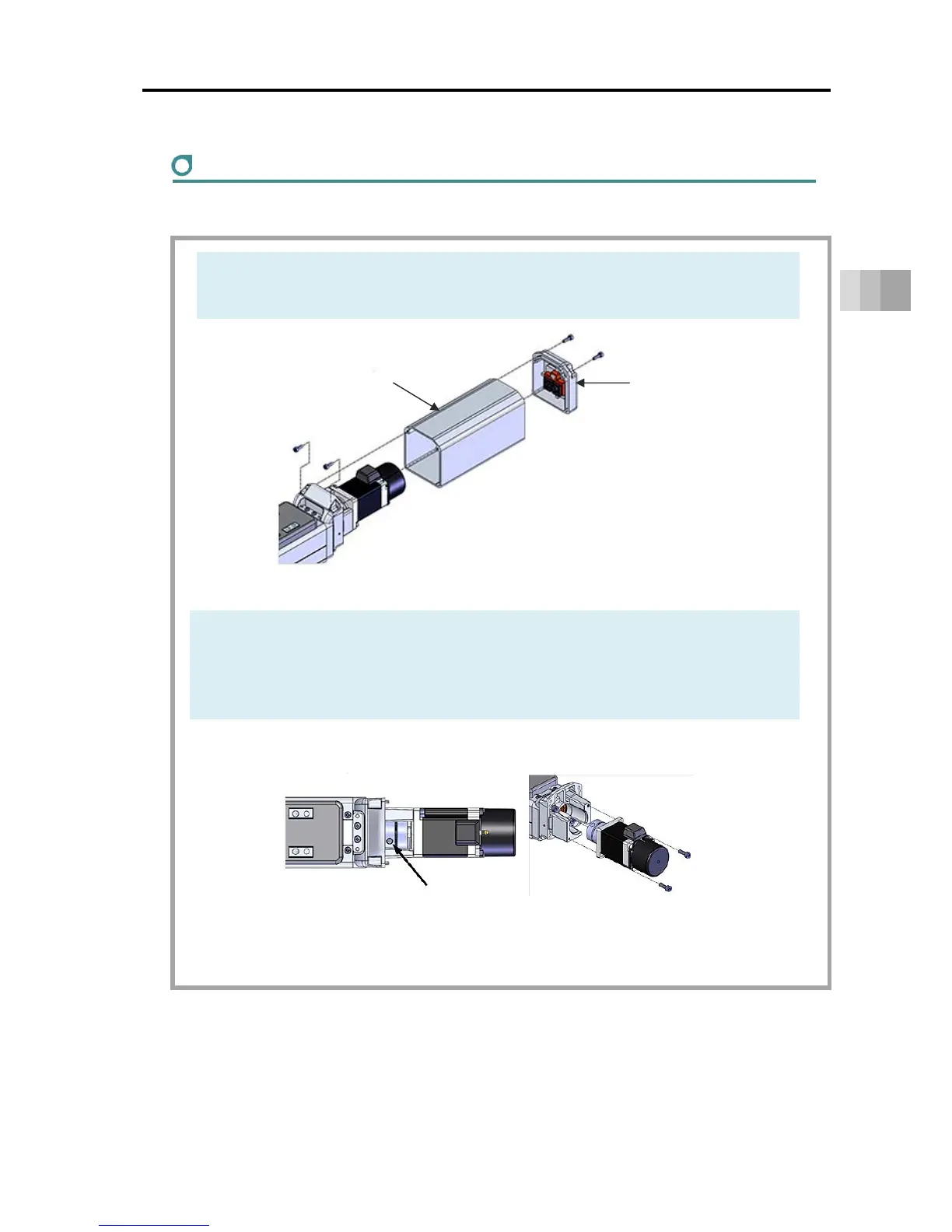

1) Detach the motor cover affixing screws.
2) Take off the end cover and motor cover.
3) Move the slider to the position where the coupling screw on the actuator
side can be seen.
4) Loosen the coupling screw, detach the motor affixing screws and take off
the motor.
End Cover Motor Cover
Coupling Screw
