IAI ROBO Cylinder RCS4- SA4C User Manual

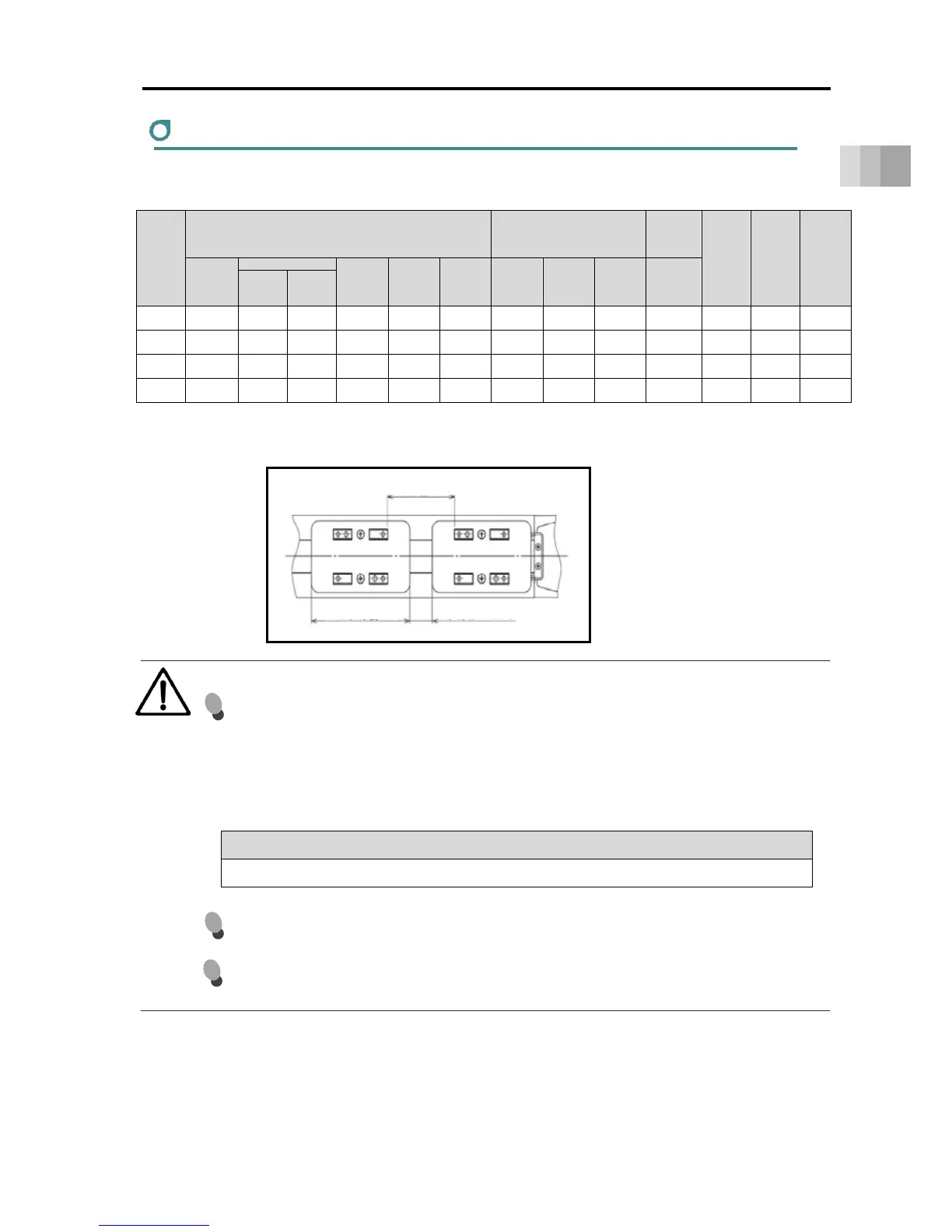

1.2 Specifications
1-28
1. Specifications
Double Slider (Option)
[Table for Double Slider Type]
Name
of Type
Allowable dynamic moment Allowable static moment
Overhang
load
length
(mm)
Slider
Mass
(kg)
Slider
length
(mm)
Min.
Effective
Stroke
for
Double
Slider
(mm)
Standard
rated life
(km)
Slider Span (mm)
Ma
direction
(N•m)
Mb
direction
(N•m)
Mc
direction
(N•m)
Ma
direction
(N•m)
Mb
direction
(N•m)
Mc
direction
(N•m)
Ma
direction
Mb•Mc
direction
Actual
Slider
Span
Slider
Cover
Span
SA4 5000 60 24 44.6 63.6 15.7 143 204 50.5 420 1 76 50
SA6 5000 90 40 106 152 40 546 779 205 630 2 110 50
SA7 5000 70 20 285 285 145 900 900 458 810 2 130 50
SA8 5000 120 35 565 565 237 1980 1980 828 1200 2.5 165 50
【Figure of Double Slider】
Caution
If double slider (option) is ordered, consider the available stroke should be the value that
the length of slider and slider cover span are subtracted from the stroke shown in the
model code. Therefore, add the following number to the necessary stroke when indicate
the stroke at order. Also, make sure that the “necessary stroke” should be the minimum
effective stroke of the double slider type or above.
Stroke Length to Order (Nominal Stroke)
“Necessary Stroke” + “Slider Cover Span” + “Slider Length” or more
The payload of the double slider should consider the weight of the slider itself subtracted
from the performance in the specification for the maximum.
When you consider the maximum velocity, consider the stroke length to order (nominal
stroke) as the value of stroke in [Stroke and Max Speed].
Slider length
Slider Cover Span
Actual Slider S
p
an
