4.6 How to replace components
4-13
4. Maintenance and Inspection
4.6 How to replace components
Stainless steel sheet replacement/adjustment
Preparation
1) Items required for replacing the stainless steel sheet
• Replacement stainless steel sheet
• Phillips screwdriver
• Scale

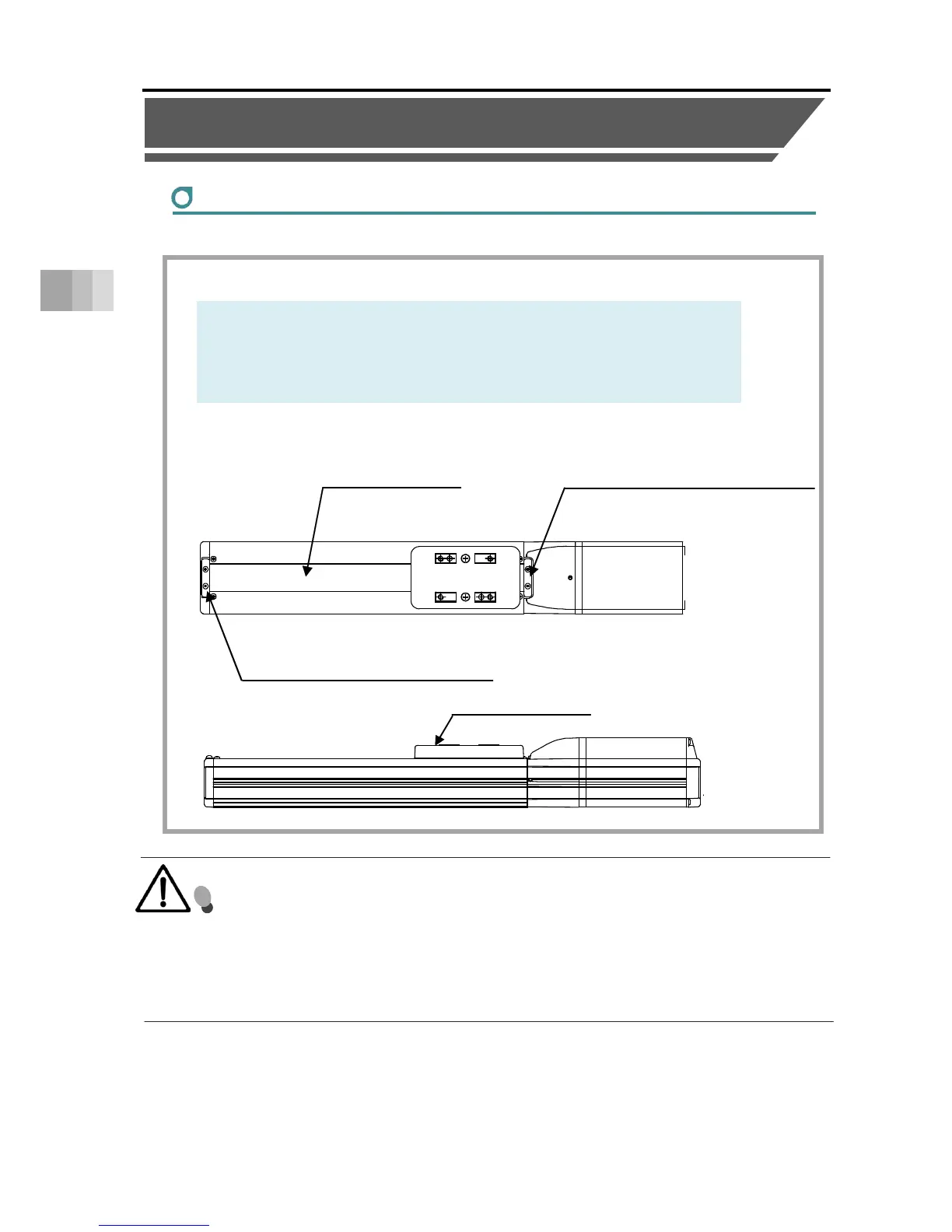

Names of the Parts
Caution
Degradation and wear-out of the stainless steel sheet relies on its tension of attachment.
If the stainless steel sheet is pulled with a huge force and the gap between the sheet and
the slider cover is large, there is a risk of metal fatigue.
On the other hand, if the tensile strength is too low, the stainless steel sheet would
interfere with the back side of the slider cover and make dust to be generated.
Stainless Sheet Retainer Plate
Stainless Sheet Retainer Plate
Stainless Steel Sheet
Slider Cove
