4.6 How to replace components
4-14
4. Maintenance and Inspection
Have a replacement and tuning in (1) Procedure 1 for SA7, SA8.
For SA4, SA6 have a replacement and tuning in either (1) Procedure 1 or (2) Procedure 2.

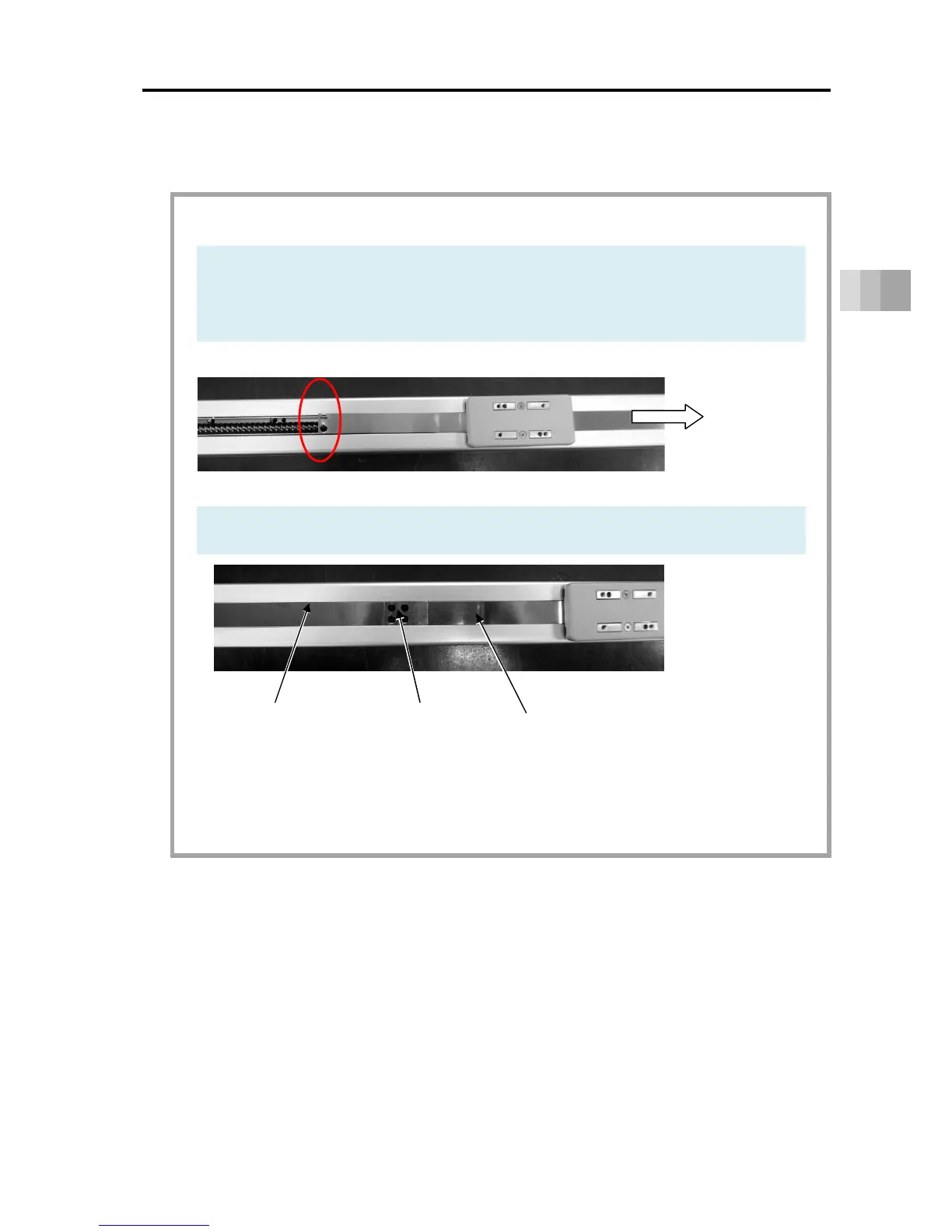

Stainless steel sheet replacement method Procedure 1
1) Remove the screws (4 places) holding the stainless steel sheet and stainless steel
sheet retainer plates (2 pieces) with using a Phillips screwdriver.
2) Pull the old stainless steel sheet till in front of the slider.
Make sure not to pull it out completely off the slider.
3) Join a new stainless steel sheet to the old one with using cellophane tape.
Pull it till in front
of the slider.
In front of Slider
Join with
cellophane tape
Old stainless
steel sheet
New stainless
steel sheet
