4.6 How to replace components
4-15
4. Maintenance and Inspection

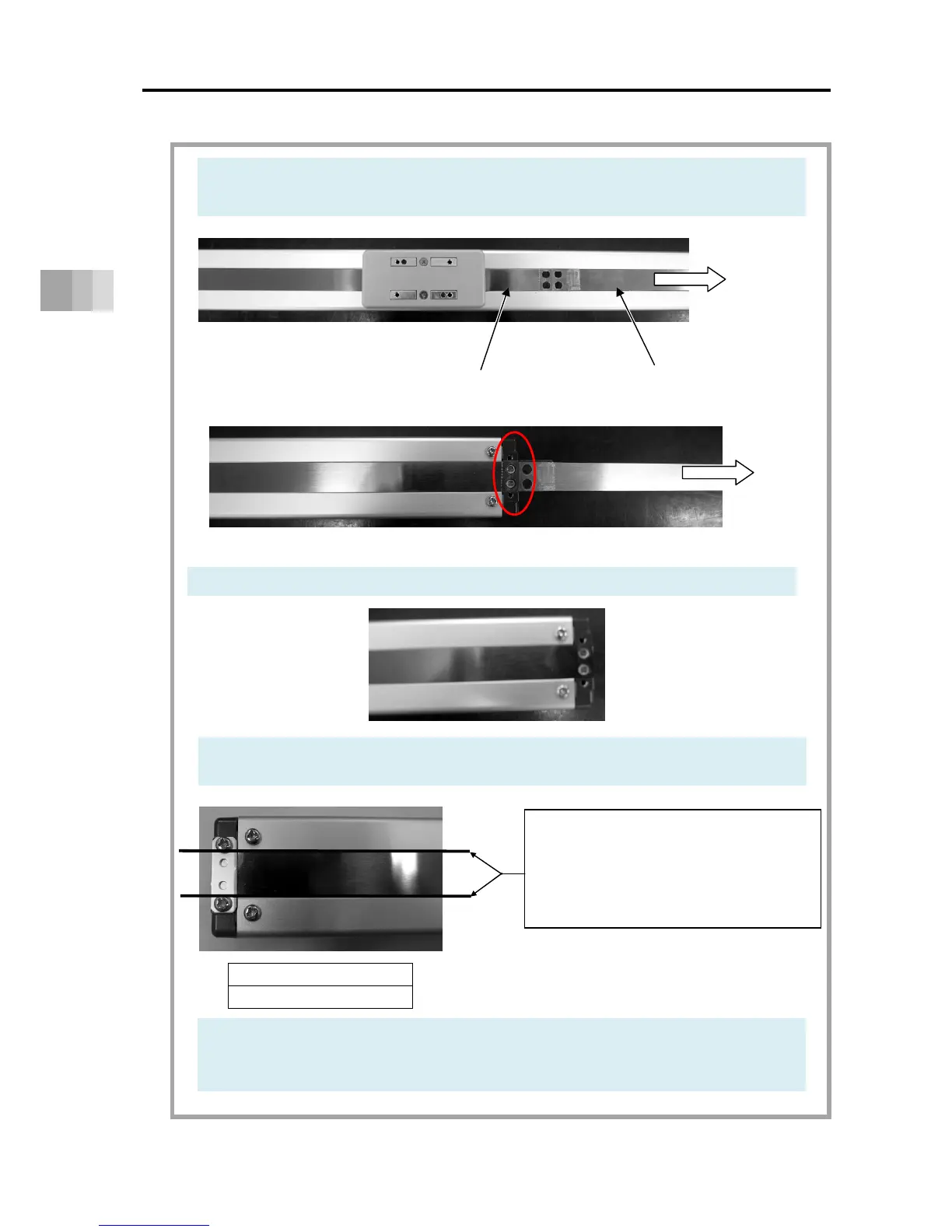

4) Pull the old stainless steel sheet so the new one goes through below the slider.
Pull it till the new stainless steel sheet comes to the edge of the actuator.
5) Remove the old stainless steel sheet.
6) Fix the two stainless steel sheet retainer plates using the screws (four locations).
Use a Phillips screwdriver to attach it.
Tightening Torque
41.4N•cm
7) After the stainless steel sheet retainer plates have been fixed, move the slider from
one side to the other side (full stroke) with your hand to check that there is no rise or
slackness in the stainless steel sheet. If there is any problem, repeat from step 6).
Pull till
the edge
Edge
Pull
Old stainless
steel sheet
New stainless
steel sheet
There are two grooves for stainless steel
sheet attachment guides. Align so that
the stainless steel sheet is positioned at
the center between the two grooves.
Attach the stainless steel sheet so that it
is not bent.
