4.6 How to replace components
4-16
4. Maintenance and Inspection

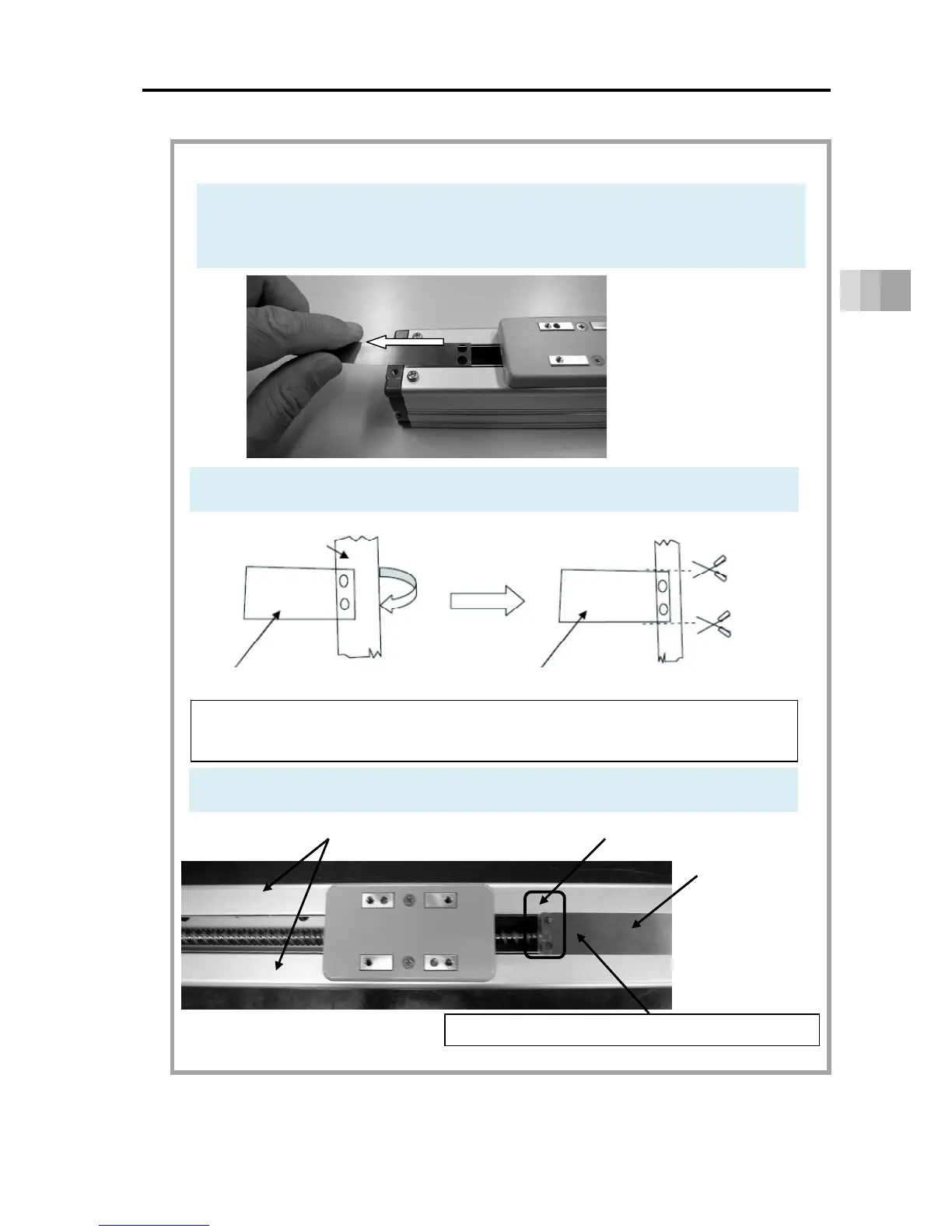

Stainless steel sheet replacement method Procedure 2
1) Remove the screws (4 places) holding the stainless steel sheet and stainless steel
sheet retainer plates (2 pieces) with using a Phillips screwdriver.
2) Pull out the old stainless steel sheet.
3) Attach adhesive tape on one side of new stainless steel sheet.
4) Put the stainless steel sheet with an adhesive tape on the side cover.
Attach adhesive tape so that it wraps around the end side of the stainless steel sheet.
At that time, arrange it so that about 3mm of the end of the tape projects from the
stainless steel sheet. Cut any tape excess.
dhesive Tape
Stainless Steel Sheet Stainless Steel Sheet
Side Cover
Stainless Steel Sheet
Sheet end with adhesive tape
Take care not to drop the stainless steel sheet into the hole.
