1.3 Options
1-33
1. Specifications

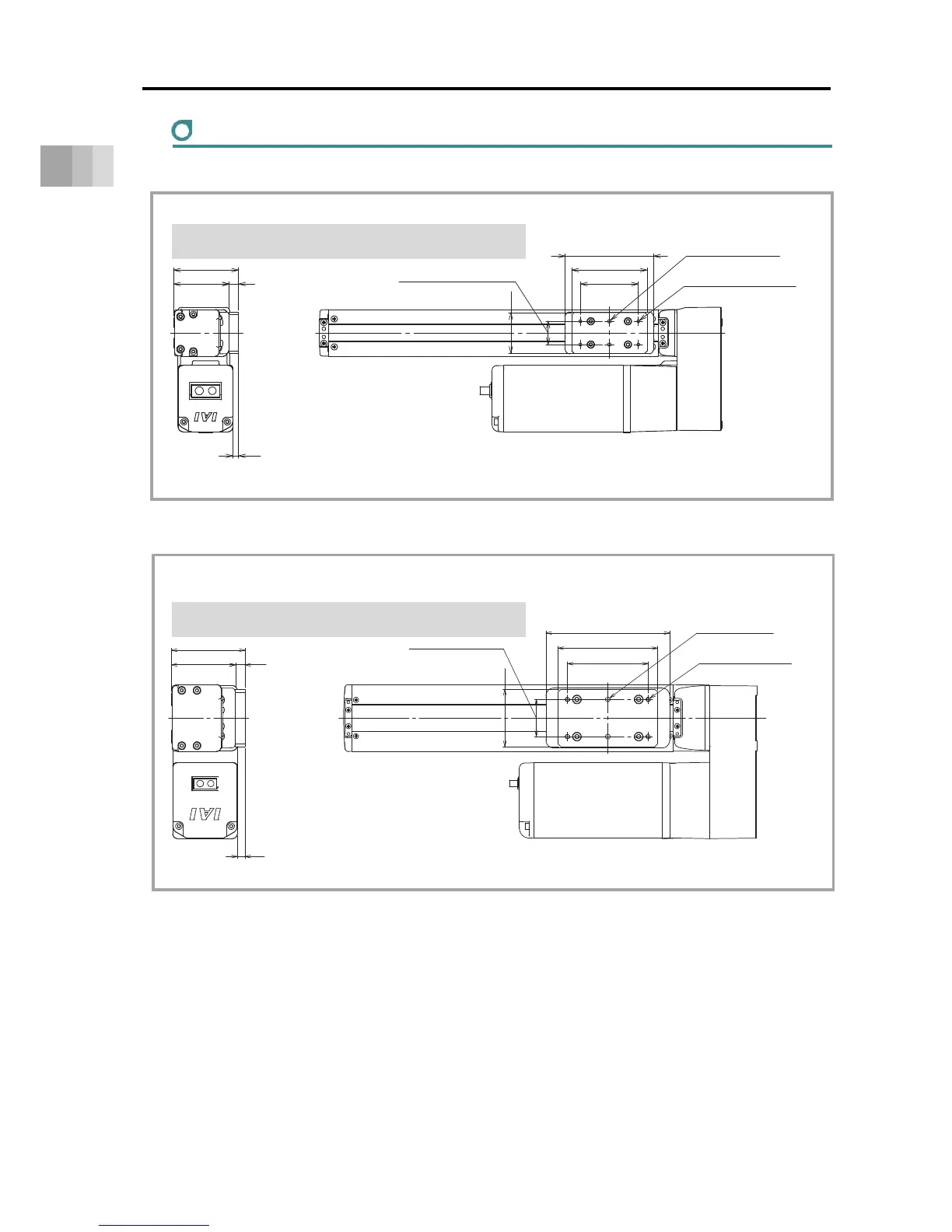

Slider spacer (Model Code: SS)
It is a spacer to set the top of the slider higher than the top of the motor cover.
2-φ3 H7 0 Depth 5
50
(Slider Cover length)
35
76
20 (±0.02 between of φ3H7)
65
+0.0 10
Through 4-M3
(Bolt screwing Depth 7mm)
8
(56)
48
(5)
SA4R
Model number of single product: RCS4-SS-SA4
(77.5)
67.5 10
(8)
60
85
105
130
39 (±0.02 between of φ5H7)
(Slider Cover length)
2-φ5 H7 0 Depth 8
+0.012
Through 4-M5
(Bolt screwing Depth 9mm)
SA7R
Model number of single product: RCS4-SS-SA7
