2.3 How to Install
2-17
2. Installation
[For SA8C/R]
● Use the tapped mounting holes on the top surface of the slider to fix transported objects.
● There are 2 reamed holes on the top surface of the slider.
Use these reamed holes if repeated attaching and detaching is required.
● If fine-tuning of perpendicularity, etc. is required, use one of the reamed holes
for this adjustment.

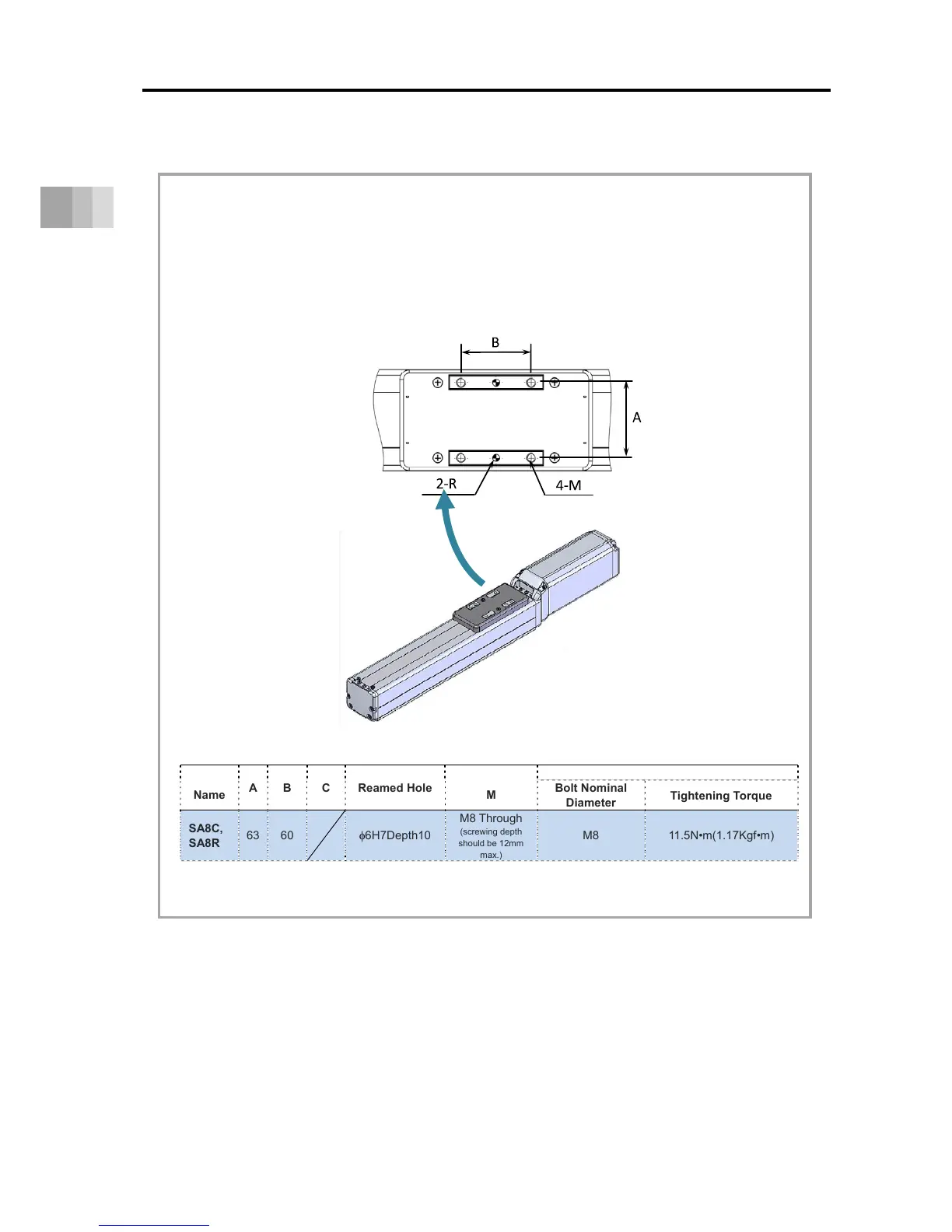

● Refer to the figure below for the screw-in depth and reamed hole depth.
Model
Name
A B C Reamed Hole
Tapped Hole
M
Mounting Bolt
Bolt Nominal
Diameter
Tightening Torque
SA8C,
SA8R
63 60 φ6H7Depth10
M8 Through
(screwing depth
should be 12mm
max.)
M8 11.5N•m(1.17Kgf•m)
Pitch tolerance from reamer ± 0.02
