Appendix J Installing The Power Stacker
ATTENTION
The paper stacker assembly mounts to the rear upper frame cross-
member and the cabinet floor. It is a snug fit. During installation, take
care to avoid scratching painted surfaces or damaging the stacker.
9.
Loosen one turn—DO NOT REMOVE—the Torx T-10 screws securing
the vertical rails to the stacker base. Each rail is secured by two screws.
(See Figure 74.)
Legend:
1. Screw, 6-32x1/4, Torx T-10: two at bottom of each rail
2. Vertical Rail
3. Stacker Base

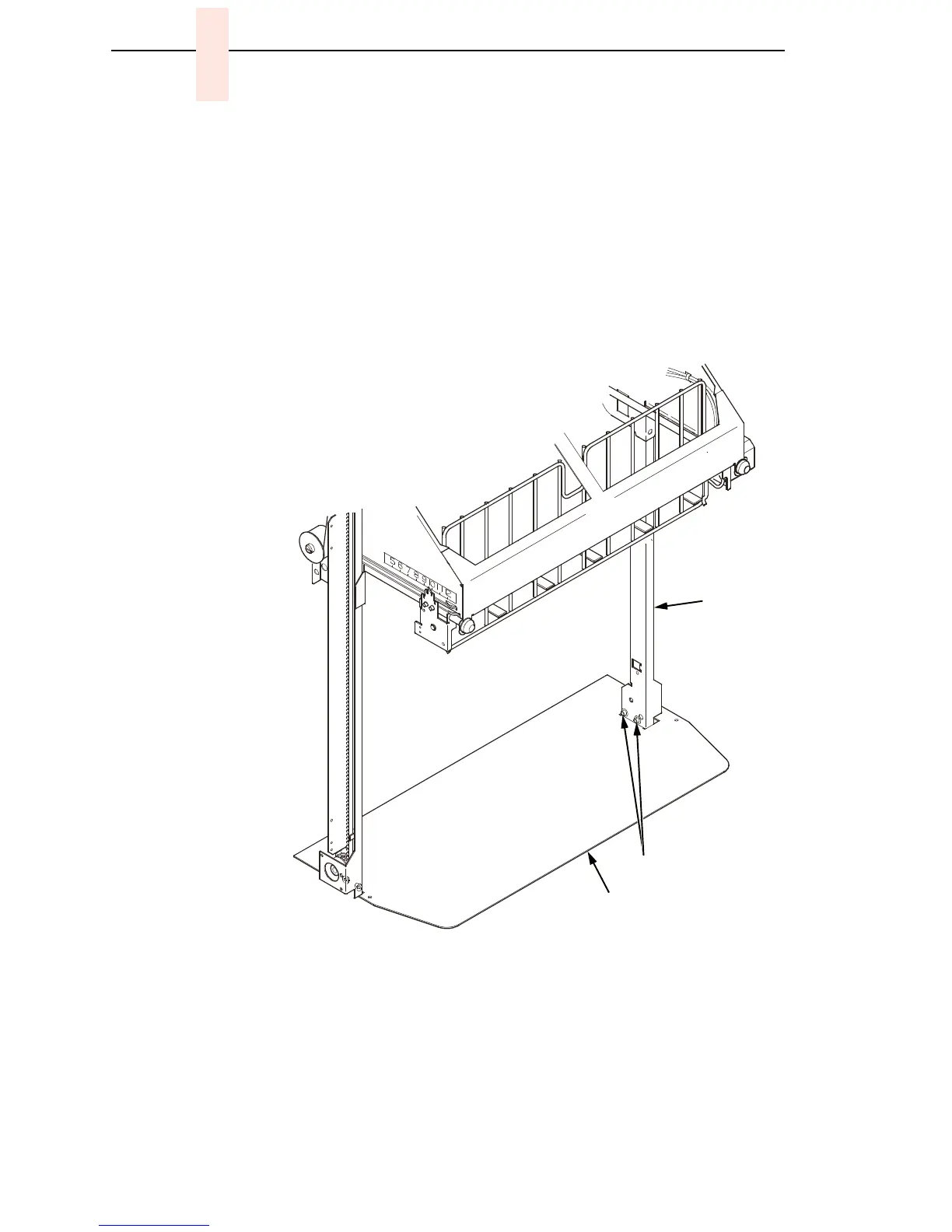

Figure 74. Loosening the Lower Screws in the Vertical Rails
2
3
1
