IBM N Series Hardware Guide

Chapter 9. MetroCluster expansion cabling 129

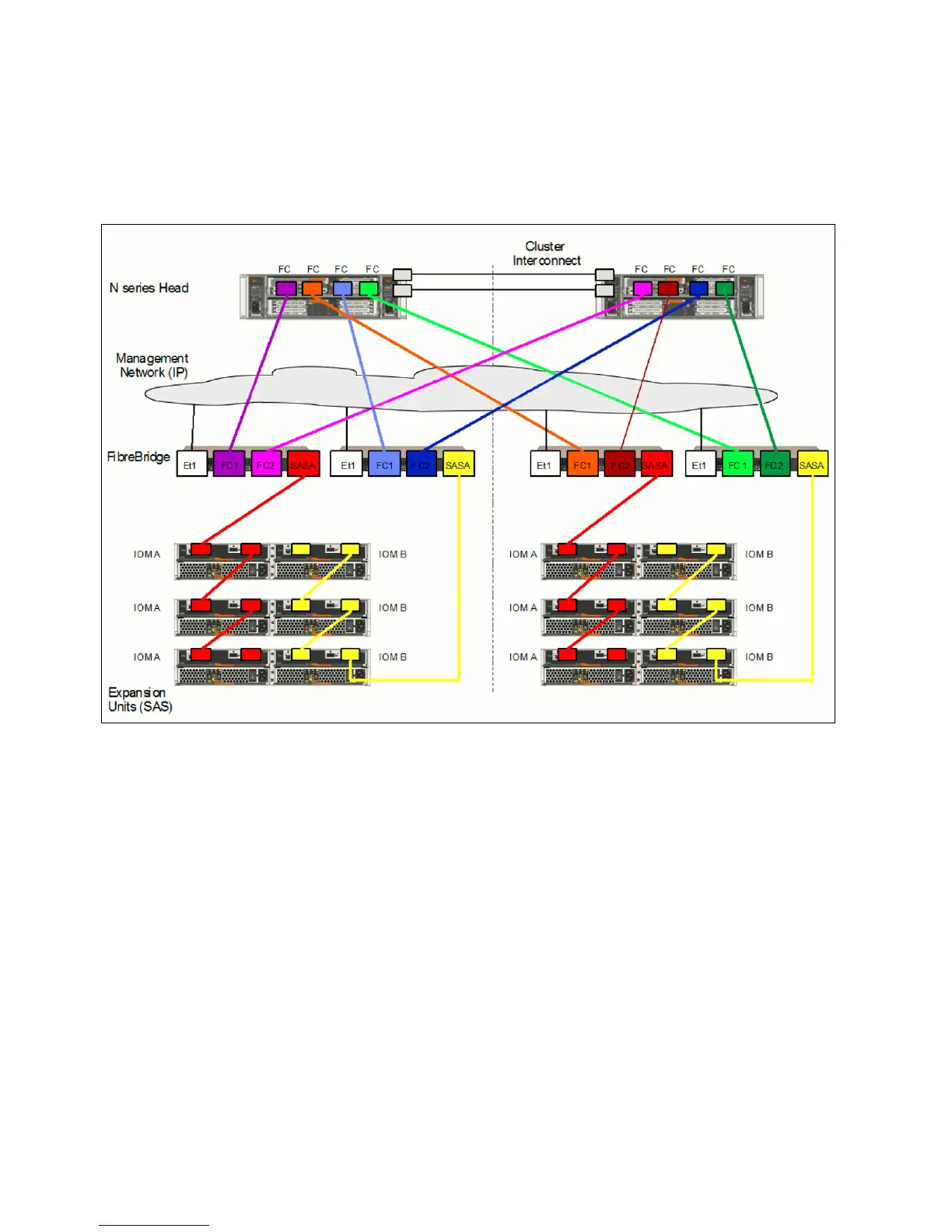

Figure 9-4 shows an example of an N series Stretch MetroCluster environment. Fibre
Channel ports of the N series nodes are connected to the Fibre Channel ports on the
FibreBridge (FC1 and FC2). SAS ports of the first and last shelf in a stack are connected to
the SAS ports (SAS port A) on the FibreBridge. Each stack has two bridges. MetroCluster
uses at least four FibreBridges.
Figure 9-4 Stretch MetroCluster with FibreBridges
