Chapter 6. Cabling expansions 63
6.1.3 Top connections
The top ports of the SAS shelves are connected to the HA pair controllers, as shown in
Figure 6-4.

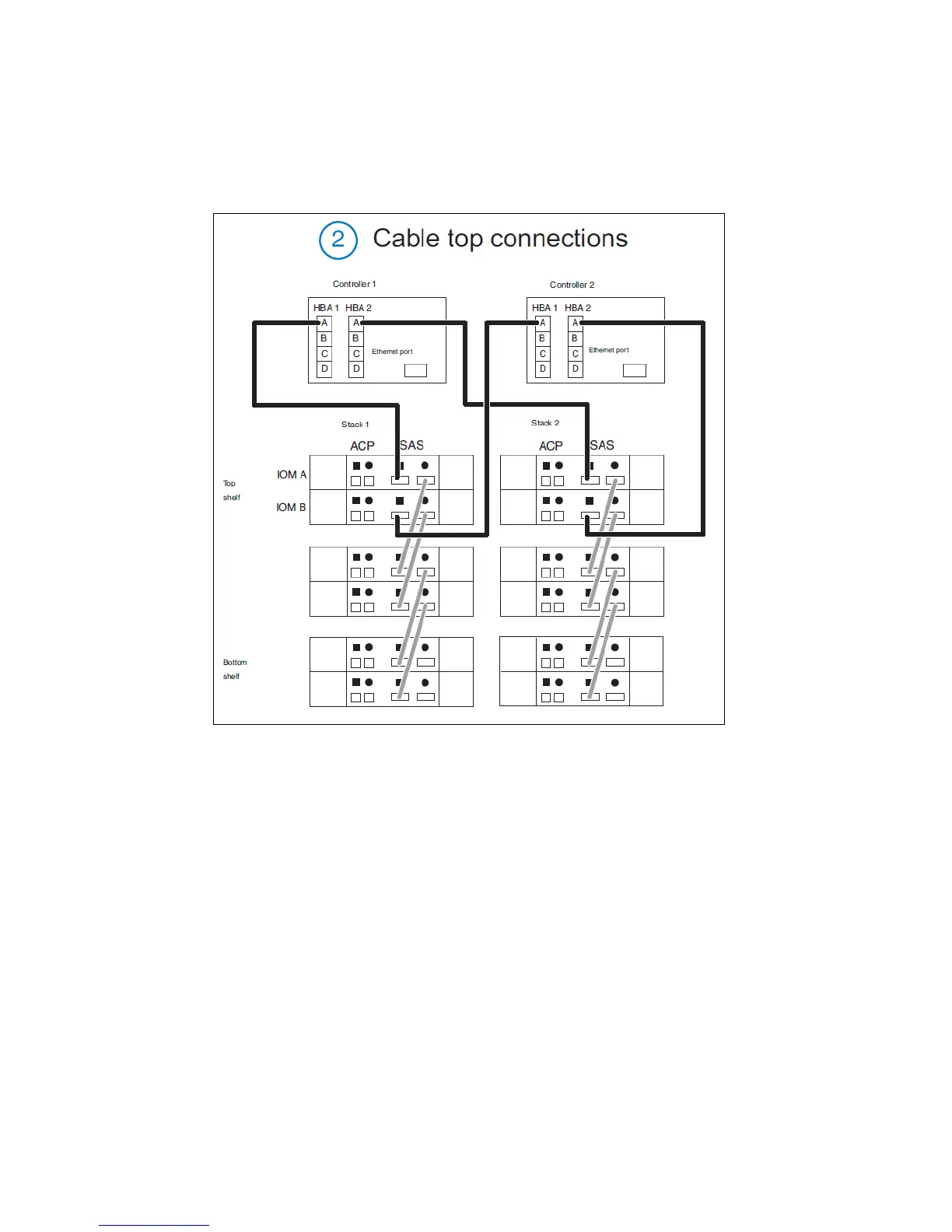

Figure 6-4 SAS shelf cable top connections
