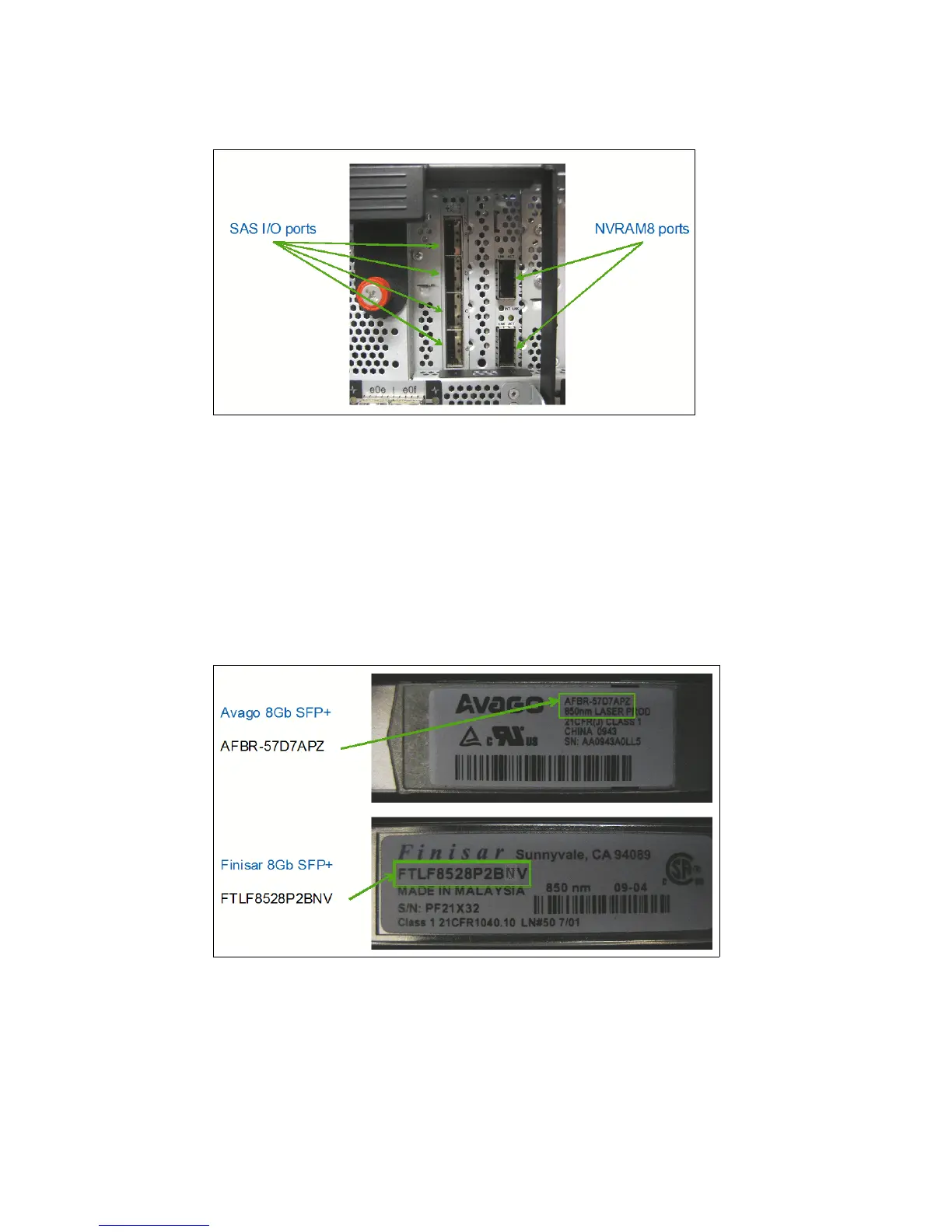

Figure 4-9 shows the use of the SAS Card in I/O Slot 1.
Figure 4-9 Using SAS Card in I/O Slot 1
򐂰 NVRAM8 and SAS I/O system boards use the QSFP connector:
– Mixing the cables does not cause physical damage, but the cables do not work
– Label your HA and SAS cables when you remove them
4.3.7 N7x50T SFP+ modules
This section provides detailed information about SFP+ modules.
Figure 4-10 shows the 8 Gb SFP+ modules.
Figure 4-10 8 Gb SFP+ modules
