120 IBM System Storage N series Hardware Guide

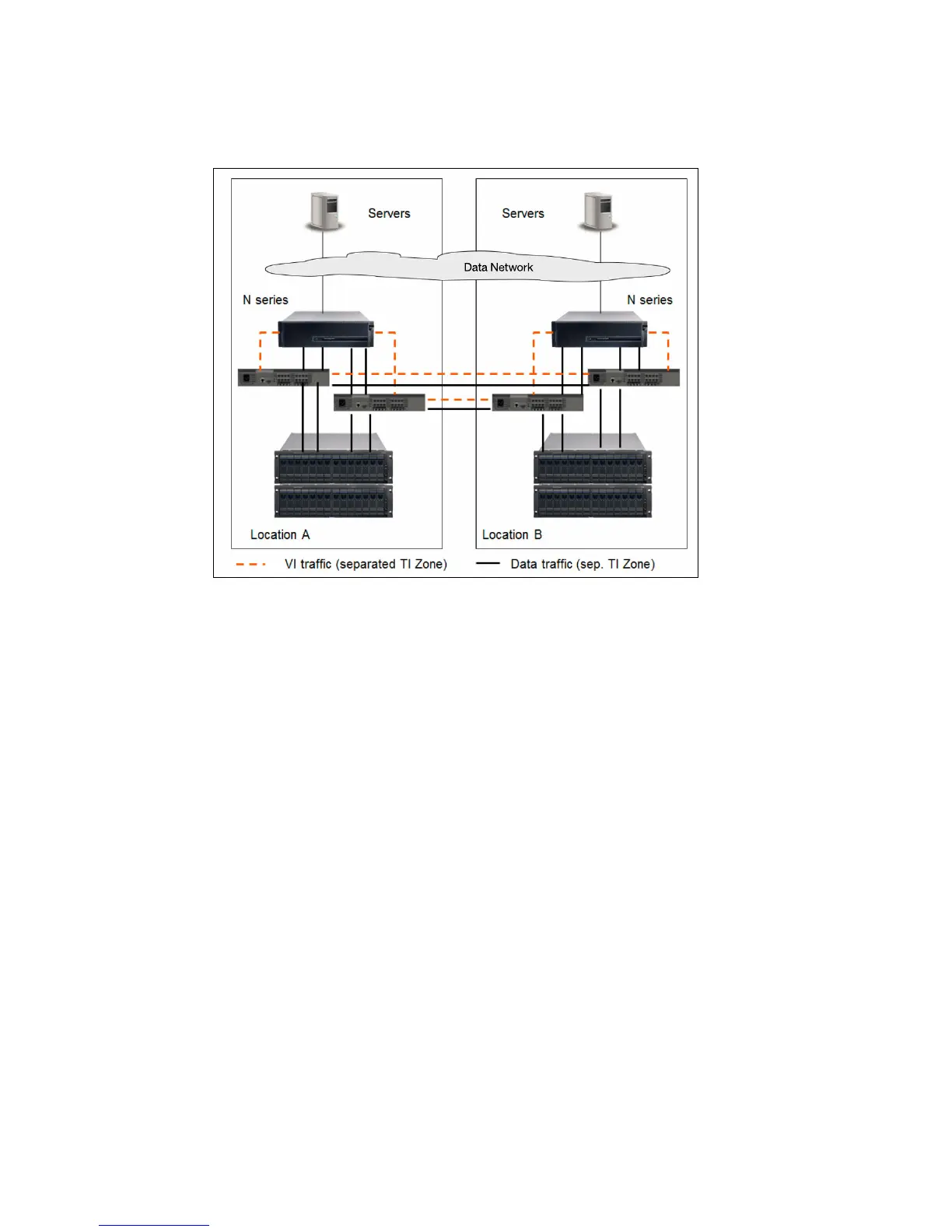

Figure 8-13 shows an example of TI in a Fabric MetroCluster environment. VI traffic (orange)
is separated from data/backend traffic (black) by TI zones.
Figure 8-13 TI Zones in MetroCluster environment
8.7 Failure scenarios
This section describes some possible failure scenarios and the resulting configurations when
MetroCluster is used.
