IBM N Series Hardware Guide

Chapter 6. Cabling expansions 67
6.2.1 Non-multipath Fibre Channel cabling

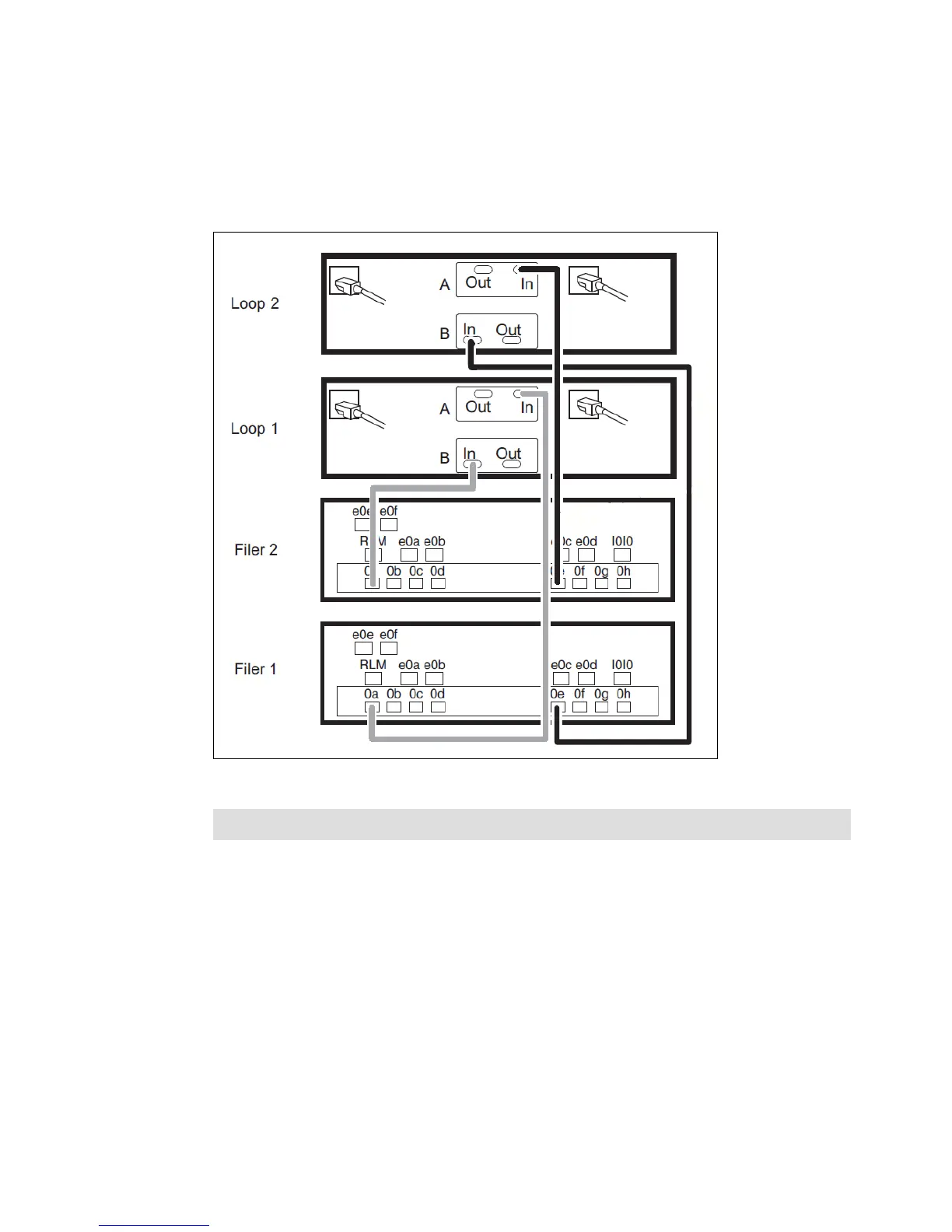

Figure 6-7 shows EXN4000 disk shelves that are connected to a HA pair with non-multipath
cabling. A single Fibre Channel cable or shelf controller failure might cause a takeover
situation.
Figure 6-7 EXN4000 dual controller non-multipath
Attention: Do not mix Fibre Channel and SATA expansion units in the same loop.
