IBM N Series - N3240 Hardware

20 IBM System Storage N series Hardware Guide
2.5.3 N3240 hardware
򐂰 Based on the EXN3000 expansion shelf
򐂰 24 SATA disk drives (minimum initial order of 12 disk drives)
򐂰 Specifications (single node, 2x for dual node):
– 4U, standard 19-inch rack mount enclosure (single or dual node)
– One 1.73 GHz Intel dual-core processor
– 6 GB random access ECC memory (NVRAM 768 MB)
– Four integrated Gigabit Ethernet RJ45 ports
– Two SAS ports
– One serial console port and one integrated RLM port
– One optional expansion I/O adapter slot on mezzanine card:
• 8 Gb FC card provides two FC ports
• 10 GbE card provides two 10 GbE ports
– Redundant hot-swappable, auto-ranging power supplies and cooling fans

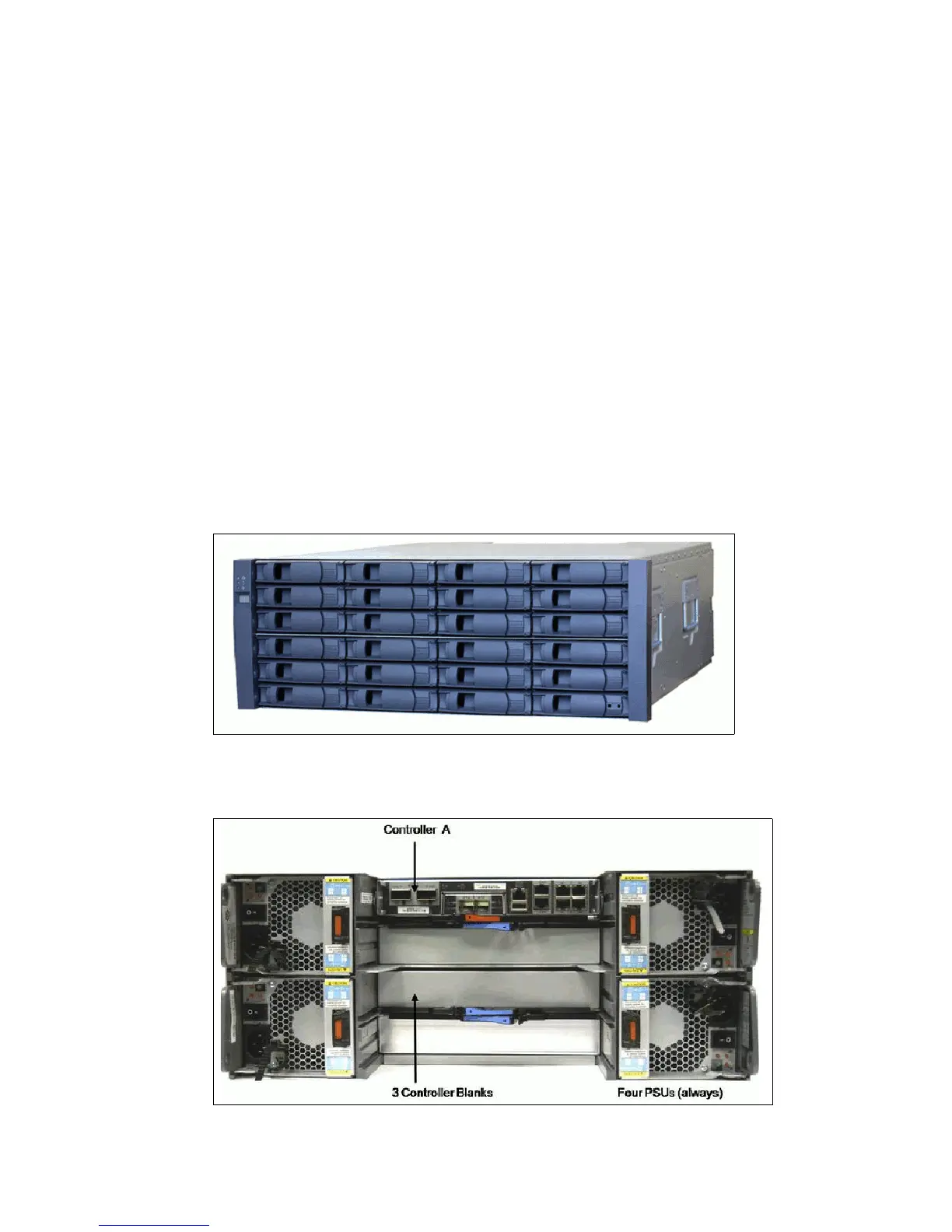

Figure 2-8 shows the front view of the N3240
Figure 2-8 N3240 front view
Figure 2-9 shows the N3240 Single-Controller in chassis.
Figure 2-9 N3240 Single-Controller in chassis
