Chapter 2. Entry-level systems 21

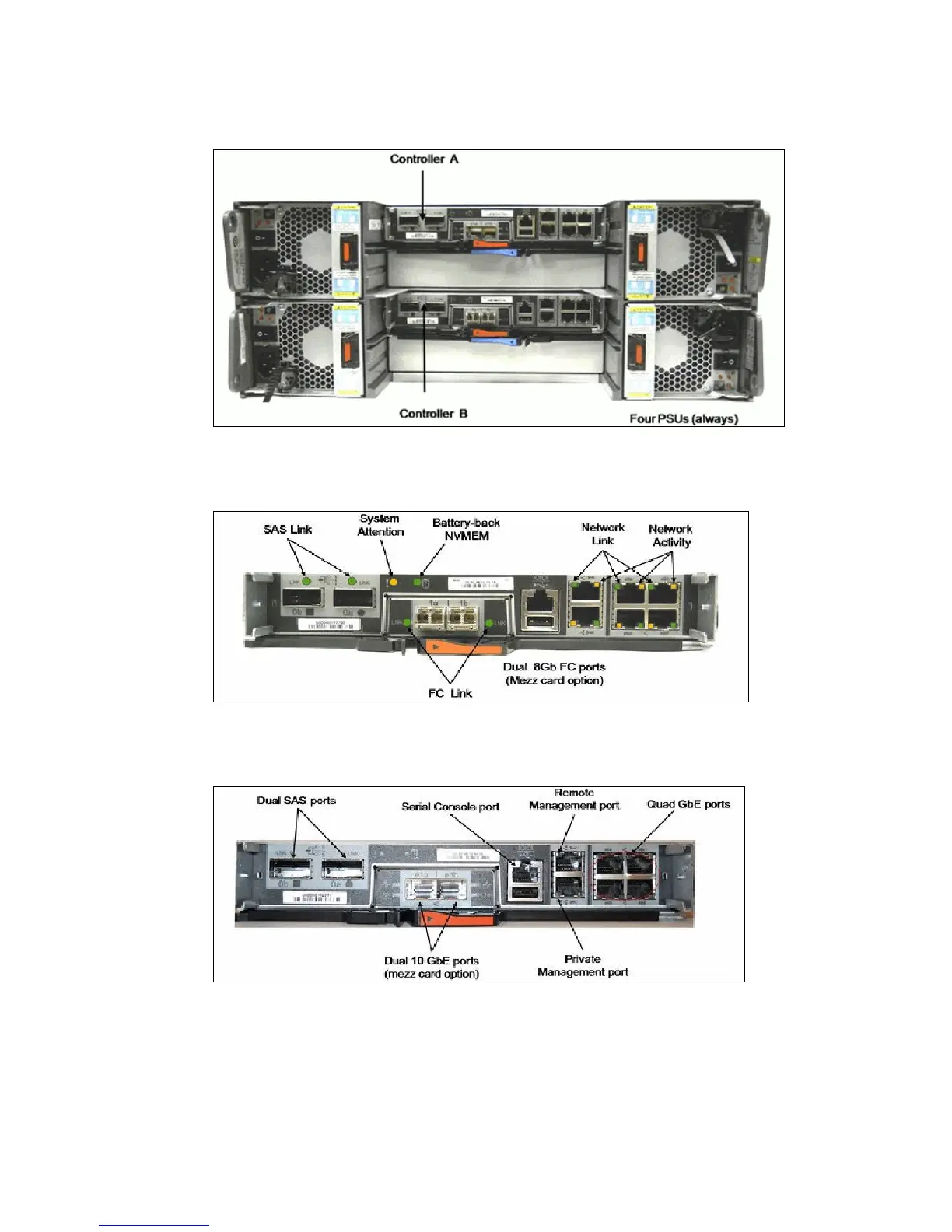

Figure 2-10 shows the front and rear view of the N3240
Figure 2-10 N3240 Dual-Controller in chassis
Figure 2-11 shows the controller with the 8 Gb FC Mezzanine card option
Figure 2-11 Controller with 8 Gb FC Mezzanine card option
Figure 2-12 shows the controller with the 10 GbE Mezzanine card option
Figure 2-12 Controller with 10 GbE Mezzanine card option
