62 IBM System Storage N series Hardware Guide

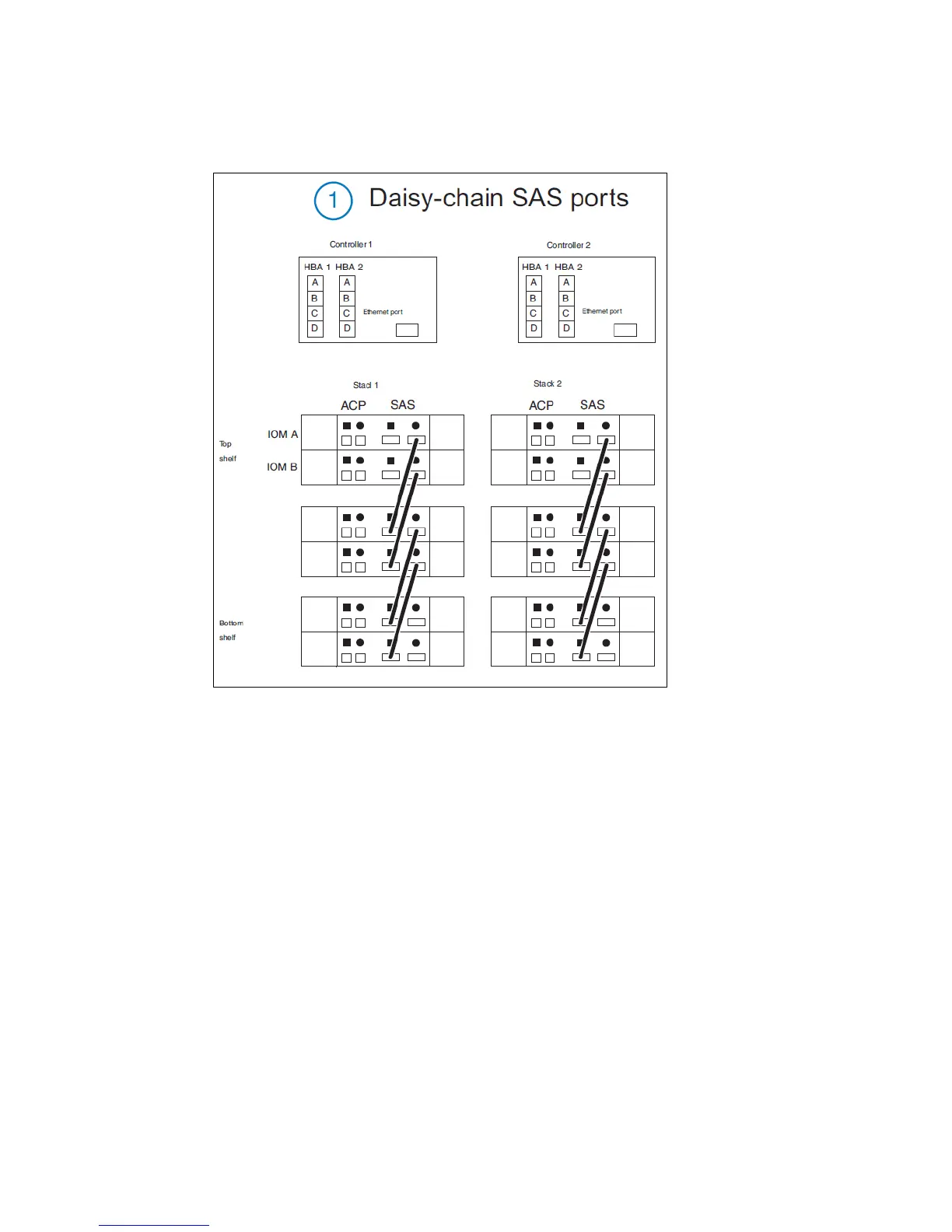

Figure 6-3 shows how the SAS shelves are interconnected for two stacks with three shelves
each.
Figure 6-3 SAS shelf interconnect
