Chapter 18. Boot from SAN 257
8. Scroll to Selectable Boot, as shown in Figure 18-28.
If this option is disabled, press Enter to enable it.
If this option is enabled, go to the next step.

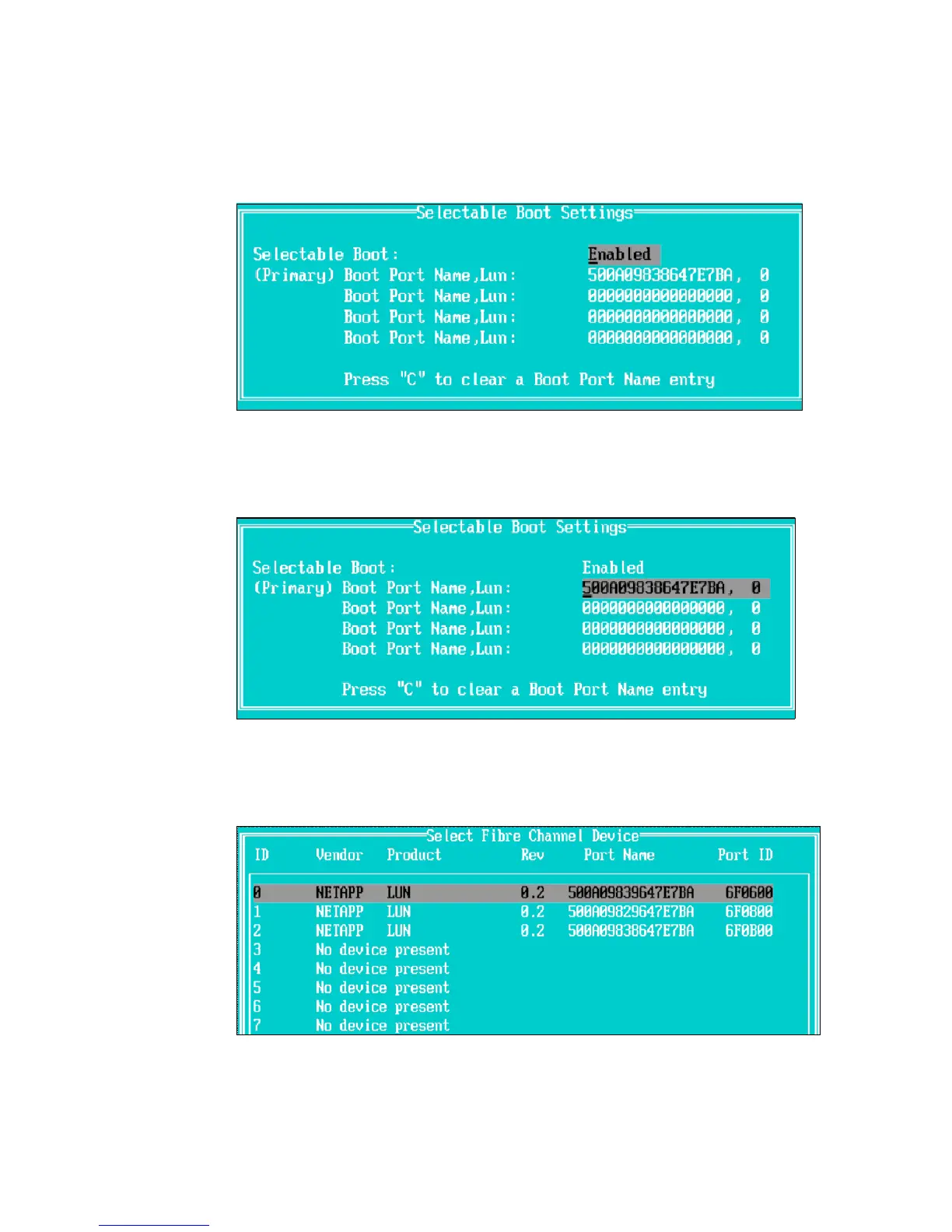

Figure 18-28 Enabling selectable boot in Selectable Boot Settings panel
9. Select the entry in the (Primary) Boot Port Name, LUN field, as shown in Figure 18-29.
Press Enter.
Figure 18-29 Selecting the (Primary) Boot Port Name
10.The available Fibre Channel devices are displayed, as shown in Figure 18-30. Select the
boot LUN 0 from the list of devices and press Enter.
Figure 18-30 Select Fibre Channel Device panel
