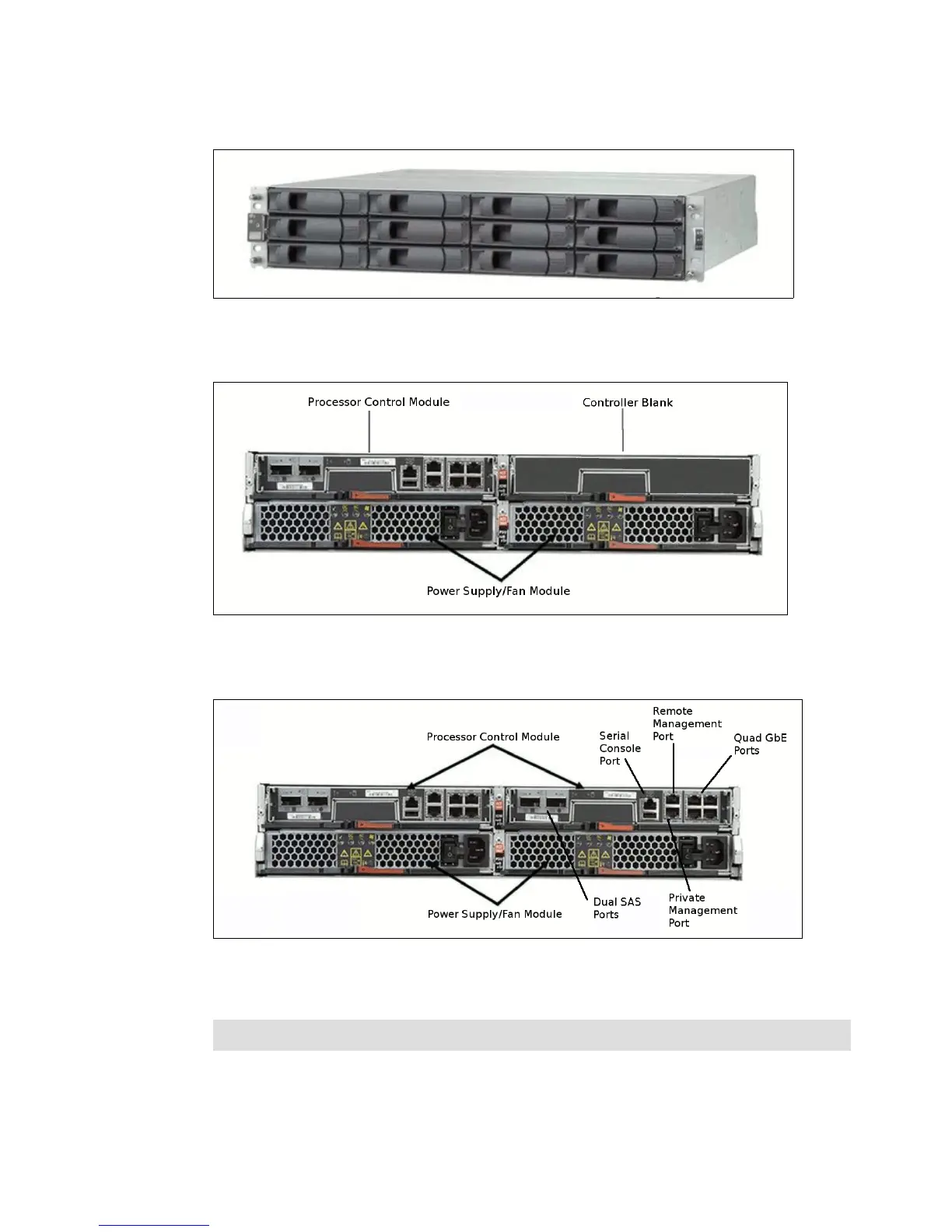

Figure 2-2 shows the front view of the N3150.
Figure 2-2 N3150 front view
Figure 2-3 shows the N3150 Single-Controller in chassis (Model A15)
Figure 2-3 N3150 Single-Controller in chassis
Figure 2-4 shows the N3150 Dual-Controller in chassis (Model A25)
Figure 2-4 N3150 Dual-Controller in chassis
Note: The N3150 supports IP protocols only because it lacks any FC ports.
