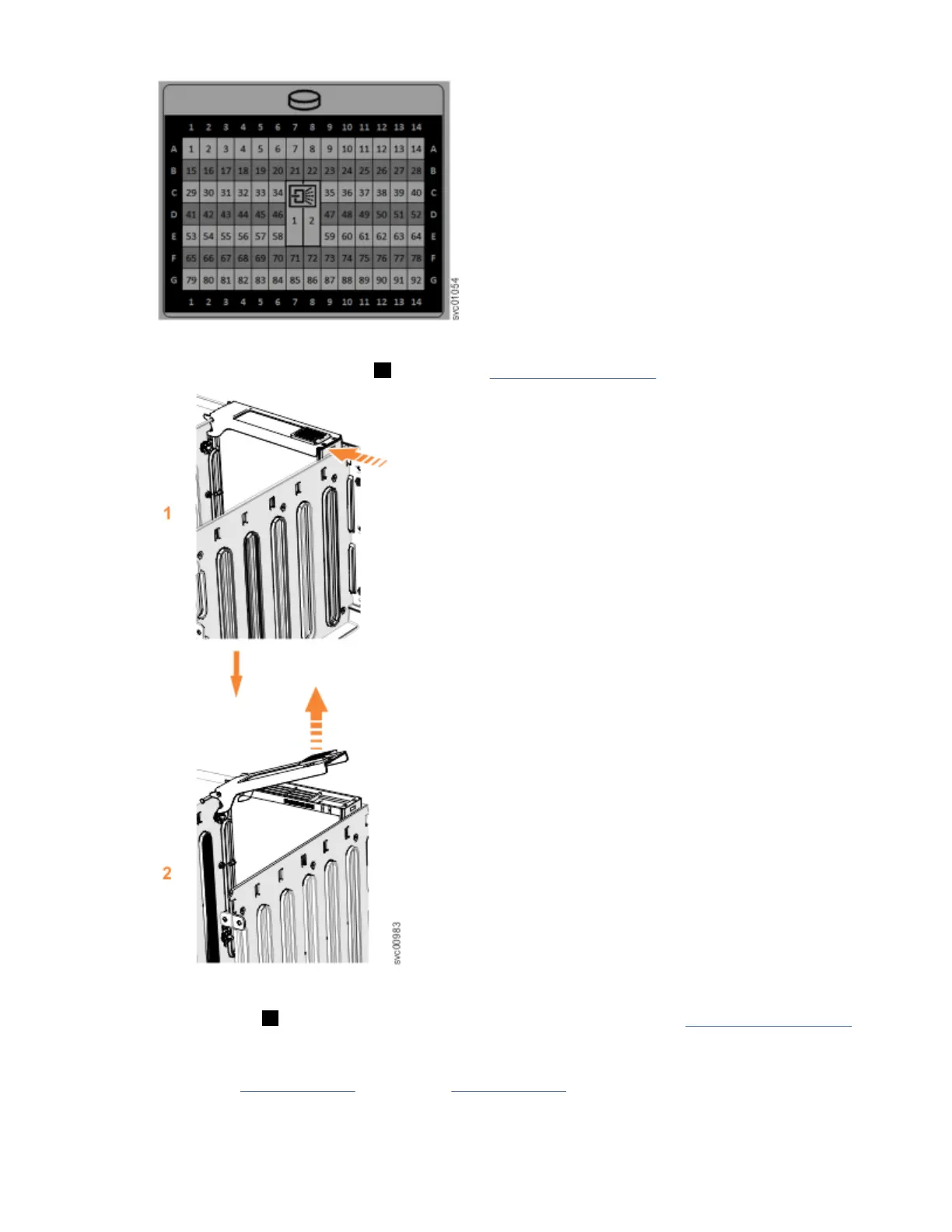

Figure 111. Drive locations in a 2145-92F expansion enclosure
5. Slide the release latch forward ( 1 ), as shown in Figure 112 on page 104.
Figure 112. Remove the drive assembly
6. Lift the handle ( 2 ) to unlock the drive carrier from the partition, as shown in Figure 112 on page 104.
Ensure the toe on the bottom of the latch is fully disengaged.
7. Carefully lift the drive carrier up to remove it from the expansion enclosure.
8. Repeat step “4” on page 103 through step “7” on page 104 for each drive you need to remove.
Replace the drive
104
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
