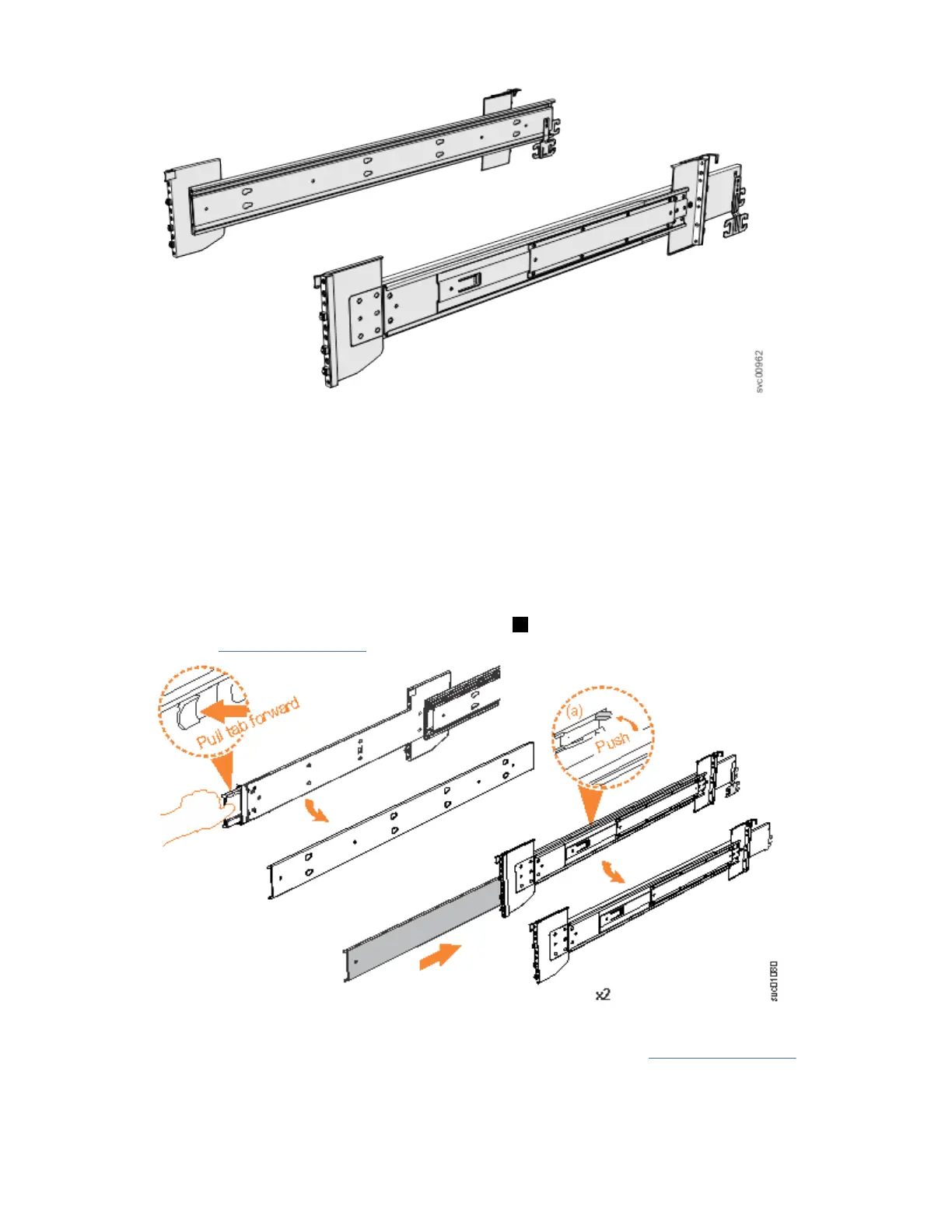

Figure 54. Support rails
2. Select an available 5U space in your rack to install the expansion enclosure.
Important notes:
When you select a rack location, ensure that the enclosure and its parts are easily accessible. Allow
enough space for the lid to be easily removed and for internal components, such as drives and
secondary expansion modules, to be serviced.
When all components and drives are installed, the expansion enclosure is heavy. Install the support
rails and enclosure at the lowest available position. Do not install the rails and enclosure above
position U25 in the rack.
3. Remove the inner member of the rail. Push the tab ( a ) and slide the middle rail member back, as
shown in Figure 55 on page 58.
Figure 55. Detaching the inner rail section
4. Use four M4 screws to attach the inner rail to the side of the enclosure. Figure 56 on page 59 shows
the screw locations.
58
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
