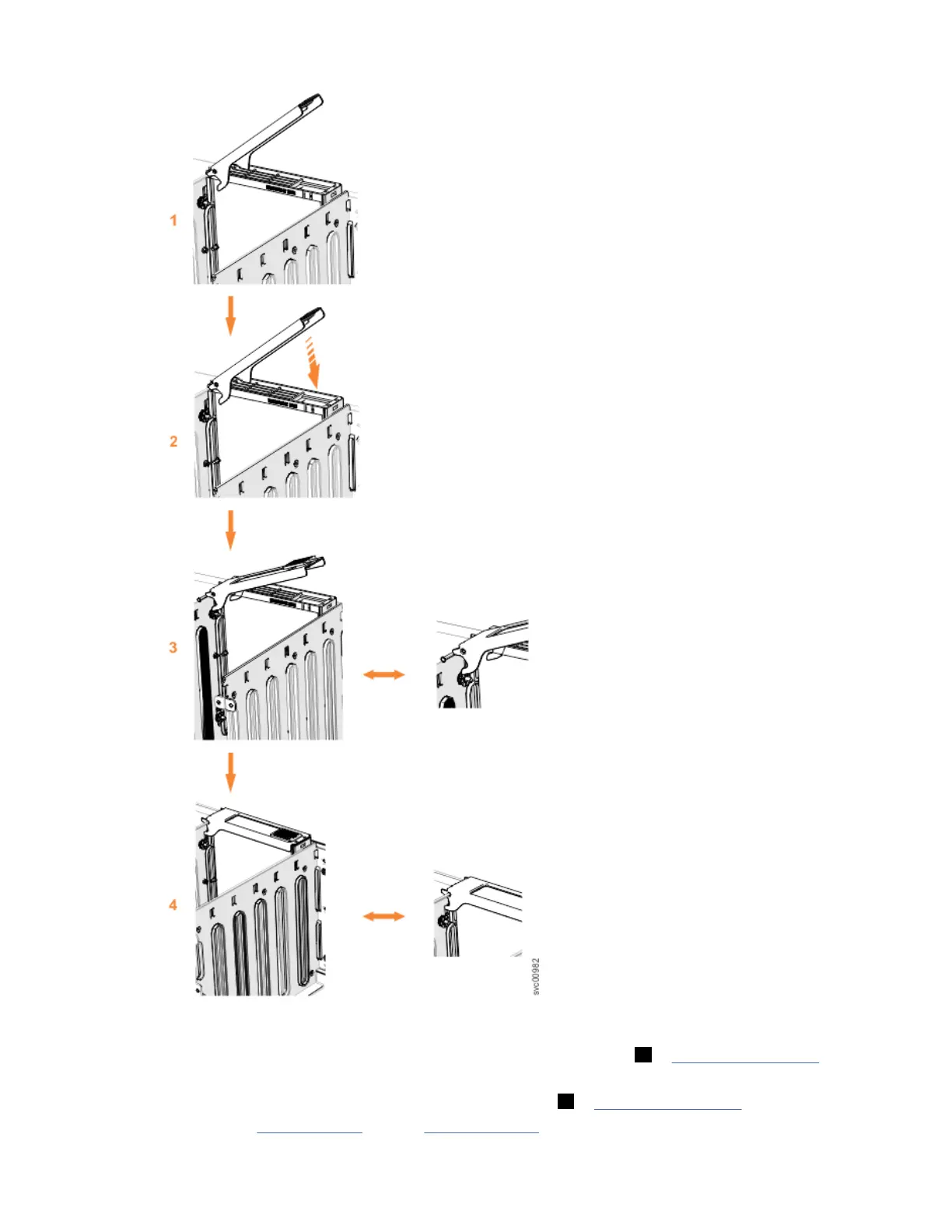

Figure 85. Replace the drive
8. Rotate the handle down to lock the drive assembly into the chassis ( 3 in Figure 85 on page 76).
9. Ensure the toe on the bottom of the latch is fully engaged with the partition in the chassis.
10. Ensure that the top toe of the latch is also fully engaged ( 4 in Figure 85 on page 76).
11. Repeat steps “4” on page 75 through “10” on page 76 for each drive you are replacing.
76
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
