Procedure
To install the CMA assembly, complete the following steps.
1. Optional: You might need to reverse the left-right orientation of the CMA to accommodate the routing
of cables that lead to the node. To reverse the orientation of the arm, complete the following steps:
a) Press the button marked "PUSH" in Figure 27 on page 25.

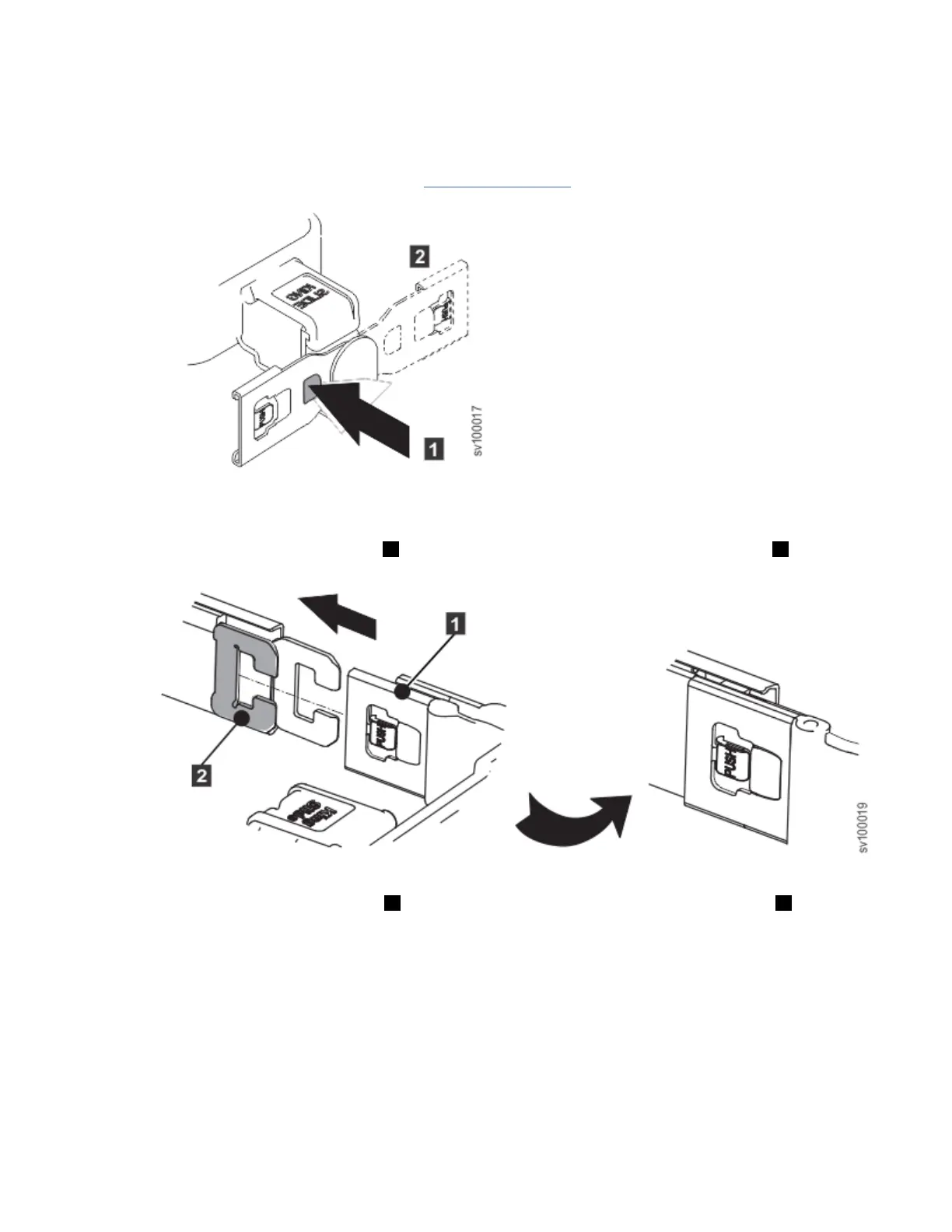

Figure 27. Reversing the orientation of the assembly
b) Turn the connector 180 degrees.
2. Install the CMA inner connector ( 1 ) onto the CMA connector base on the inner member ( 2 ) as in the
following gure.
Figure 28. Install the inner member
3. Install the CMA outer connector ( 3 ) onto the CMA connector base on the outer member ( 4 ), as
shown in the following gure.
