254
IBM eX5 Implementati
on Guide

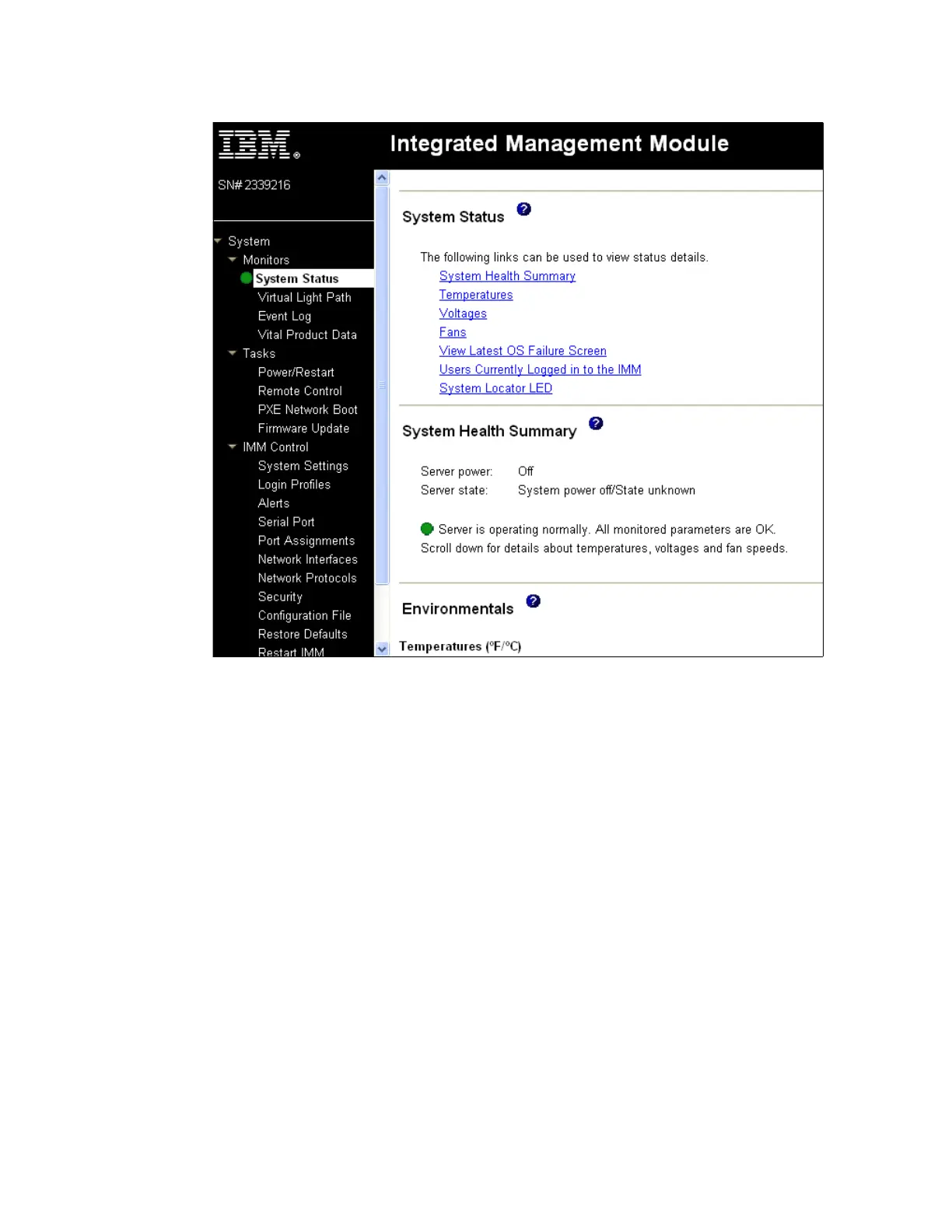

Figure 6-30 Integrated M
anagement Module System Status
When an actual hardw
are error is detected in th
e ser
v
er
, the system status is represented b
y
a red X. The System Health Summary will provide information about
the errors
presently
unresolv
ed in the server
, as sho
wn in Figure
6-31 on
page
255.
