IBM System x3850 X5 Implementation Guide

Chapter 7. IBM System x3690 X5 339

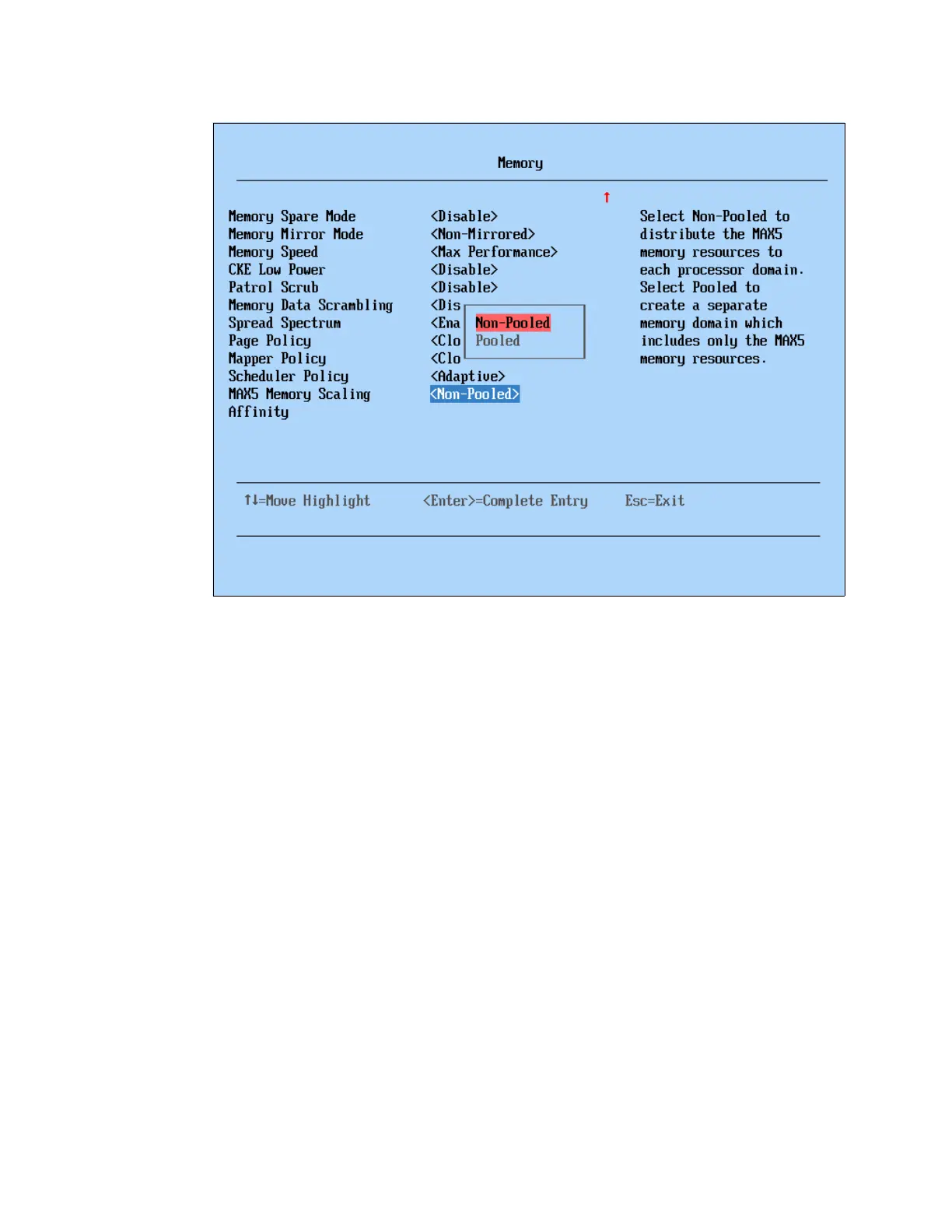

Figure 7-39 MAX5 Memory Scaling option in System x3690 X5 UEFI
The MAX5 Memory Scaling setting provides two options to determine how the system will
present the memory capacity in the MAX5 unit to the running OS:
򐂰 Non-Pooled
The default option splits the memory in the MAX5 and assigns part of it to each of the
installed processors.
򐂰 Pooled
This option presents the additional memory in the MAX5 as a separate pool of memory
without its being assigned to any particular processor.
7.8.2 Operating system-specific settings
Determining what memory scaling option to use depends on the installed OS. The x3690 X5
only supports the x64 (AMD64/EM64T) version of the supported OSs in order to take
advantage of the server’s memory expansion capability.
Windows Server setting
The following Windows Server versions are supported:
򐂰 Windows Server 2008 R2
򐂰 Windows Server 2008 x64 Edition
When running Windows Server on the memory-expanded x3690 X5, set the MAX5 Memory
Scaling option to Non-Pooled.

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
