328 IBM eX5 Implementation Guide

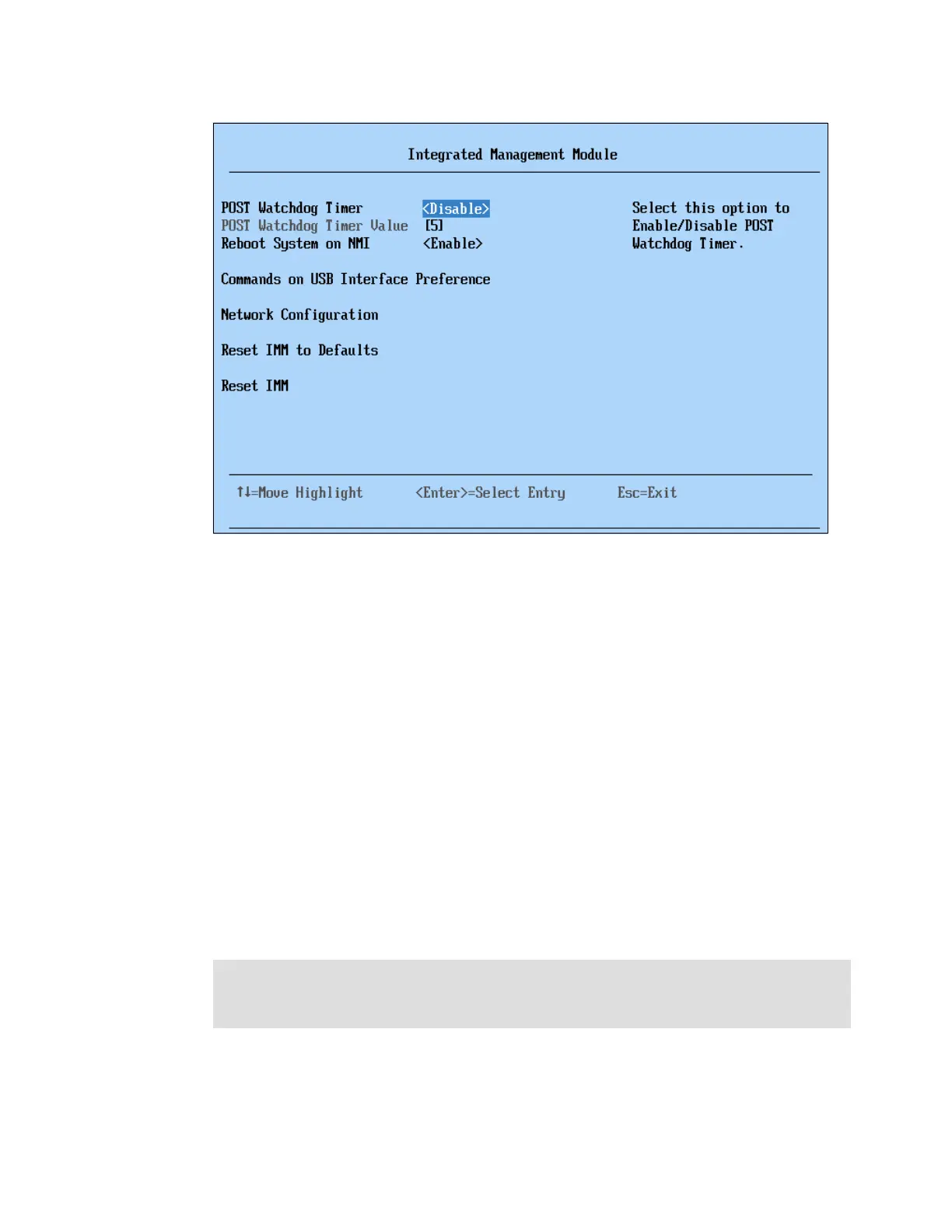

Figure 7-26 Integrated Management Module configuration panel
7.7.1 IMM network access
The greatest strength of the IMM is the ability to completely monitor and manage the server
from over the network. The configuration of the IMM determines the amount of functionality
that you have through this remote access.
IMM default configuration
The default network connection for the IMM on the x3690 X5 is through the system
management port
on the back of the server. The following settings are the default settings of
the IMM from the factory:
򐂰 Network IP: Dynamic Host Configuration Protocol (DHCP)-assigned, or if DHCP is not
available:
– IP Address: 192.168.70.125
– Subnet Mask: 255:255:255:0
–Gateway: 0.0.0.0
򐂰 Default user ID: USERID
򐂰 Default password: PASSW0RD where the 0 is a zero.
7.7.2 Configuring the IMM network interface
The IMM provides two paths to establish a network connection between you and the IMM by
setting either Dedicated or Shared for the Network Interface Port in the Network Configuration
Resetting user credentials: If you do not know the user credentials to enable you to
connect to the IMM remotely, you can reset all passwords by using the Reset IMM to
Defaults selection in Figure 7-26 on page 328.

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
