514 IBM eX5 Implementation Guide

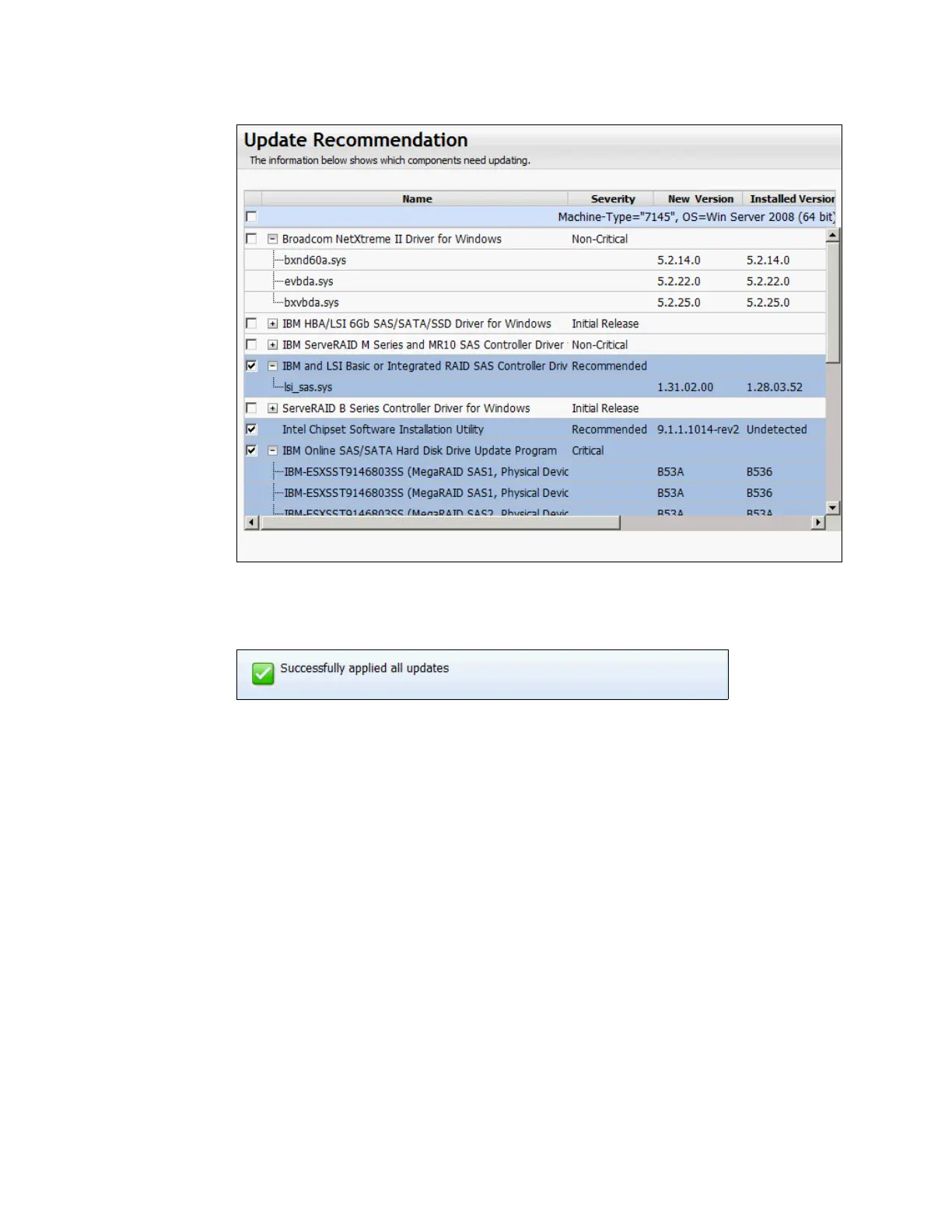

Figure 9-71 Overview of possible updates
12.When the update is finished, a message displays confirming the updates. Click Next.
Figure 9-72 Updates are successful
13.Click Finish to close the UXSPI.
14.Restart the system to complete the update process.
9.12 Bootable Media Creator
The Bootable Media Creator (BoMC) provides a tool for creating a bootable image for
supported media (CD, DVD, ISO image, USB flash drive, or PXE files) to update the system
firmware. Because BoMC runs in its own boot environment, you cannot update drivers. BoMC
has a graphical and command-line interface. One bootable media image can contain support
for multiple systems. The tool uses standard HTTP (port 80) and HTTPS (port 443) to get the
updates from IBM. Your firewall must allow these ports.
Supported operating systems
BoMC is supported on Windows, Linux, and VMware operating systems. BoMC supports
32-bit and 64-bit operating systems. The IBM ToolsCenter Bootable Media Creator
Installation and User’s Guide provides a detailed list of supported operating systems at the
following website:
http://ibm.com/support/entry/portal/docdisplay?lndocid=TOOL-BOMC

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
