Chapter 7. IBM System x3690 X5
The IBM System x3690 X5 offers flexibility in design to support a wide variety of uses. The
x3690 X5 supports up to16 internal drive bays and offers up to 7.5 TB of redundant storage.
This system is ideal for most general-purpose file servers.

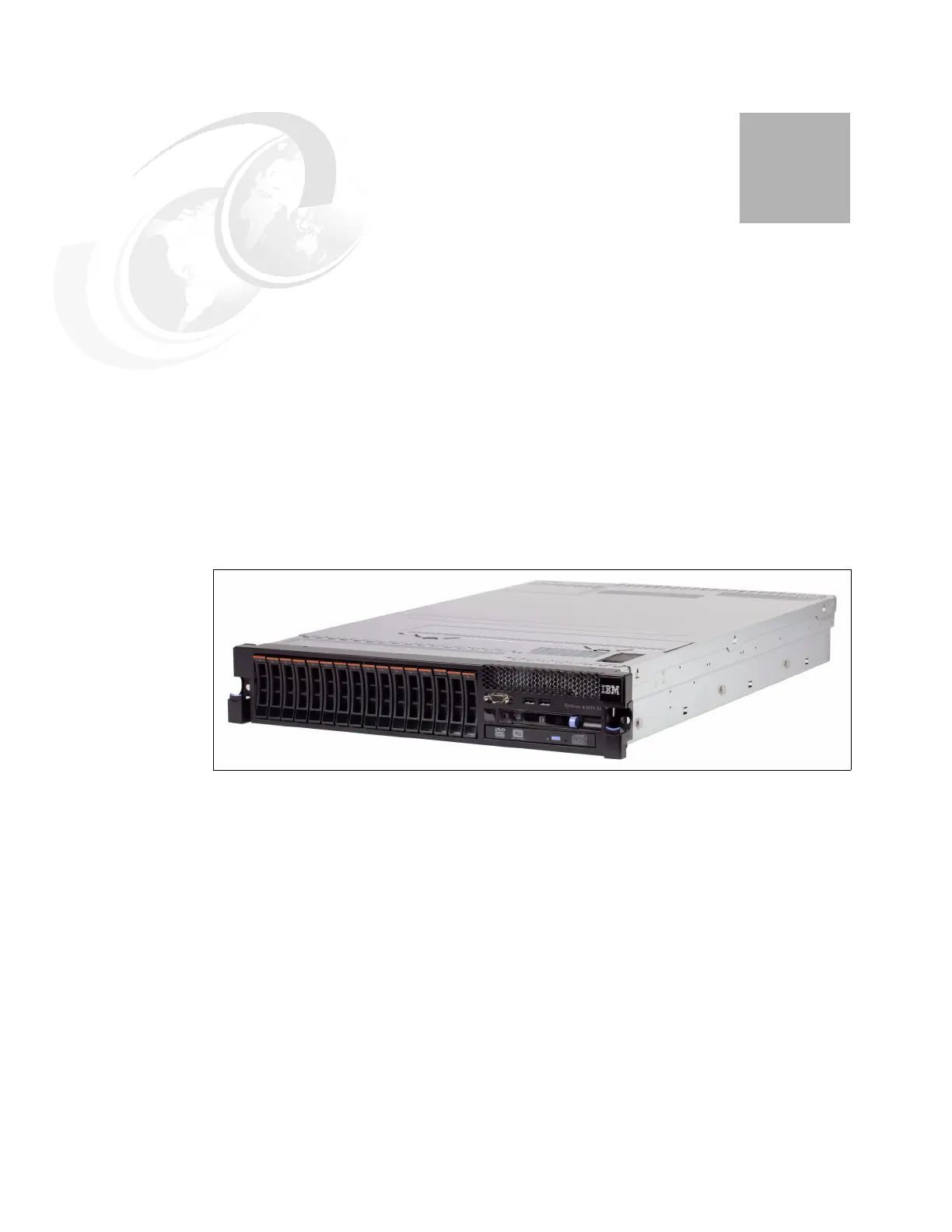

Figure 7-1 System x3690 X5
This chapter provides assistance for making configuration, monitoring, and maintenance
decisions for the x3690 X5 server. The information provided is meant to help you make
informed decisions; however, the information provided must not be considered as an absolute
implementation process.
This chapter covers the following topics:
򐂰 7.1, “Before you apply power for the first time after shipping” on page 302
򐂰 7.2, “Processor considerations” on page 304
򐂰 7.3, “Memory considerations” on page 306
򐂰 7.4, “MAX5 considerations” on page 311
򐂰 7.5, “PCIe adapters and riser card options” on page 316
򐂰 7.6, “Power supply considerations” on page 326
򐂰 7.7, “Using the Integrated Management Module” on page 327
򐂰 7.8, “UEFI settings” on page 337
򐂰 7.9, “Operating system installation” on page 346
򐂰 7.10, “Failure detection and recovery” on page 369
