IBM System x3850 X5 Implementation Guide

396 IBM eX5 Implementation Guide
8.5 UEFI settings
Unified Extensible Firmware Interface (UEFI) is an interface that takes care of handing over
the pre-boot environment to the operating system. UEFI is effectively the replacement for
BIOS. BIOS has been around for many years but it was not designed to handle the amount of
hardware that can be added to a server today.
New IBM System x models, including the HX5, implement UEFI to take advantage of its
advanced features. You access UEFI by pressing F1 during the system initialization process,
as shown on Figure 8-31.

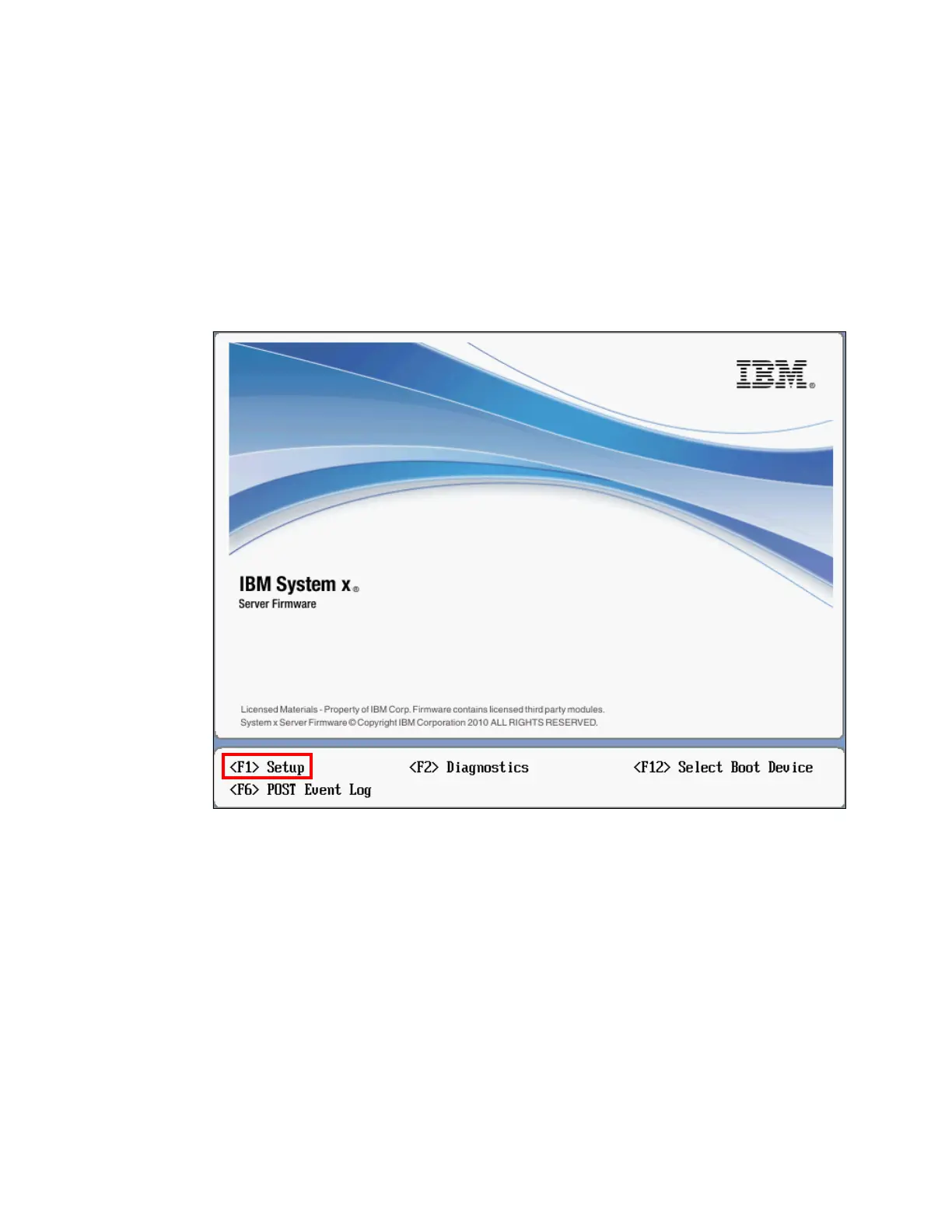

Figure 8-31 UEFI window on system start-up
Figure 8-32 on page 397 shows the main UEFI System Configuration and Boot Management
panel.

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
