Chapter 8. IBM BladeCenter HX5 431

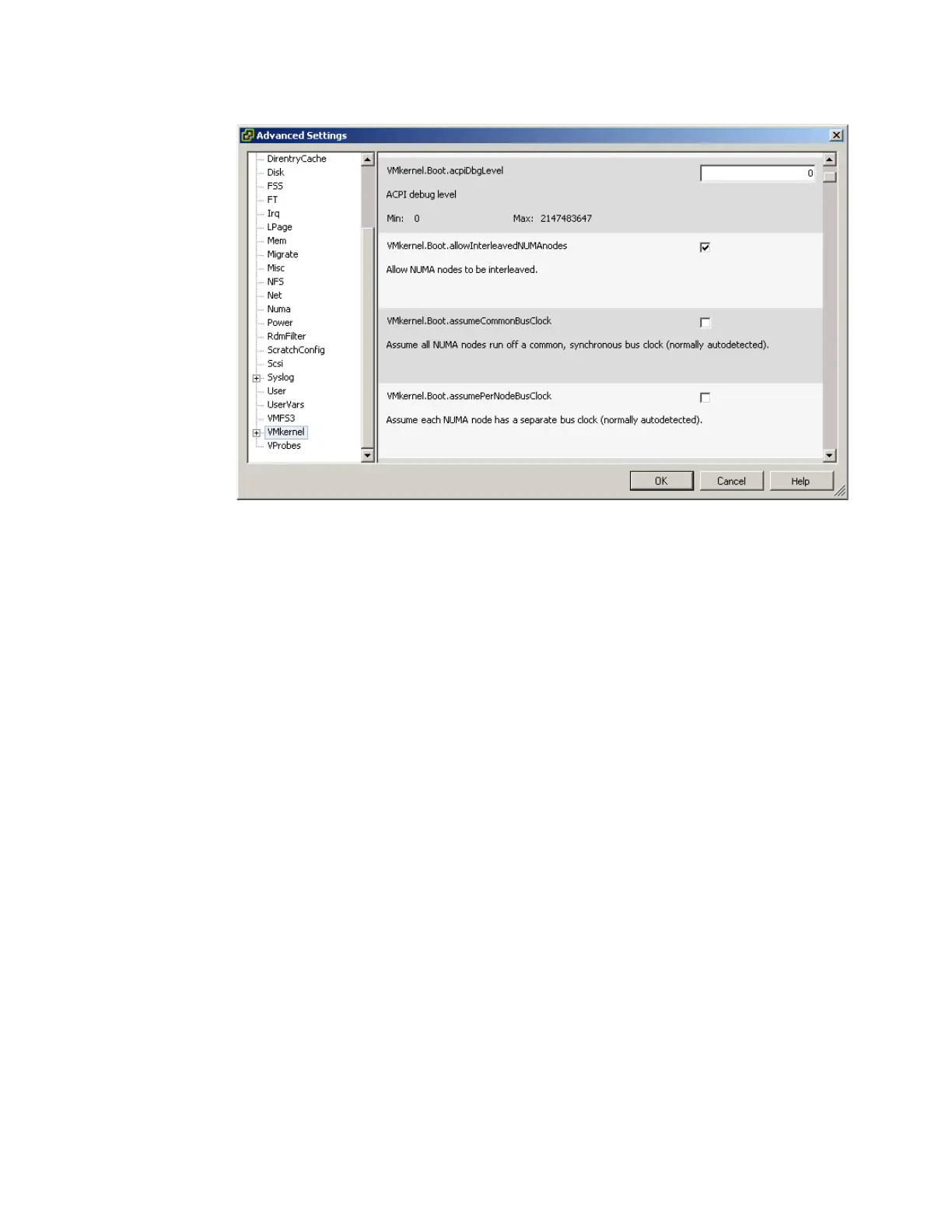

Figure 8-67 Editing the VMkernel settings in vSphere Client
12.Click OK. At this point, you have completed the process of installing ESXi 4.1 Installable
on the HX5 with MAX5.
Attaching MAX5 to HX5 with an existing installation of ESX 4.1 or ESXi
4.1 Installable edition
The easiest way to add the MAX5 to an existing installation of the ESX 4.1 or ESXi 4.1
Installable running on an HX5 is by using the following steps:
1. Connect to the relevant ESX 4.1 or ESXi 4.1 Installable server by logging in to it using the
VMware vSphere Client.
2. Select the Configuration tab of the host and click Advanced Settings under Software.
3. Click VMkernel in the left pane and select the check box next to
VMkernel.Boot.allowInterleavedNUMAnodes, as shown in Figure 8-68 on page 432.
Click OK when finished.
