IBM System x3850 X5 Implementation Guide

460 IBM eX5 Implementation Guide

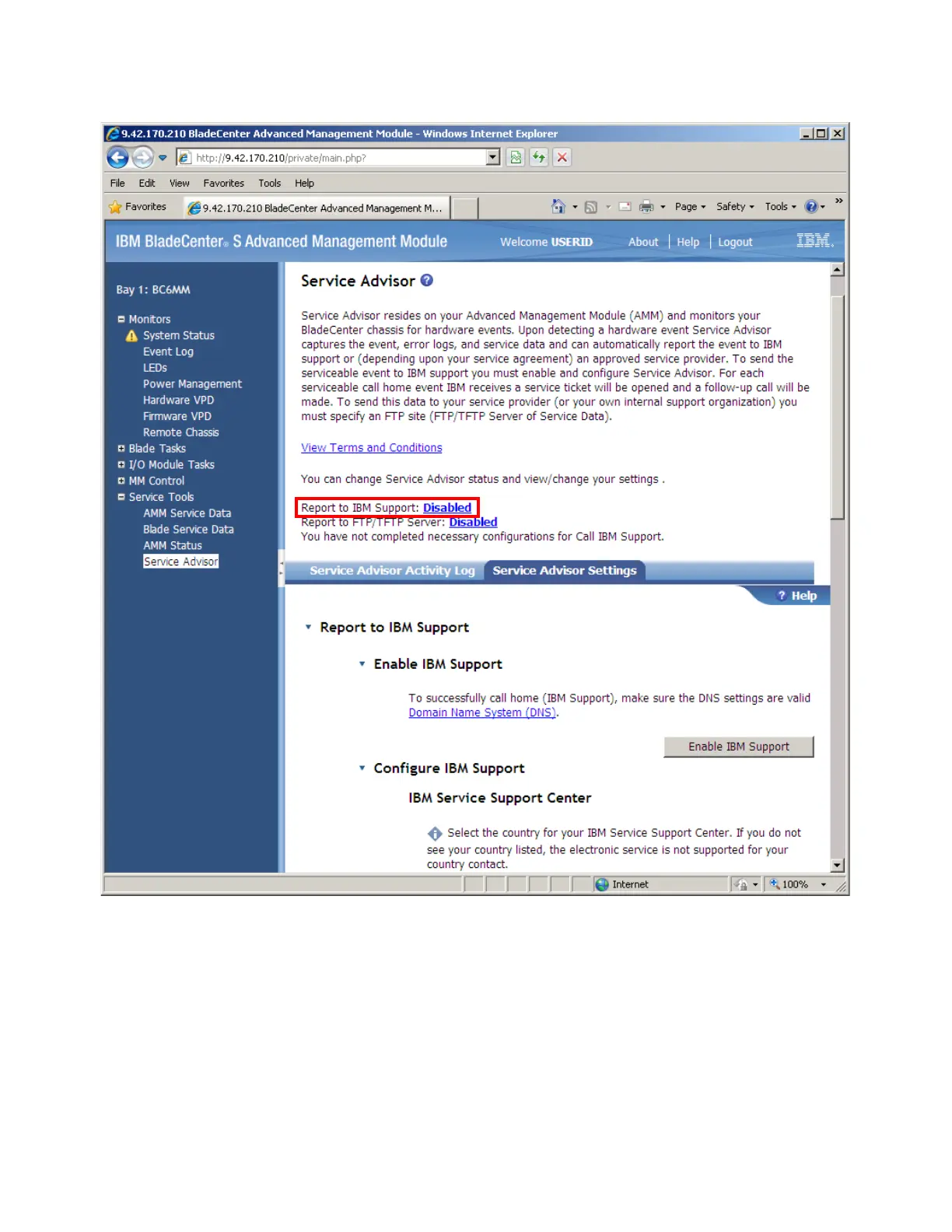

Figure 9-10 Service Advisor settings
7. It is advisable to generate a test call to IBM to ensure that the BladeCenter chassis can
call home correctly. Select the Test Call Home tab and click Test Call Home. The Test
Call Home tab only appears if the Service Advisor is set to Enabled.
8. You will be returned to the Service Advisor Activity Log tab after you click Test Call Home.
9. Click Refresh on the activity log until a success or failure is registered in the Send column
of the activity log. If the call was successful, a ticket number appears in the Assign Num
column. The ticket that is opened at IBM is identified as a test ticket. No action is required
from IBM support for a test ticket, and the call will be closed. See the Connectivity security
for Service Advisor section of the IBM BladeCenter Advanced Management Module

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
