466 IBM eX5 Implementation Guide

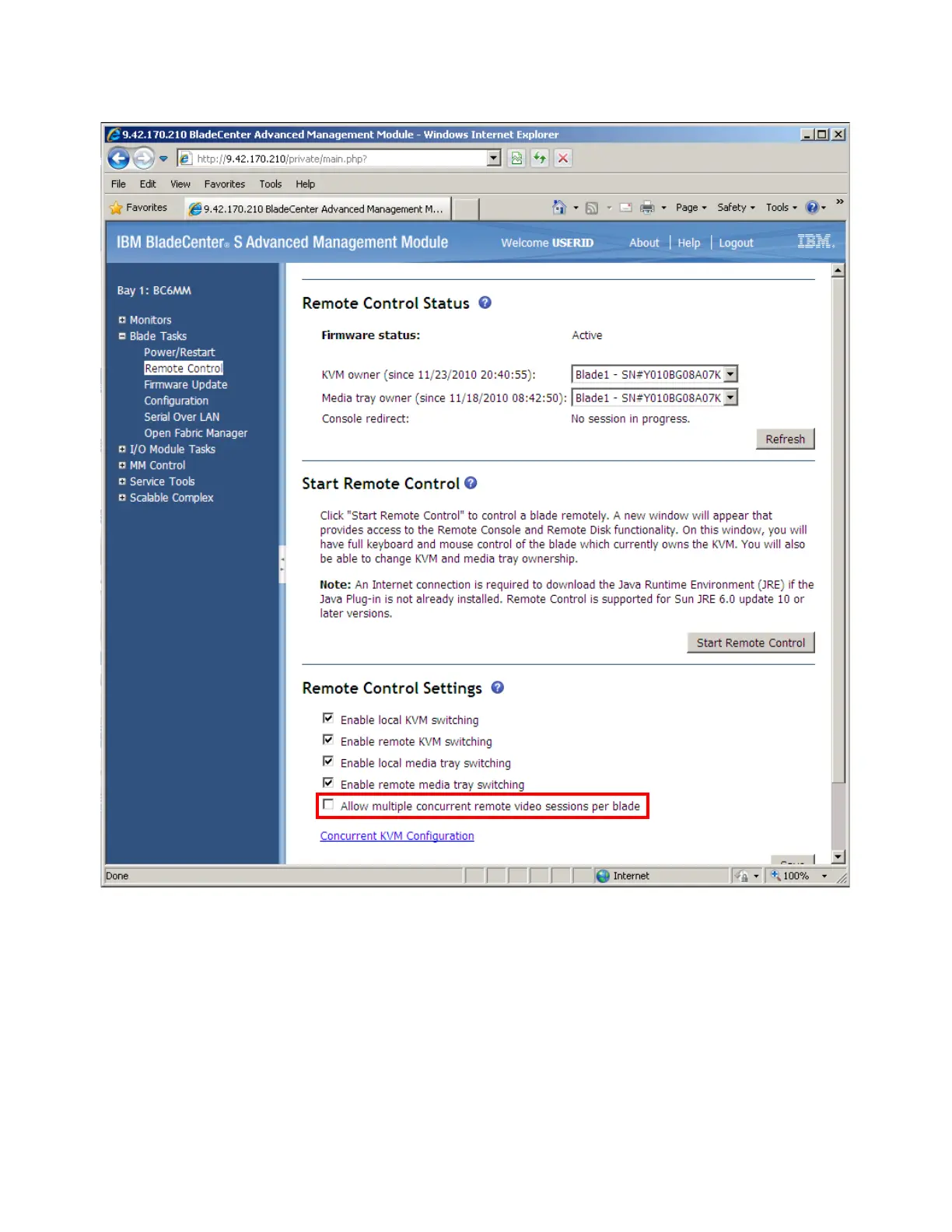

Figure 9-16 Remote Control options page
3. To select a blade that you want to control, click Start Remote Control.
4. To view the video of a blade, select the blade from the pull-down list box, as shown in
Figure 9-17 on page 467. You can obtain additional instructions for power control,
mounting remote media, and soft key programming in the IBM BladeCenter Advanced
Management Module Installation Guide at the following website:
http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5073392

IBM System x3850 X5 Specifications

General

Processor Cores	Up to 10 cores per processor
Chipset	Intel 7500
Hard Drive Interface	SAS/SATA
Processor	Intel Xeon E7-4800 series, Intel Xeon E7-8800 series
Memory Slots	64 DIMM slots
Storage	Up to 16 x 2.5" hot-swap SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Network Interface	Integrated Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Form Factor	4U Rack
