1-1
BASIC MANUAL
1

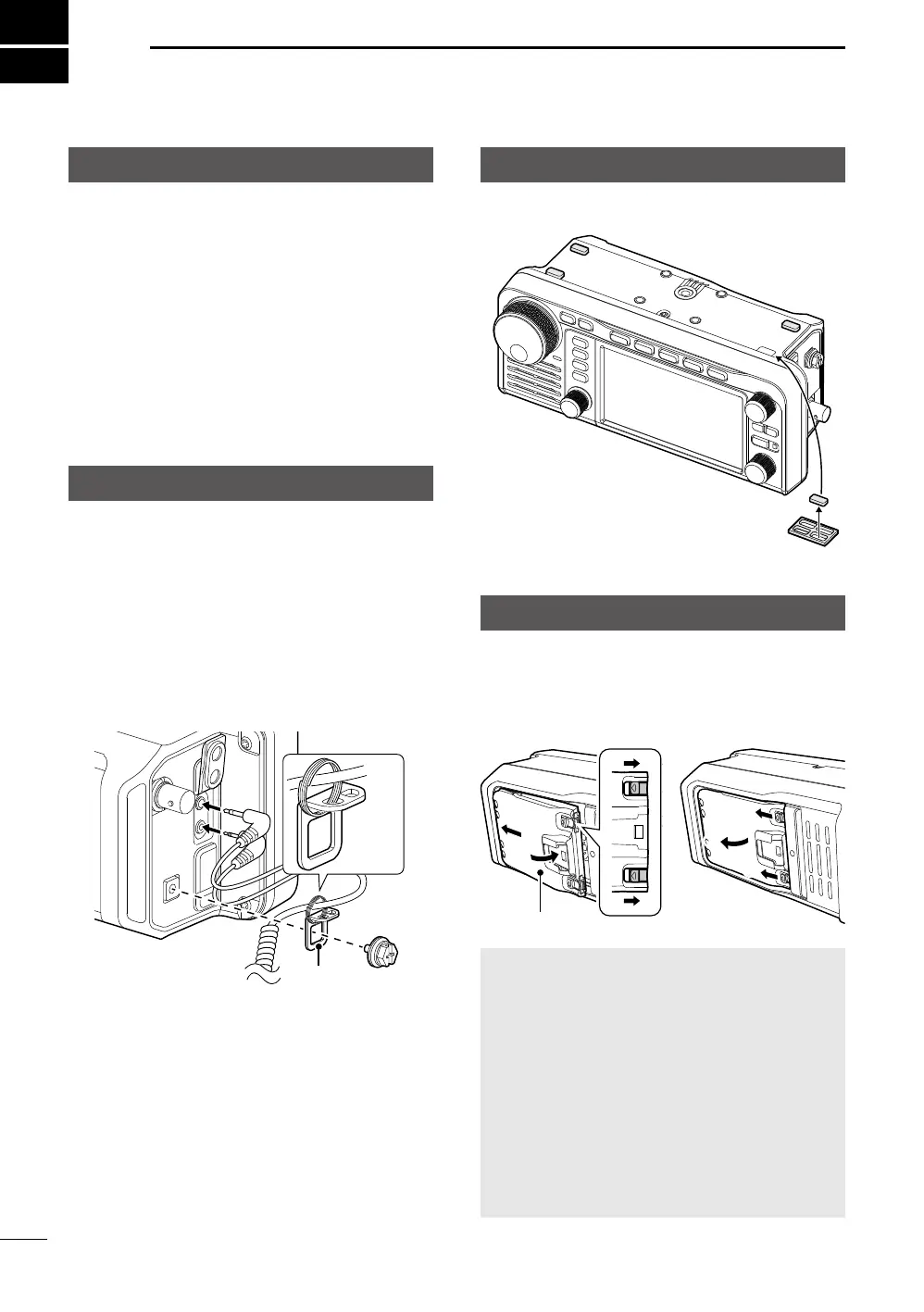

INITIAL SETUP
Selecting a location
Select a location for the transceiver that allows
adequate air circulation, free from extreme heat,
cold, or vibration, and other electromagnetic
sources.
Never place the transceiver in areas such as:
• Temperatures that are below –10°C (+14°F) or
above +60°C (+140°F).
• An unstable place that slopes or vibrates.
• In direct sunlight.
• High humidity and temperature environments.
• Dusty environments.
• Noisy environments.
Attaching the Battery pack
Attach or detach the battery pack, as illustrated
below.
LWhen attaching, slide the battery pack and hold it
down until the both latches are locked.
Cushion Sheet
(Supplied with the transceiver)
Connecting a microphone
Plug the microphone into the [SP/MIC] jack,
and attach the microphone’s cable to the
microphone plate to avoid cable breaks.
LConfirm that the transceiver is OFF before
connecting or disconnecting optional equipment.
1. Attach the microphone’s split ring to the plate.
2. Attach the microphone plate to the [GND]
terminal with its bolt.
3. Plug the microphone into the [SP/MIC] jacks.
(SP: 3.5 mm (1/8 inch), MIC: 2.5 mm)
2
1
3
LWhen you connect other devices to the [SP/MIC]
jacks, attach the cable to the plate through the
split ring (User supplied).
Attaching the cushions
Attach the cushions, as illustrated below.
Microphone
plate
Battery pack
1
2
1
2
1
To attach To detach
NOTE:
• Keep the battery pack attached, even when
using an external power supply.
• Even when the transceiver power is OFF, a small
current still flows in the transceiver. Remove the
battery pack from the transceiver when not using
it for a long time. Otherwise, the attached battery
pack will become exhausted.
• When the temperature is around 0°C (+32°F) or
below, the battery protection function automatically
sets transceiver power to 0.5 W, and disables
power selections (1 W, 2.5 W, 5 W, and 10 W*).
* “10 W” can be selected only when using an
external DC power supply.
To Next Page
