BASIC MANUAL
2
PANEL DESCRIPTION

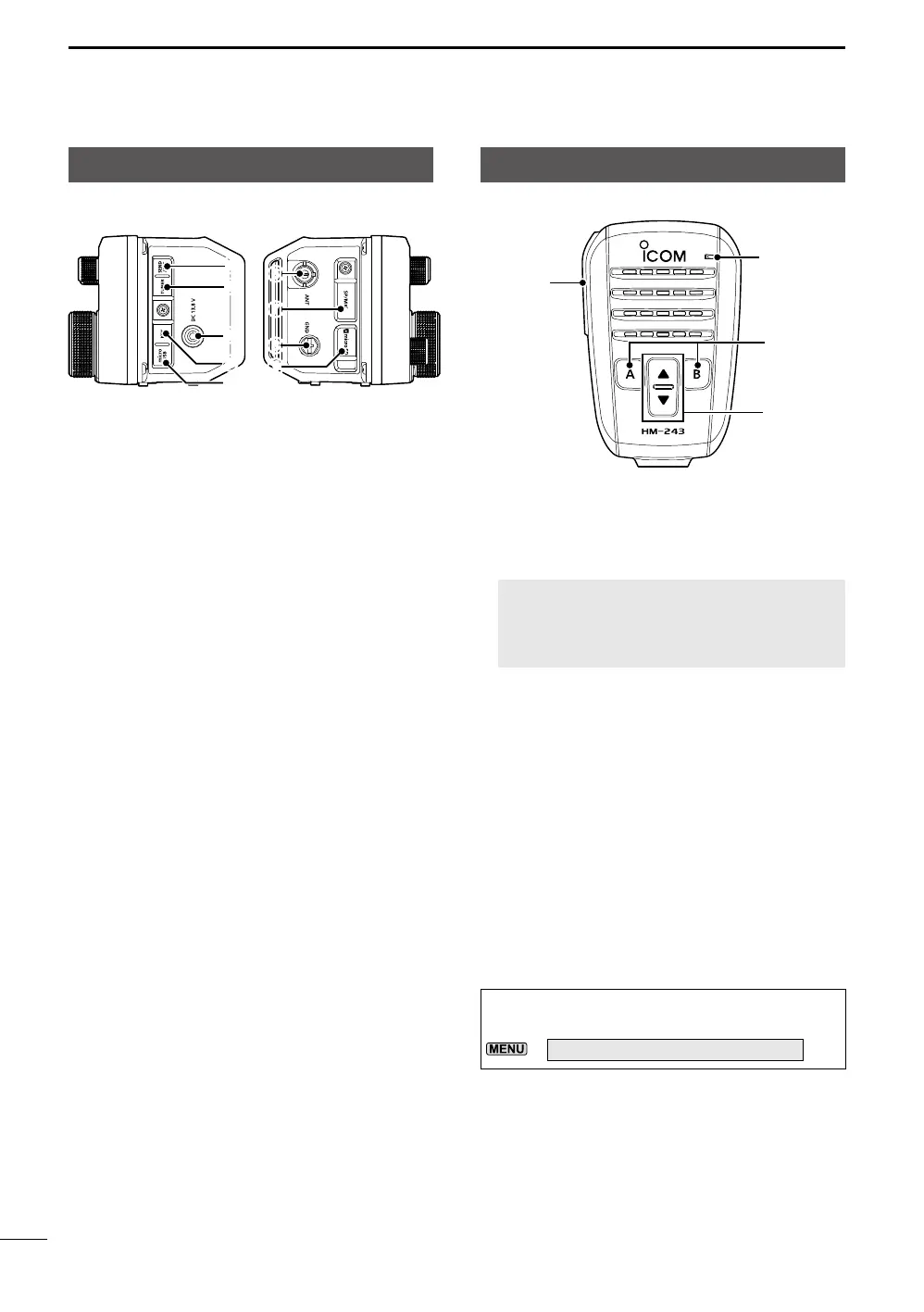

Side panels
1SEND/ALC JACK [SEND/ALC] (p. 13-2)
Connect to control transmit with non-Icom
external units or the ALC output jack of a non-
Icom linear amplifier.
2TUNER JACK [TUNER]
Accepts the control cable from an external
antenna tuner
with a 3.5 mm (1/8 inch) stereo
plug.
3DC POWER JACK [DC 13.8 V] (p. 13-1)
Accepts 13.8 V DC through the supplied DC
power cable.
4KEY JACK [KEY] (p. 13-2)
Connects to a straight key, paddle, an external
electronic keyer, or an external keypad with a
3.5 mm (1/8 inch) stereo plug.
5microUSB PORT (TYPE-B) [microUSB]
(p. 13-3)
Connects to an external power source, a PC,
or other USB device.
6ANTENNA CONNECTOR [ANT] (p. 13-3)
 Connecttoa50ΩTypeBNCcoaxconnector.
7SPEAKER-MICROPHONE CONNECTOR
[SP/MIC] (p. 13-3)
Connect a speaker microphone or headset.
(SP: 3.5 mm (1/8 inch), MIC: 2.5 mm )
LConfirm that the transceiver is OFF before
connecting or disconnecting optional equipment.
8GROUND TERMINAL [GND] (p. 13-2)
Connect to ground to prevent electrical
shocks, TVI, BCI, and other problems.
9microSD CARD SLOT [microSD CARD]
(p. 6-1)
Insert a microSD card (user supplied).
6
8
7
9
1
2
3
4
Right side panel Left side panel
1[PTT] SWITCH
Hold down to transmit, release to receive.
NOTE: To maximize the readability of your
signal, hold the microphone 5 to 10 cm (2 to
4 inches) from your mouth, and then speak
at your normal voice level.
2[A] KEY
Push to activate the assigned function of the
[A] key. (Default: Home CH)
[B] KEY
Push to activate the assigned function of the
[B] key. (Default: VFO/MEMO)
3
z Push to change the operating frequency or
Memory channel.
z Hold down to continuously change the
frequency or Memory channel.
TIP: You can change the assigned function of the
[▲],[▼],[A],and[B]keysinthefollowingitem.
»
SET > Function > Remote MIC Key
Speaker Microphone
1
2
3
Mic element
5
