Icom IC-705 - FUNCTION Screen; FUNCTION Screen List

P.AMP/ATT P.AMP AGC*
2
NOTCH*
2
OFF OFF FAST OFF
P.AMP1 ON MID AN
P.AMP2 SLOW MN
ATT*
1
NB*
2
NR*
2
SPLIT*
3
VOX*
2
OFF OFF OFF OFF
ON ON ON ON
BKIN*
2
TONE*
2
OFF OFF DTCS (T)
BKIN TONE TONE (T)/DTCS (R)
F-BKIN TSQL DTCS (T)/TSQL (R)
DTCS TONE (T)/TSQL (R)
D.SQL*
2
COMP TBW 1/4
OFF OFF WIDE OFF
DSQL ON MID ON
CSQL NAR
MONI*
2
DUP*
2
TUNER*
4
MAX TX PWR
OFF OFF OFF 0.5 W
ON DUP– ON 1 W
DUP+ 2.5 W
5 W
10 W
2-6
BASIC MANUAL
PANEL DESCRIPTION
2
2

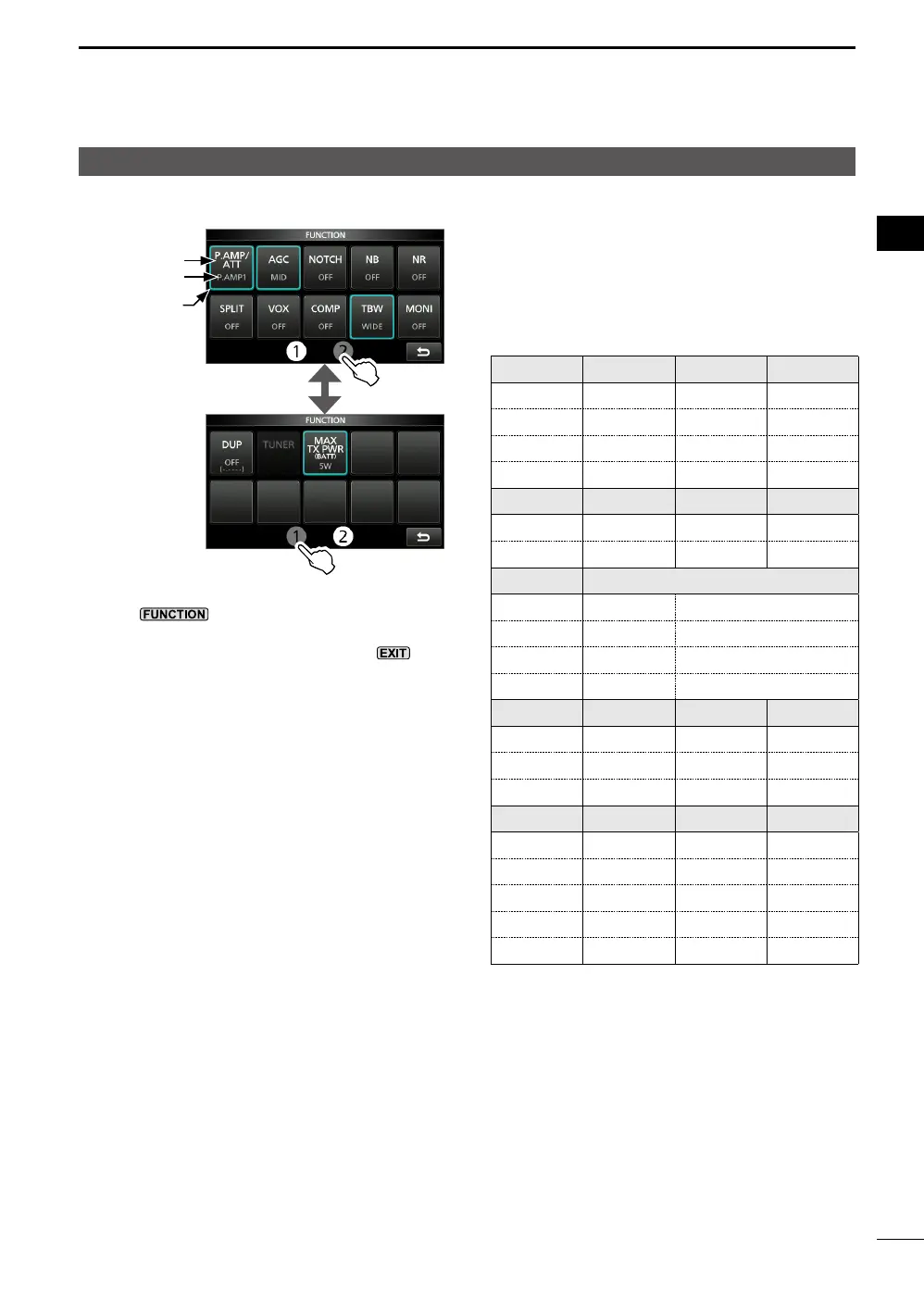

DFUNCTION screen
FUNCTION screen list
*
1
Touch for 1 second to select the function.
*
2
Touch for 1 second to open its function menu.
*
3
Touch for 1 second to turn ON the Quick Split
function.
*
4
Touch for 1 second to start manual tuning.
Function name
Status
Lights blue or
orange when in use
z Push to open the FUNCTION
screen in the selected mode.
LTo close the FUNCTION screen, push .
LTouching [1] or [2] at the bottom of the screen
selects FUNCTION screen 1 or 2.
Touch screen display
