SCOPE OPERATION
4-2
Spectrum scope screen (Continue)
D Setting the span
Set the frequency range around the receive frequency.
Settable span:
±2.5, 5.0, 10, 25, 50, 100, 250, 500 kHz, 1.0 and 2.5 MHz.

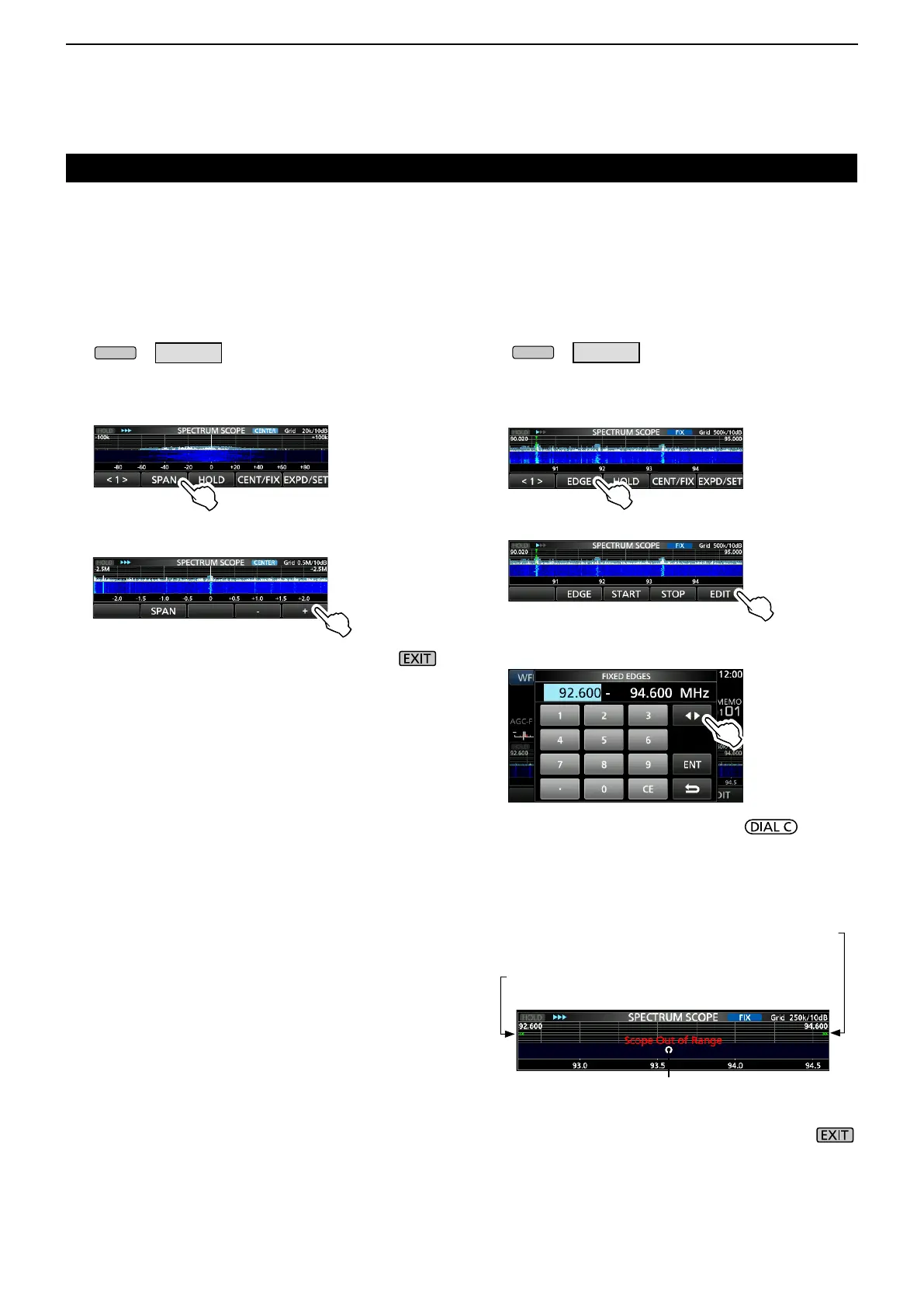

1. Open the SPECTRUM SCOPE screen.
MENU
»
SCOPE
2. Touch [CENT/FIX] to select the Center mode.
• Each touch changes between the Center and Fixed mode.
3. Touch [SPAN].
4. Touch [–] or [+].
• The span range changes.
5. To exit the SPECTRUM SCOPE screen, push
several times.
D Setting the range
The signals within a specied frequency range are
displayed.
Settable range: 0.010 ~ 3000.000 MHz.
1. Open the SPECTRUM SCOPE screen.
MENU
»
SCOPE
2. Touch [CENT/FIX].
• Each touch changes between the Center and Fixed mode.
3. Touch [EDGE].
4. Touch [EDIT].
5. Touch [] to select the upper or lower edge.
• The selected frequency edge is highlighted.
6. Touch the numeric keys, or rotate to
change the frequency, then touch [ENT].
L When the operating frequency moves outside
the upper or lower Edge frequency, “<<” or “>>”
is displayed in the upper side corners of the
SPECTRUM SCOPE screen.
7. To exit the SPECTRUM SCOPE screen, push
several times.
"<<" blinks when the frequency is outside
the lower edge (Example: 92.600).
">>" blinks when the frequency is outside
the higher edge (Example: 94.600).
When the frequency goes further away,
“Scope Out of Range” is displayed.
