16-2
[REMOTE]
Used to remotely controls the receiver with
the CI-V format data.
(3.5 mm, 1/8 in (d))
L You can download the USB driver and installation
guide from the Icom website.
http://www.icom.co.jp/world/support/download/rm
In the remote control mode, push [LOCAL] to return to the normal
(Local) mode (LOCAL LED turns OFF).
*Except
, and .
Remote connection example with a PC
[EXT-SP]
Connects to an external speaker such as
the optional SP-39AD.
(3.5 mm, 1/8 in (d))
• Output impedance: 4 ~ 8 Ω
• Output level: More than 2 W at 10% distortion into an 8
Ω load.
[DC IN]
Connects to the optional SP-39AD.
When SP-39AD or AD-55NS is connected,
connect the supplied DC short connector to [DC13.8V].
[DC13.8V]
Accepts the regulated DC power for
13.8 V DC (±15%), through the
supplied DC power cable.
WARNING! NEVER reverse the DC power cable
polarity (Red=
, Black= ).
[ANT 1]
• Frequency range: 10 kHz ~ 3000 MHz
• Input impedance: 50 Ω (unbalanced)
L When the receive frequency is set to between 10 kHz and
29.999999 MHz, you can select the antenna on [ANT 1] ~ [ANT
3]. (p. 3-3)
[ANT 2]
• Frequency range: 10 kHz ~ 30 MHz
• Input impedance: 50 Ω (unbalanced)
[ANT 3]
LFor a long wire antenna.
• Frequency range: 10 kHz ~ 30 MHz
• Input impedance: 400 ~ 500 Ω (unbalanced)
[AUX]
A reserved terminal. No internal connection.
[PHONES]
Connects to standard stereo headphones.
(3.5 mm, 1/8 in (d))
• Output impedance: 8 ~ 16 Ω
• Output level: More than 50 mW (into an 8 Ω load)
SO-239
IC-R8600
USB cable (A-B type)
PC
16

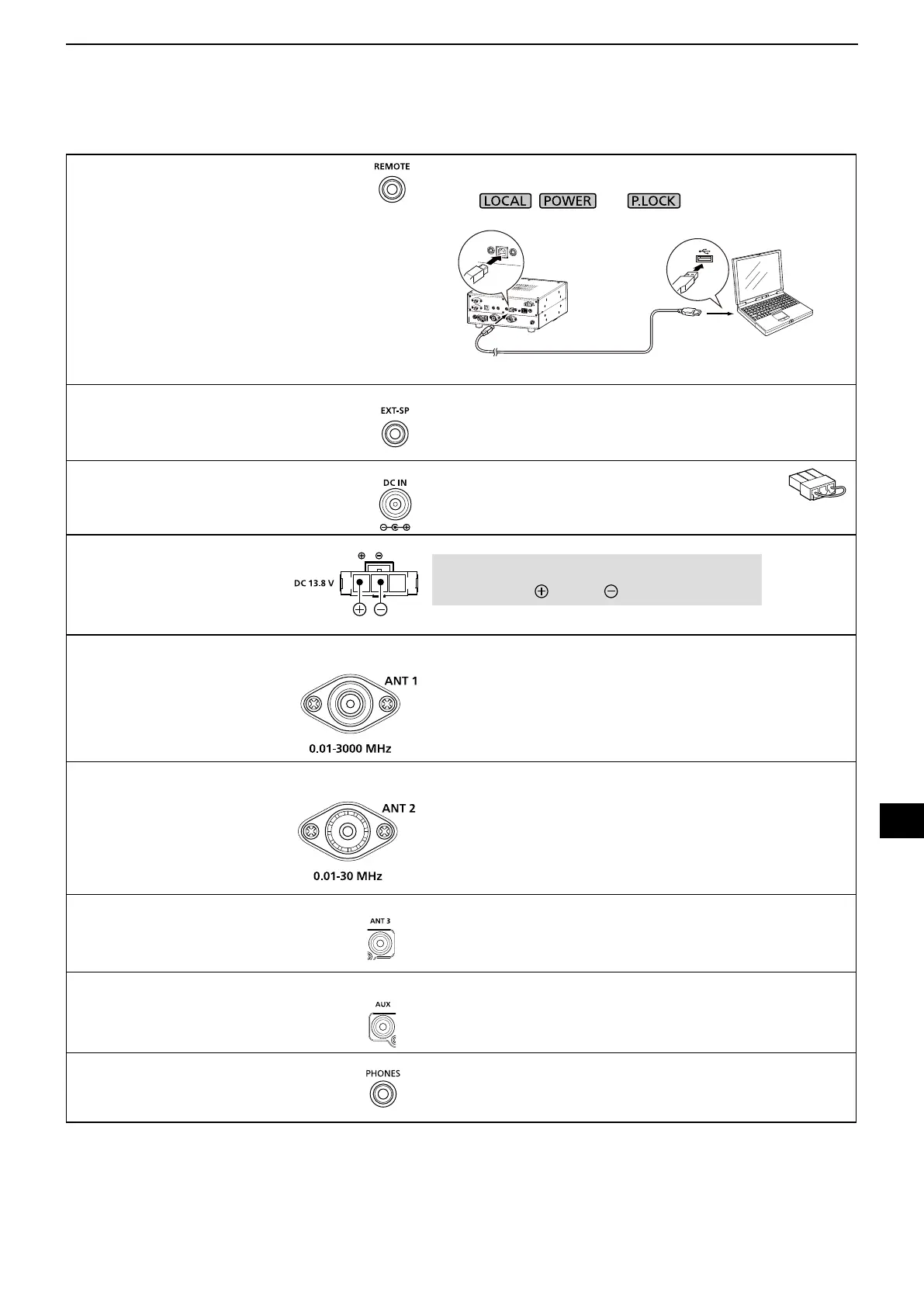

CONNECTOR INFORMATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
View from the rear
N type
RCA type
RCA type
