Icom IC-T70A - Specific Charger Models: BC-192 and BC-193

14
3
BATTERY CHARGING
New2001
3

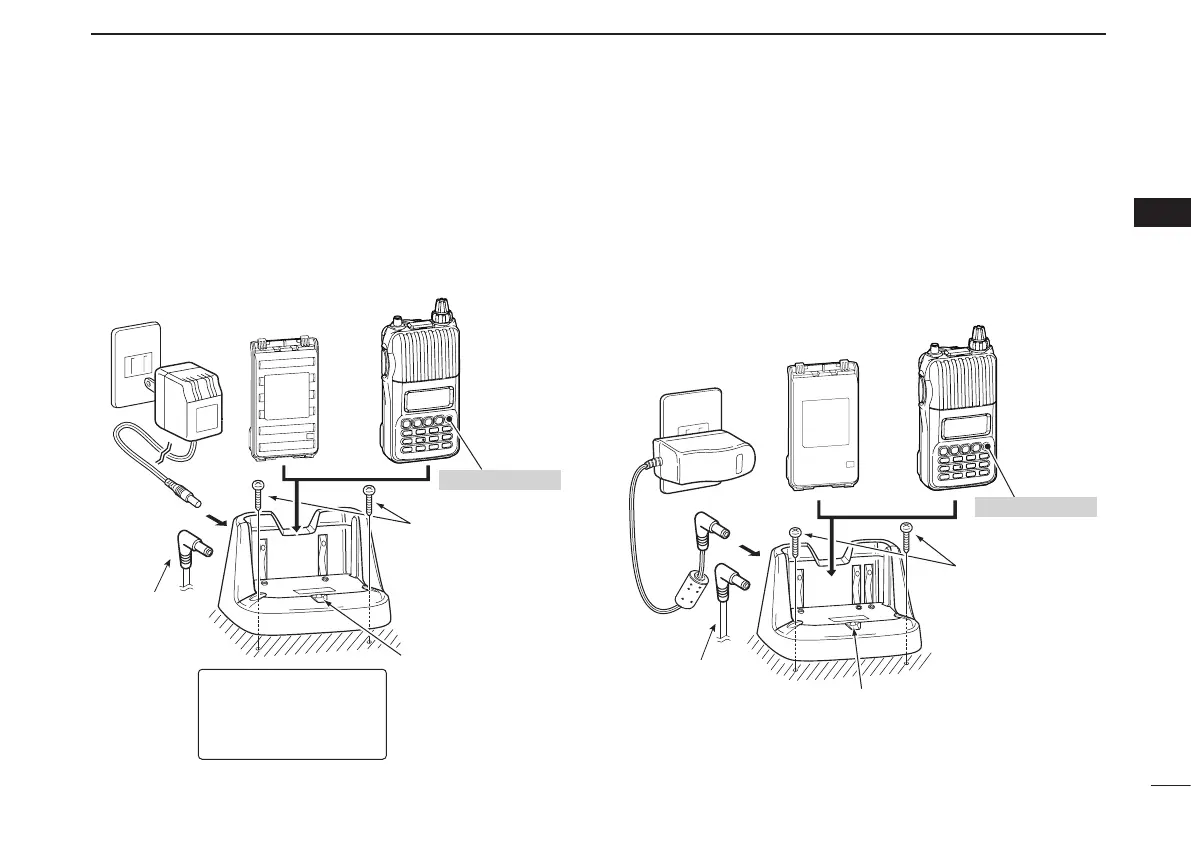

D Regular charging with the BC-192
The BC-192 provides regular charging of only the BP-264 Ni-MH
battery pack. Never use it to charge any other battery pack.
Charging time (with the BC-147S/BC-206S): Approx. 16 hours
The following item is additionally required:
•TheACadapterBC-147S/BC-206S(notsuppliedwithsomever-
sions) or the OPC-515L DC power cable.
Charge indicator
• Lights green while charging.
NOTE:
The charger indicator will
not go out even after a
battery pack is fully charged.
Charging time period differs
depending on the input voltage.
12 V : Approx. 36 hours
13.8 V : Approx. 21 hours
16 V : Approx. 16 hours
The optional
OPC-515L (for
a DC power
source) can be
used instead of
the AC adapter.
Transceiver
Battery pack
Screws*
(Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is
recommended to
secure the charger.
Tu rn power OFF
BC-147S/BC-206S
D Rapid charging with the BC-193
The BC-193 provides rapid charging of only the BP-265 Li-
Ion battery pack. Never use it to charge any other battery
pack.
Charging time: Approx. 2.5 hours
The following item is additionally required:
•TheACadapterBC-123S(notsuppliedwithsomeversions)orthe
OPC-515L or CP-23L DC power cable.
Transceiver
Tu rn power OFF
Battery pack
BC-123S
The optional OPC-
515L (for a DC power
source) can be used
instead of the AC
adapter.
Charge indicator
• Lights orange : While charging
• Lights green : Charging is completed
• Blinks red : Charging error has occured
Screws*
(Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is
recommended to
secure the charger.
