Icom IC-T70A - Function Display Icons and Indicators

New2001
6
2
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

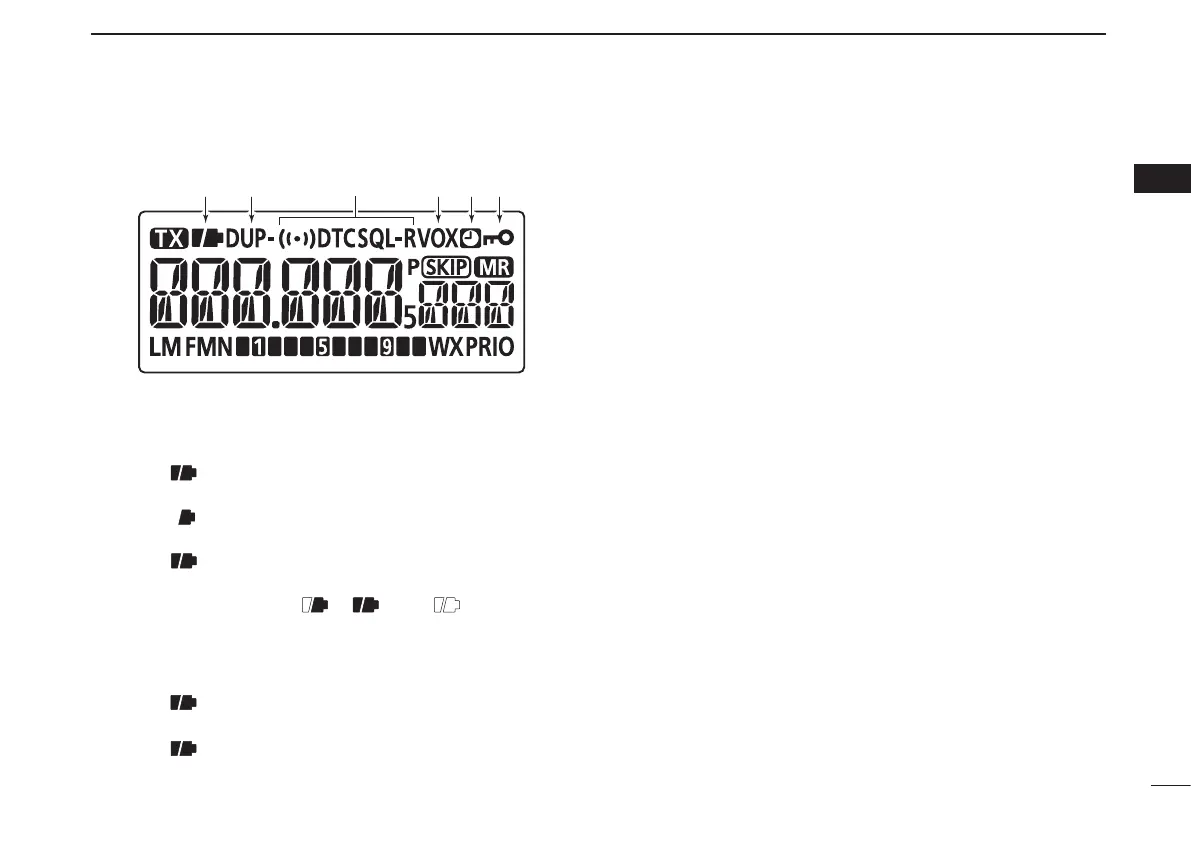

■ Function display
ytrq we
q BATTERY ICON (pp. 11, 12)
❍When the BP-264 or BP-265 is attached
➥ “
” (battery icons) appear when the battery pack
has ample capacity.
➥ “
” appears when the battery pack has less than
half capacity.
➥ “
” blinks before the battery pack is exhausted.
The battery pack must be charged.
➥ The icons show “
,” “ ” and “ (disappears)”
in sequence while charging the BP-264 Ni-MH bat-
tery pack.
❍When the BP-263 is attached
➥ “
” (battery icons) appear when the batteries have
ample capacity.
➥ “
” blinks before the batteries are exhausted. The
batteries must be replaced.
w DUPLEX ICON (p. 26)
“ DUP” appears when plus duplex is selected, “DUP–” ap-
pears when minus duplex is selected.
e TONE ICON
➥ “ T” appears while the subaudible tone encoder is in
use. (p. 24)
➥ “ T SQL” appears while the tone squelch function is in
use. (p. 70)
➥ “ T SQL-R” appears while the reverse tone squelch func-
tion is in use. (p. 70)
➥ “ DTCS” appears while the DTCS squelch function is in
use. (p. 70)
➥ “ DTCS -R” appears while the reverse DTCS squelch
function is in use. (p. 70)
➥ “ S” appears with the “T SQL” or “DTCS” indicator
while the pocket beep function (with CTCSS or DTCS)
is in use. (p. 70)
r VOX ICON (p. 80)
Appears when the VOX function is in use.
t AUTO POWER OFF ICON (p. 59)
Appears when the Auto Power OFF function is ON.
y KEY LOCK ICON (p. 21)
Appears when the key lock function is activated.
