Icom IC-T70A User Manual

70
10
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Tone/DTCS squelch
q Set a desired operating frequency, and then set a
CTCSS tone or DTCS code.
w Push and hold [TONE](0) for 1 sec. repeatedly to activate
the tone or DTCS squelch. (T SQL or DTCS)
•Subaudibletone encoder “T,”pocket beep (tonesquelch)
“ST SQL,” tone squelch “T SQL,” DTCS beep “SDTCS,”
DTCS squelch “DTCS,” tone squelch reverse “T SQL-R,” DTCS
squelch reverse “DTCS-R” and no tone operation are select-
able in order.
•Whilecontinuingtopush[TONE](0), rotate [DIAL] also selects
a tone setting.
e Operate the transceiver in the normal way.
r When the received signal includes a matching tone/code,
the squelch opens and the signal can be heard.
When the pocket beep function is activated, the trans-
ceiver also emits beep tones and blinks “S.”
•Whenthereceivedsignal’stone/codedoesnotmatch,tone/
DTCS squelch does not open, however, the S-indicator shows
signal strength.
•Toopenthesquelchmanually,pushandhold[MONI](BAND).
t Push [PTT] to answer or push and hold [MONI](BAND)
for 1 sec. to stop the beeps and blinking.

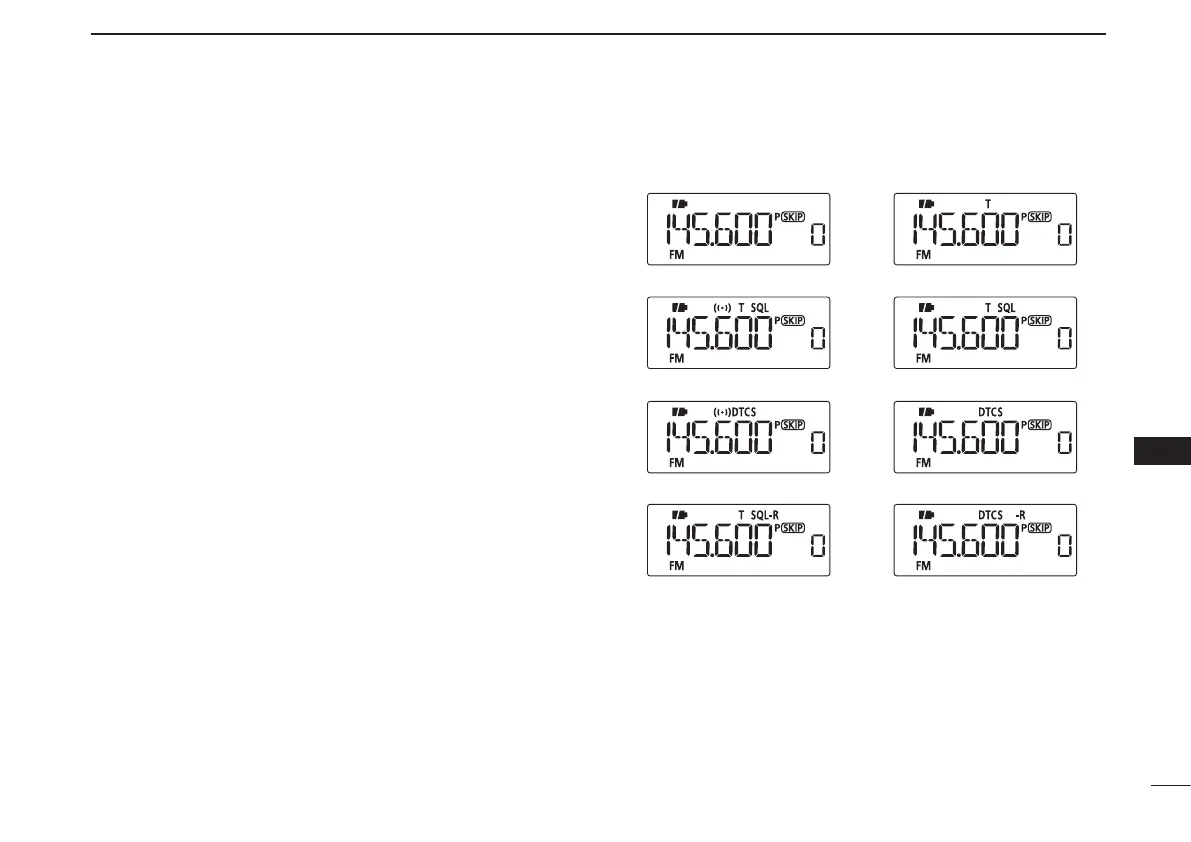

No tone operation Subaudible tone encoder
To ne squelchPocket beep
DTCS beep
DTCS squelch
Tone squelch (reverse) DTCS squelch (reverse)

Icom IC-T70A Specifications

General

Operating frequency	144 – 148, 440 – 450 MHz
Display type	LCD
Backlight display	Yes
Antenna connector type	FA-S270C
Number of antenna connectors	1
Battery type	BP-265
Product color	Black
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	30 mm
Width	58 mm
Height	111 mm
Weight	380 g
